2013high quality concrete block forming machine/ brick making machine

  Main Configuration

Name

Quantity

Main Machine

1set

Concrete Feeder

1set

Mould

1set

Pallets Feeder

1set

Pallets Conveyor

1set

Belt Conveyor(6m)

1set

JS500Mixing Machine

1set

Pallet(1100x700x30mm)

15pics

Trolleys

4sets

                                            Optional

Colour Feeder(For pavers)

1set

Pallet(1100x700x30mm)

1,000pics

                                   Technical Specifications

Standard

JC/T920-2003

Dimension

2900x1600x2200mm

Space of Ground

3300 square meters

GrossWeight

6T

Moulding Way

Hydraulic and vibration

Moulding Cycle

16-25Seconds/cycle

Vibration Force

70KN

Vibration Motor Power

5.5Kw

Motor Power

24.7Kw

Vibration Frequency

3500cycles/minute

Water Consumption

4-8T

Power

60Kw

Number of Workers

3-5Workers

Pallet Size

1100x700x30mm

Main Materials

Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes

Brick types

Hollow blocks,Solid bricks,Pavers,Curbstones,Slope blocks,Slabs, Interlock bricks and so on.

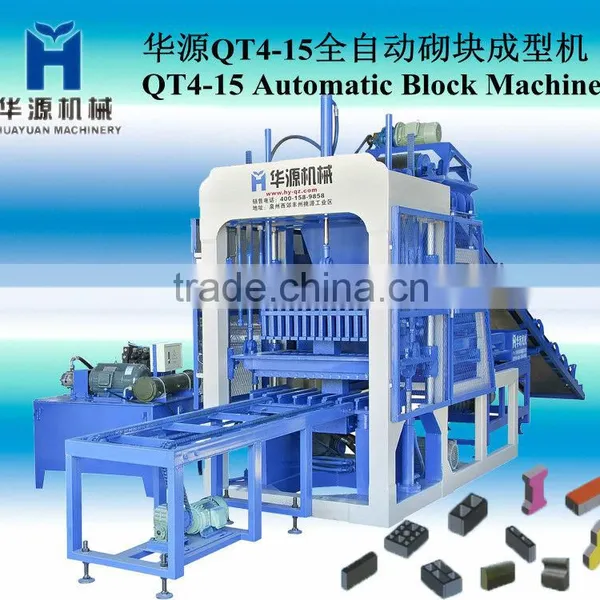

Good Reasons to choose QT4-15 Full-automatic block machine

High Production

Solid Brick

 240x115x53mm

32Pics/Mould

(8hours) 45000-57000Pics

Hollow Block 240x115x90mm

16Pics/Mould

(8hours) 18500-20000Pics

Hollow Block 390x190x190mm

5Pics/Mould

(8hours) 5800-6300Pics

Paving Block 200x100x60mm

18Pics/Mould

(8hours) 21000-23000pics

Multi-Functional

The machine can make different products by changing different moulds,such as Hollow blocks,Solid bricks,Pavers,Curbstones and so on.

Power-Saving

when the machine is working,only the host machine is always be on,other parts only works at regular intervals.The switches and electronic is using CHNT or Omron brand.

Quick Speed

The male mould and female mould inserts and pulls out quickly with high-powered hydraulic pump.Meanwhile,all the processes like moulding materials into blocks and preparing materials are finished at the same tim and the pallets moving is quick.

High Quality of Mould

Mould is an important part of machine.The steel is standard materials for making moulds.Mould is processed by heat treatment,carburizing,back fire, polishing and so on.And the geometry of the moulds is standard too.

Easy Operation

The host machine is operated by one person,and other processes will be completed automatically by electronics.Because pressure of viberating is high,the materials needs less water.So the machine still can work under low temperature.

Quick Stacking

The bricks made by this machine is high density.The wet bricks could be stacked if raw materials is good.So you can save pallets and land.

Pallets-Saving

The wet bricks could be stacked if raw materials is good since the special design and advanced moulding mode with unique exhaust technique.So you can save cost for buying pallets.The finished bricks has high density and increased compressive and folding strength.The strength could be increased 20%-25% with same proportion of raw materials.(the strength of brick is 10--25Mpa for different raw materials).

                                                              Notes:

I

Installation and Training:We will send technicians to buyer's factory to install the machine and train operators.Buyer is responsible for air-ticket,visa,food,accommodation,transportation and security. It is free in 10 working days (50USD /person/day for extra days).

II

All kinds of moulds can be produced according to customer's drawings.

III

Payment Terms: 30% as advance paid by T/T,70% before delivery by T/T or by LC at sight.

IV

Quotation Validity:60days.

V

Delivery Time:25-30days

VI

Guarantee Time:1 Year
