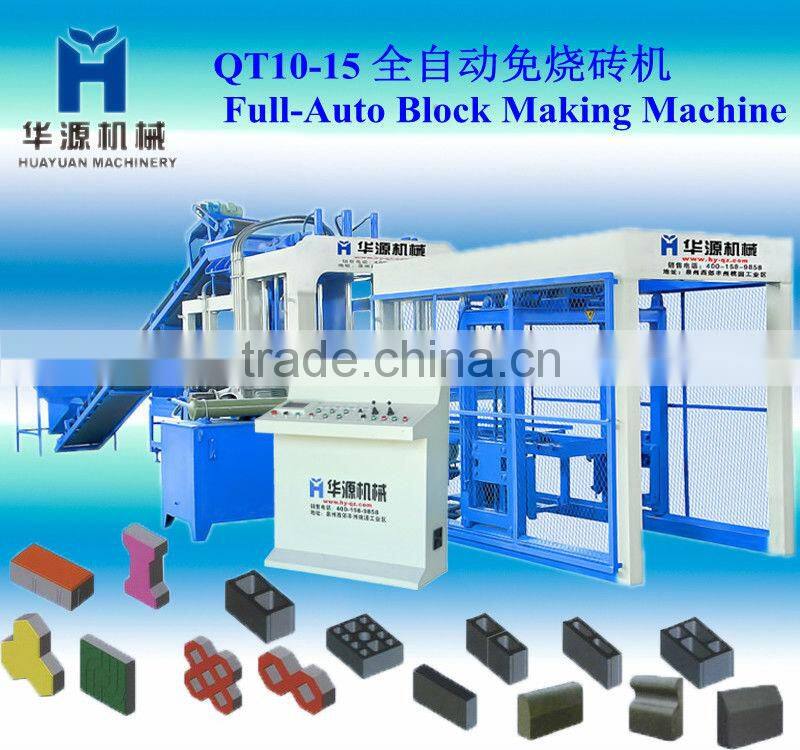

QT10-15 concrete block making machine, paver brick making machne from china

Specifications

concrete block making machine
hollow block making machine
cement block making machine
double mouding system



1,Main technical parameters



Cycle time:  15-20(s)	Vibration Type: hydraulic or moto
Total Power:  36.7(kw)	Vibration Force: 105(KN)
Vibration Frequency:  3800-4500(times/sub)	Gross Weight:  12800(kg)
Pallet size :  1100×880×25mm	Machine Size:11500×4050×2800(mm)
Rated Pressure:  31.5(mpa)
Block Specification :	Production per shift (8 hours)
390×190×190mm     10(pcs)	14,400-19,200(pcs)
240×115×53mm       51(pcs)	73,440-97,920(pcs)
240×115×90mm       24(pcs)	34,560-46,080(pcs)
200×100×60mm       31(pcs)	about 44,640(pcs)



2,Main Technical Specifications:



A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;

B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;

C. Forming production faster and with higher compactedness ;

D. High-heat treatment special technology (to make the mould more durable and more firm) .



Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.

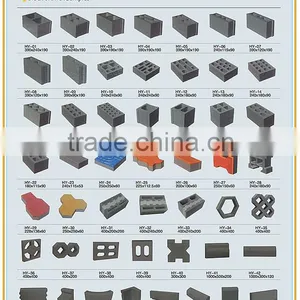

Multiple uses. It can produce all types of standard building blocks by changing mould.

A, Multi-holes block and hollow block ;

B, Ceramsite heat preservation block;

C, Composite heat preservation concrete block.
