Home > Electrical & Electronics > Sensor > Pressure Sensor > Ultrasonic Flow SensorUltrasonic TransducerUltrasonic Flow SensorWater Flow Me1.2MHz Ultrasonic Transducer for Liquid Flow Meter

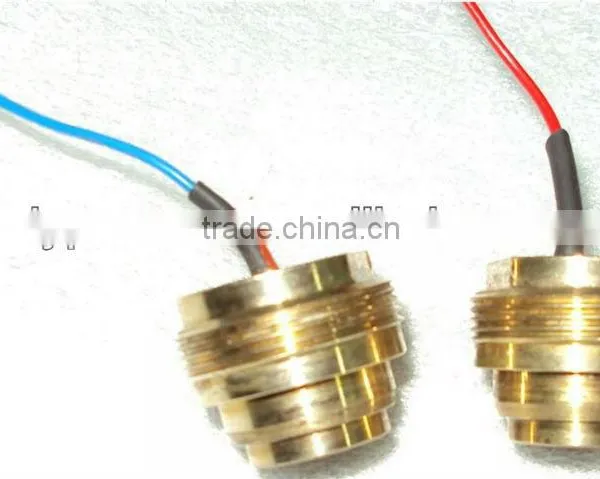

Ultrasonic Flow SensorUltrasonic TransducerUltrasonic Flow SensorWater Flow Me1.2MHz Ultrasonic Transducer for Liquid Flow Meter
US$ 18.93 - 40.46
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL005
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.0MHz Ultrasonic Flow SensorUltrasonic Flow SensorWater Flow Meter Sensors1.0MHz Ultrasonic Transducer for Liquid Flow SensorUS$ 16.45 - 27.63MOQ: 100 Pieces -
Hot Selling40KHz & 210KHz Dual Frequency Depth Measurement Ultrasonic TransducerHighAccurancy Ultrasonic Transducer in LiquidUS$ 93.04 - 145.64MOQ: 100 Pieces
-
Hot Sell1.2MHz Underwater Ultrasonic Transducer for Flow MeterHigh Temperature Press Transducer for Ultrasonic Flow MeasurementUS$ 21.04 - 40.46MOQ: 100 Pieces
-
200KHz Ultrasonic Transducer for Water Depth MeasuringUltrasonic Transducer for Distance MeasurementWaterproof Ultrasonic SensorUS$ 16.99 - 29.13MOQ: 200 Pieces
-
200KHz Ultrasonic Short Range Finder TransducerUltrasonic Sensors0.10m - 2m Ultrasonic Transducer for Distance MeasurementUS$ 15.87 - 24.27MOQ: 200 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL005
Usage
Other, Liquid Flow Sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
This ultrasonic liquid flow sensor with features of high sensitivity and sound pressure,small size,light-weight and low power;Feature:
1) Dual frequency,small size and light-weight;
2) High sensitivity and high sound pressure;
3) Low power consumption;
4) High reliability;
Technical parameters:
Center resonant frequency (kHz) |
1.2MHZ±5% |
Bandwidth |
±0.1MHz |
|
Sensitive 0 dB=3 Vp-p, Cycle: 8, Distance: 4cm(self-transmit self-received); |
-34dB min |
Blind zone |
<2 cm |
Launch angle beam (-3dB full angle) |
8° |
Electrostatic capacitance |
1000PF±20% |
Minimum parallel impedance |
130Ω±30% |
Maximum working voltage (Pulse wave - 2% duty cycle) |
<150V |
Operating temperature |
0~95°C |
Maximum working pressure |
1.6MPa |
Protection class |
IP68 |
Housing material |
Brass |
Above tests were carried out in 25 ° C .
