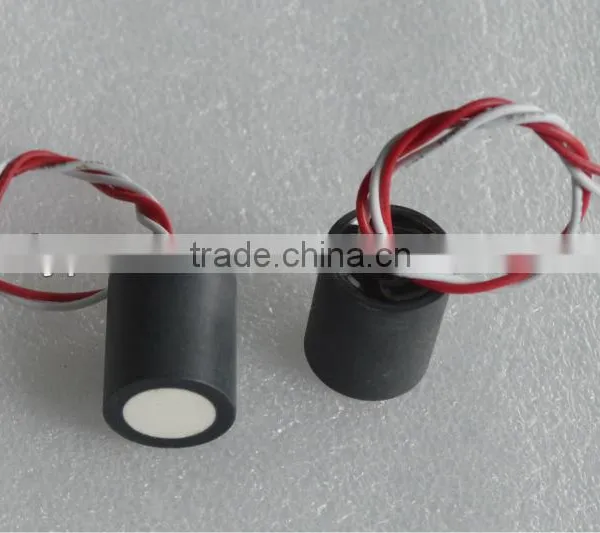

200KHz Ultrasonic Short Range Finder TransducerUltrasonic Sensors0.10m - 2m Ultrasonic Transducer for Distance Measurement
US$ 15.87 - 24.27
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL016
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200KHz Smaller Ultrasonic Water Level Sensor Probe200KHz Smaller Ultrasonic Sensor for Distance MeasurementUltrasonic TransducerUS$ 16.99 - 29.13MOQ: 200 Pieces -
200KHz Ultrasonic Transducer for Gas Flow MeterUltrasonic Air Flow Meter SensorPiezoelectric Gas Flow Ultrasonic TransducerUS$ 13.98 - 16.32MOQ: 300 Pieces
-
14KHz Ultrasonic Transducer for Long Distance Measurement14KHz Ultrasonic Obstacle Detection Transducer for CarUltrasonic SensorUS$ 232.21 - 279.13MOQ: 100 Pieces
-
22KHz Ultrasonic Transducer for Distance Measurement22KHz Long Range Ultrasonic SensorWide Range Ultrasonic Sensor in AirUS$ 174.74 - 234.63MOQ: 80 Pieces
-
30KHz Ultrasonic Transducer for Long Distance MeasurementUltrasonic Transducer for Distance Measurement in AirUltrasonic SensorUS$ 81.03 - 116.51MOQ: 80 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL016
Usage
Position Sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
It is a short range(0.10 m - 2 m) ultrasonic transducer,use in location,flow measurement,approach measurement,etc. It is a short range(0.10 m - 2 m) ultrasonic transducer,was widely used in location,flow measurement,approach measurement,traffic measurement, escape obstruction, robot,
etc.

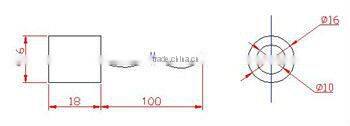

Structure diagram:
Technical parameters:
Center resonant frequency (kHz) |
200KHZ±4% |
Bandwidth |
16kHz |
|
Sensitive 0 dB=200 Vp-p, Cycle: 50, Distance: 20cm; |
-67dB min |
Detection distance |
0.10 m —2 m |
Blind zone |
<0.10 m |
Launch angle beam (-3dB full angle) |
14±2° |
Electrostatic capacitance |
400PF±20% |
Minimum parallel impedance |
350Ω±30% |
Maximum working voltage (Pulse wave - 2% duty cycle) |
<500V |
Operating temperature |
-20~80°C |
Protection class |
IP65 |
Housing material |
ABS |
Size (diameter * height, mm) |
Φ16 X 20 |
Cable length |
Could be customized(default as 20 cm) |
Weight |
10kg |
Above tests were carried out in 25 ° C .
