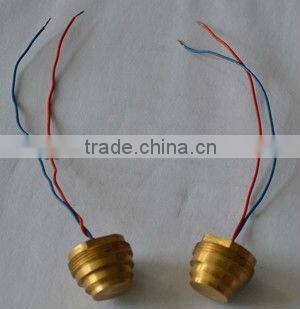

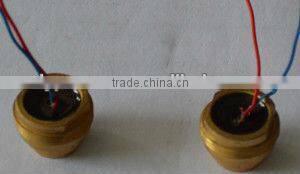

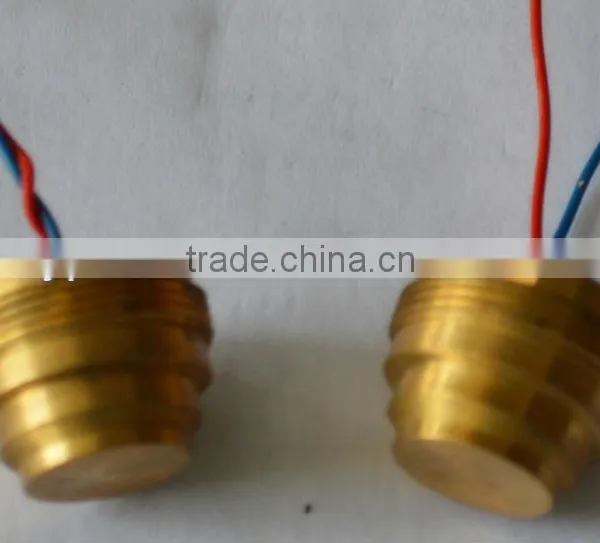

Hot Sell1.2MHz Underwater Ultrasonic Transducer for Flow MeterHigh Temperature Press Transducer for Ultrasonic Flow Measurement
US$ 21.04 - 40.46
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL005
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200KHz Ultrasonic Transducer for Water Depth MeasuringUltrasonic Transducer for Distance MeasurementWaterproof Ultrasonic SensorUS$ 16.99 - 29.13MOQ: 200 Pieces -
200KHz Ultrasonic Short Range Finder TransducerUltrasonic Sensors0.10m - 2m Ultrasonic Transducer for Distance MeasurementUS$ 15.87 - 24.27MOQ: 200 Pieces
-
200KHz Smaller Ultrasonic Water Level Sensor Probe200KHz Smaller Ultrasonic Sensor for Distance MeasurementUltrasonic TransducerUS$ 16.99 - 29.13MOQ: 200 Pieces
-
200KHz Ultrasonic Transducer for Gas Flow MeterUltrasonic Air Flow Meter SensorPiezoelectric Gas Flow Ultrasonic TransducerUS$ 13.98 - 16.32MOQ: 300 Pieces
-
14KHz Ultrasonic Transducer for Long Distance Measurement14KHz Ultrasonic Obstacle Detection Transducer for CarUltrasonic SensorUS$ 232.21 - 279.13MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL005
Usage
Other, flow sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
Specifications1) Ultrasonic transducer for flow meter;
2) Protection class: IP68;
3) Housing material: Brass;
Technical parameters:
Center resonant frequency (kHz) | 1.2MHZ±5% |
Bandwidth | ±0.1MHz |
Sensitive 0 dB=3 Vp-p, Cycle: 8, Distance: 4cm(self-transmit self-received); | -34dB min |
Blind zone | <2 cm |
Launch angle beam (-3dB full angle) | 8° |
Electrostatic capacitance | 1000PF±20% |
Minimum parallel impedance | 130Ω±30% |
Maximum working voltage (Pulse wave - 2% duty cycle) | <150V |
Operating temperature | 0~95°C |
Maximum working pressure | 1.6MPa |
Protection class | IP68 |
Housing material | Brass |
Above tests were carried out in 25 ° C .

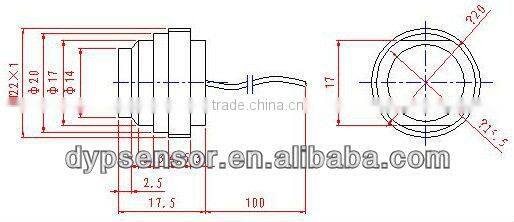

Structure diagram:
