Home > Electrical & Electronics > Sensor > Pressure Sensor > 200KHz Ultrasonic Transducer for Water Depth MeasuringUltrasonic Transducer for Distance MeasurementWaterproof Ultrasonic Sensor
200KHz Ultrasonic Transducer for Water Depth MeasuringUltrasonic Transducer for Distance MeasurementWaterproof Ultrasonic Sensor
US$ 16.99 - 29.13
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL004
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200KHz Ultrasonic Short Range Finder TransducerUltrasonic Sensors0.10m - 2m Ultrasonic Transducer for Distance MeasurementUS$ 15.87 - 24.27MOQ: 200 Pieces -
200KHz Smaller Ultrasonic Water Level Sensor Probe200KHz Smaller Ultrasonic Sensor for Distance MeasurementUltrasonic TransducerUS$ 16.99 - 29.13MOQ: 200 Pieces
-
200KHz Ultrasonic Transducer for Gas Flow MeterUltrasonic Air Flow Meter SensorPiezoelectric Gas Flow Ultrasonic TransducerUS$ 13.98 - 16.32MOQ: 300 Pieces
-
14KHz Ultrasonic Transducer for Long Distance Measurement14KHz Ultrasonic Obstacle Detection Transducer for CarUltrasonic SensorUS$ 232.21 - 279.13MOQ: 100 Pieces
-
22KHz Ultrasonic Transducer for Distance Measurement22KHz Long Range Ultrasonic SensorWide Range Ultrasonic Sensor in AirUS$ 174.74 - 234.63MOQ: 80 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL004
Usage
Level Sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
This ultrasonic transducer with 200KHz could be used for river, lake depth measurement,fish-finder,etc.This ultrasonic transducer with 200KHz could be used for river, lake depth measurement,fish-finder,etc.
Physical map:

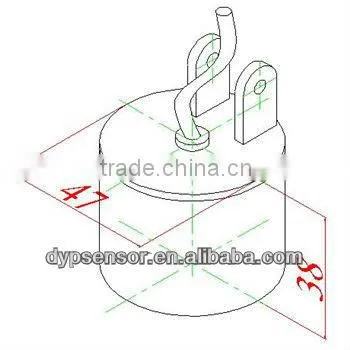

Structure diagram :
Application:
River, lake depth measurement,fish-finder
Technical parameters:
Frequency (Fr) |
200KHZ±3 KHZ |
Sensitive element material |
PZT-4 |
Launch angle beam (-3dB) |
600±30% |
|
Shunt impedance(in water) Resistance(Ω) |
500±30% |
Static capacitance(pf) |
2100±15% |
Dimension (diameter * height mm) |
38 X 47 |
Cable length |
Could be customized(default as 0.2m) |
Material |
PZT-4 |
Could measure the depth of water more than 60 m.
