Home > Electrical & Electronics > Sensor > Pressure Sensor > 200KHz Smaller Ultrasonic Water Level Sensor Probe200KHz Smaller Ultrasonic Sensor for Distance MeasurementUltrasonic Transducer
200KHz Smaller Ultrasonic Water Level Sensor Probe200KHz Smaller Ultrasonic Sensor for Distance MeasurementUltrasonic Transducer
US$ 16.99 - 29.13
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL003
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200KHz Ultrasonic Transducer for Gas Flow MeterUltrasonic Air Flow Meter SensorPiezoelectric Gas Flow Ultrasonic TransducerUS$ 13.98 - 16.32MOQ: 300 Pieces -
14KHz Ultrasonic Transducer for Long Distance Measurement14KHz Ultrasonic Obstacle Detection Transducer for CarUltrasonic SensorUS$ 232.21 - 279.13MOQ: 100 Pieces
-
22KHz Ultrasonic Transducer for Distance Measurement22KHz Long Range Ultrasonic SensorWide Range Ultrasonic Sensor in AirUS$ 174.74 - 234.63MOQ: 80 Pieces
-
30KHz Ultrasonic Transducer for Long Distance MeasurementUltrasonic Transducer for Distance Measurement in AirUltrasonic SensorUS$ 81.03 - 116.51MOQ: 80 Pieces
-
1.0MHz Ultrasonic Transducer for Liquid Flow MeterUltrasonic Sensor for Water Flow Meter1.0MHzWaterproof Ultrasonic Flow SensorUS$ 14.12 - 14.89MOQ: 200 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL003
Usage
Level Sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
This ultrasonic transducer with 200KHZ+/-4 KHZ,application in locating,approach measurement,escaped obstruction ,fish finder,etcThis ultrasonic transducer with 200KHZ±4 KHZ,application in locating,approach measurement,escaped obstruction ,fish finder,etc.

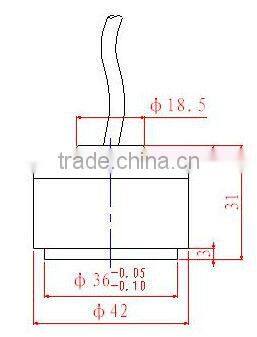

Structure diagram :
Application:
1,Locating ; 2,Approach measurement; 3,Escaped obstruction ; 4,Fish finder;
Technical parameters:
Frequency (Fr) |
200KHZ±4 KHZ |
Sensitive element material |
PZT-4 |
Launch angle beam (-3dB) |
14±1° |
Transmitting response |
161dB/V |
Transmitting response |
-190dB |
|
Shunt impedance(in air) Resistance(Ω) |
500±30%(Ω) |
Static capacitance(pf) |
1500±15%(includes cable) |
Rated power |
200W |
Operating temperature |
-20~70°C |
Housing material |
ABS |
Cable length |
6 m |
Weight |
30g |
