Home > Electrical & Electronics > Sensor > Pressure Sensor > 2-500cm Range Ultrasonic Sensor Distance Measuring ModuleSensorsAutomatically Measure Ultrasonic Distance Measuring Module

2-500cm Range Ultrasonic Sensor Distance Measuring ModuleSensorsAutomatically Measure Ultrasonic Distance Measuring Module

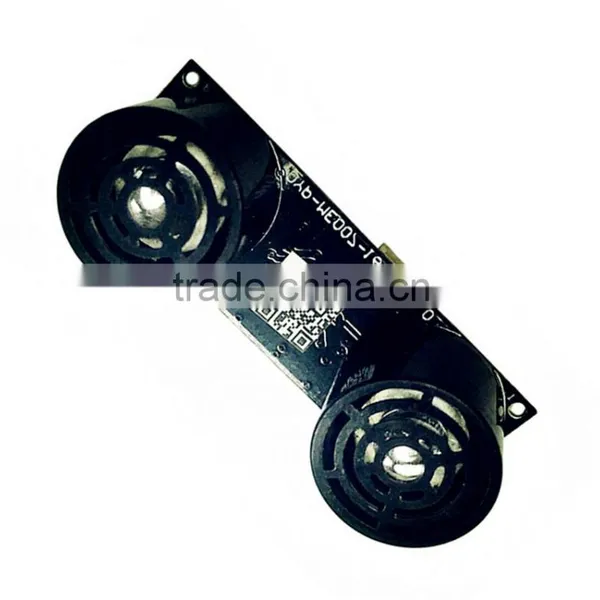

2-500cm Range Ultrasonic Sensor Distance Measuring ModuleSensorsAutomatically Measure Ultrasonic Distance Measuring Module photo-1

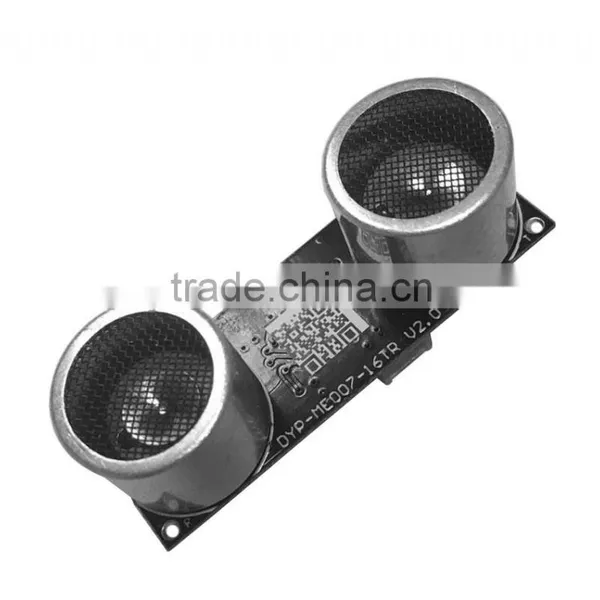

2-500cm Range Ultrasonic Sensor Distance Measuring ModuleSensorsAutomatically Measure Ultrasonic Distance Measuring Module photo-2

US$ 7.15 - 8.75 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Brand Name:

DYP

Model Number:

DYP-ME007-16TR*

Usage:

Level Sensor

Contact Supplier Request Quote Chat Now

Shenzhen Dianyingpu Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name DYP

Model Number DYP-ME007-16TR*

Usage Level Sensor

Theory Ultrasonic Sensor

Output Digital Sensor

Advantage:

1) Small blind zone;

2) Strong anti-interference;

3) Data output, stable and reliable;

4) Lower power dissipation;

5) Fast response time;

6) Automatic calibration;

7) Strong antistatic;

8) Wide working temperature;

9) High measurement accuracy;

10) Auto-output distance value, release the processor of user;

11) Control the trigger pin,could choose the real-time value or processing value output mode, the application is more flexible;

Features:

1) Blind zone: more than 3cm;

2) Operating voltage: 5V;

3) Current : less than 20mA;

4) Automatically measure;

5) UART auto-output;

6) Work cycle: 50ms-100ms;

7) Center frequency: 40KHz;

8) Temperature compensation;

9) Working temperature: -15 degree centigrade to +60 degree centigrade ;

10) Storage temperature: -25 degree centigrade to +80 degree centigrade ;

11) Measurement accuracy: +/- 1cm+(S*0.3%) (S is measured value);

12) Electrostatic protective design, the enclosure of sensor and the I/O pin are added the electrostatic protection device,up to the standard of IEC61000-4-2;

Application:

1) For the UAV fixed high;

2) Robot obstacle avoidance;

3) Liquid level measurement;

4) Detect the objects close to and the existence of external objects;

5) Parking management system;

Basic parameter:

Parameters item	16TRP	16TRH/16TRA	Unit	Remark
Input voltage	5	5	V	DC
Working current	less than or equal to 20	less than or equal to 20	mA
Blind zone distance	less than or equal to 3	less than or equal to 3	cm
Flat object range	2-500	2-500	cm	1)
Work cycle	50-100	50-100	ms
Room temperature measurement precision	plus or minus 1+(S*0.3 percent)	plus or minus 1+(S*0.3 percent)	cm	1)
The center frequency of sensor	40K plus or minus 1.0K	40K plus or minus 1.0K	Hz
ESD	plus or minus 4 or plus or minus 8	plus or minus 4 or plus or minus 8	KV	2)
Detection of axial stability	plus or minus 2.5	plus or minus 2.5	degree	3)
Net weight	5.6	6.4	g
Working temperature	15 to 60	15 to 60	degree centigrade
Storage temperature	25 to 80	25 to 80	degree centigrade
Working humidity	less than or equal to 80%	less than or equal to 80%	RH	4)
Storage humidity	less than or equal to 90%	less than or equal to 90%	RH	4)
