Description:

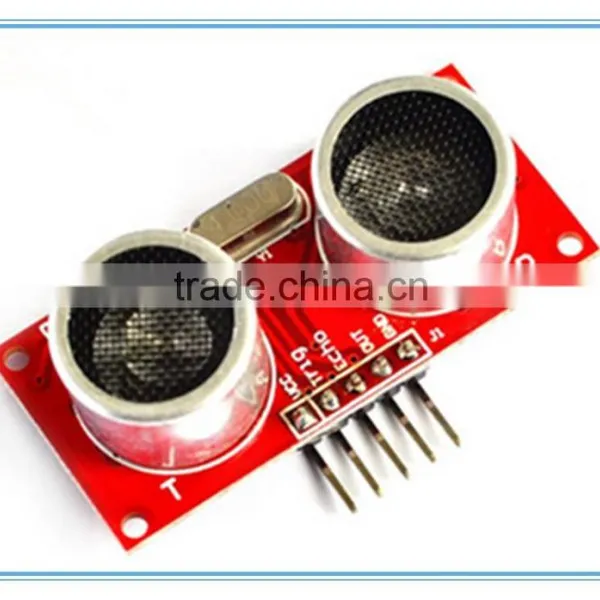

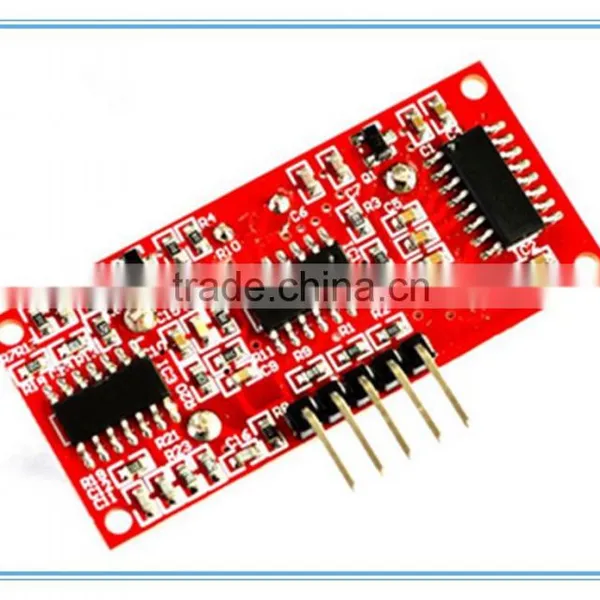

1 This module includes ultrasonic transmitters, receiver and control circuit;
2 Its stable performance and high ranging accuracy make it a popular module in electronic market;
3 There are 5 pins out of the module, VCC, Trig, Echo, GND and OUT;
4 Best performance in 30 degrees angle;
5 Electronic brick compatible interface;
6 Dual transducer;
Specifications:
1Voltage: DC 5V;
2Current: 15mA;
3Ultrasonic Frequency: 40K Hz;
4Maximal Range: 500cm;
5Minimal Range: 2cm;
6Resolution: 1cm;
7Response time: 100MS;
8Output signal: 5V TTL level;
9Trigger Pulse Width: 10μs;
10Operating temperature: -10--+60degree;
11Storage temperature: -20--+80degree;
12Dimension (L x W x H): Approx. 44 x 20 x 18 mm;
Note:
It also could be customized as customers' requirement !!!!!
