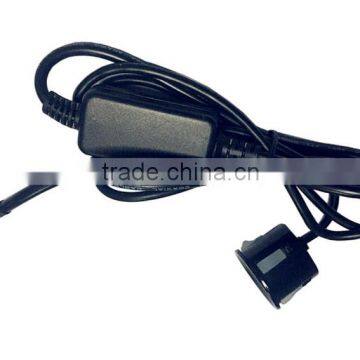

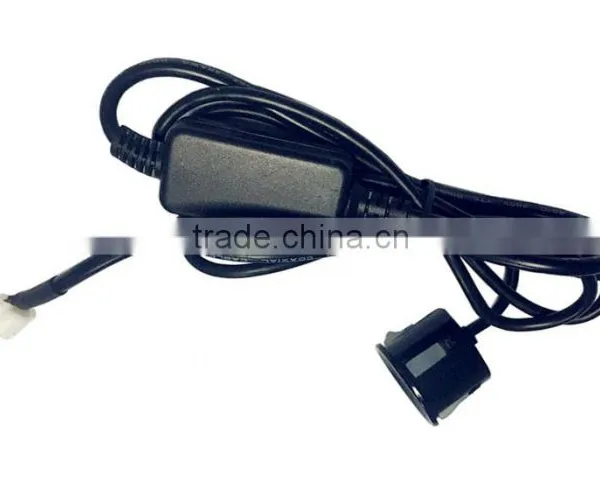

Help CenterHot Sale Ultrasonic Distance Measuring ModuleWaterproof and Compact Size Ultrasonic Sensor for Level Distance Measurement
Related Products
-
Ultrasonic Sensor Distance Measuring ModuleUltrasonic Module Range Detection SensorsDistance SensorUltrasoic Sensors MeasurementUS$ 2.71 - 7.25MOQ: 2000 Pieces -
Waterproof Ultrasonic Distance Measuring ModuleHigh Performance Ultrasonic Ranging ModuleDYP-ME007YSensorsUltrasonic TransducerUS$ 10.03 - 15.94MOQ: 500 Pieces
-
3-PIN Ultrasonic Sensor Distance Measuring Module(Serial Output)High Performance Ultrasonic Ranging ModuleUltrasonic TransducerUS$ 6.64 - 10.78MOQ: 500 Pieces
-
Mini Ultrasonic Motion Detector Module Sensor Display Distance BoardRange Distance Detect Ultrasonic SensorDisplay BoardUS$ 5.65 - 7.23MOQ: 1000 Pieces
-
High AccurancyUltrasonic SensorLong Range(8-800cm)Ultrasonic Transducer Sensor Distance Measuring ModuleUltrasonic TransducerUS$ 42.74 - 58.87MOQ: 100 Pieces
Features:
1) High sound pressure output;
2) Power supply: 5V;
3) Current: less than 20mA;
4) UART auto-output;
5) PWM controlled output;
6) Digital output;
7) Transmission-receiving enclosed sensor with long cable;
8) Center frequency: 40KHz;
9) Temperature compensation;
10) Working temperature: -15 degree centigrade to +60 degree centigrade;
11) Storage temperature: -25 degree centigrade to +80 degree centigrade;
12) Measurement accuracy: +/-1cm + (S*0.3%) (S is measured value);
13) Electrostatic protective design, the enclosure of sensor and the I/O pin are added the electrostatic protection device, up to
the standard of IEC61000-4-2;
Advantage:
1) High degree of protection;
2) Strong anti-interference;
3) Data output, stable and reliable;
4) Lower power dissipation;
5) Fast response time;
6) Strong antistatic;
7) Wide working temperature;
8) High measurement accuracy;
9) Small bulk and easy to install;
10) Auto-output distance value, release the processor of user;
11) With controlled output mode, could minimize power consumption according to the actual application;
There are three output modes: PWM, UART
and digital output, which corresponding item number are:
DYP-ME007YS-PWM V1.0
DYP-ME007YS-TX V1.0
DYP-ME007YS-KG V1.0
Please kindly advise which output mode you needed before purchasing order (our default output mode is PWM).
