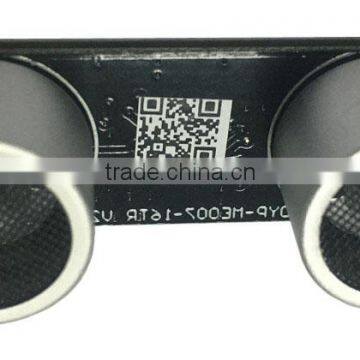

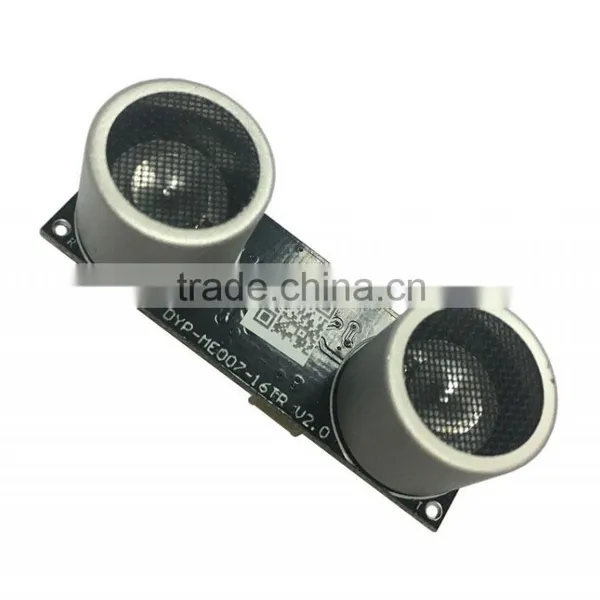

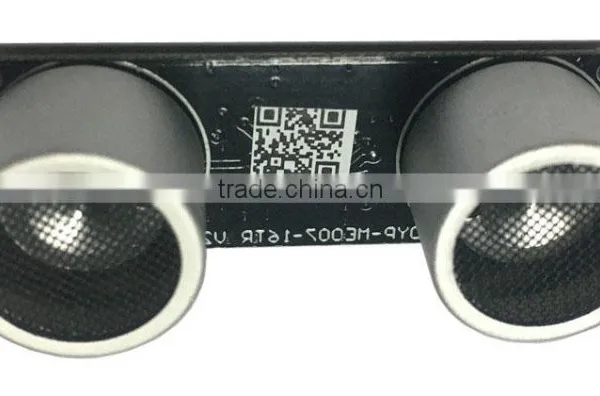

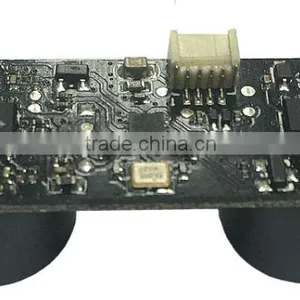

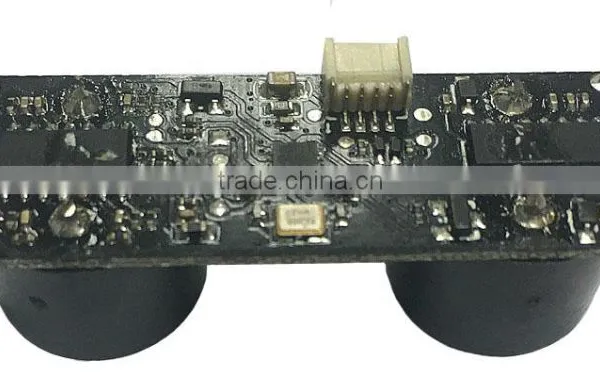

High Accuracy Ultrasonic Distance Measuring Sensor Module for UAV and RobotSmall Blind Zone Distance Measuring Sensor Module

Features:

1) Blind zone: more than 3cm;

2) Operating voltage: 5V;

3) Current : less than 20mA;

4) Automatically measure;

5) UART auto-output;

6) Work cycle: 50ms-100ms;

7) Center frequency: 40KHz;

8) Temperature compensation;

9) Working temperature: -15 degree centigrade to +60 degree centigrade ;

10) Storage temperature: -25 degree centigrade  to +80 degree centigrade ;

11)  Measurement accuracy: +/- 1cm+(S*0.3%) (S is measured value);

12) Electrostatic protective design, the enclosure of sensor and the I/O pin are added the electrostatic protection device,up to the standard of IEC61000-4-2;

Advantage:

1) Small blind zone;

2) Strong anti-interference;

3) Data output, stable and reliable;

4) Lower power dissipation;

5) Fast response time;

6) Automatic calibration;

7) Strong antistatic;

8) Wide working temperature;

9) High measurement accuracy;

10) Auto-output distance value, release the processor of user;

11) Control the trigger pin, could choose the real-time value  or processing value output mode, the application is more flexible;

Application:

1) For the UAV fixed high;

2) Robot obstacle avoidance;

3) Liquid level measurement;

4) Detect the objects close to and the existence of external objects;

5) Parking management system;

Basic parameter:

There are three types, which corresponding item number are:

DYP-ME007-16TRA V2.0

DYP-ME007-16TRP V2.0

DYP-ME007-16TRH V2.0

Please kindly advise us which type you needed before purchasing!!!
