Home > Electrical & Electronics > Sensor > Pressure Sensor > New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module

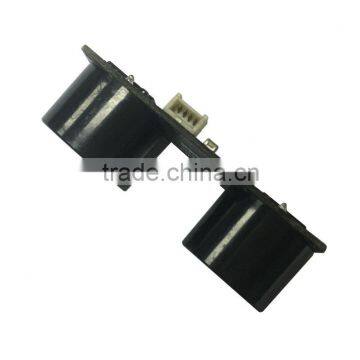

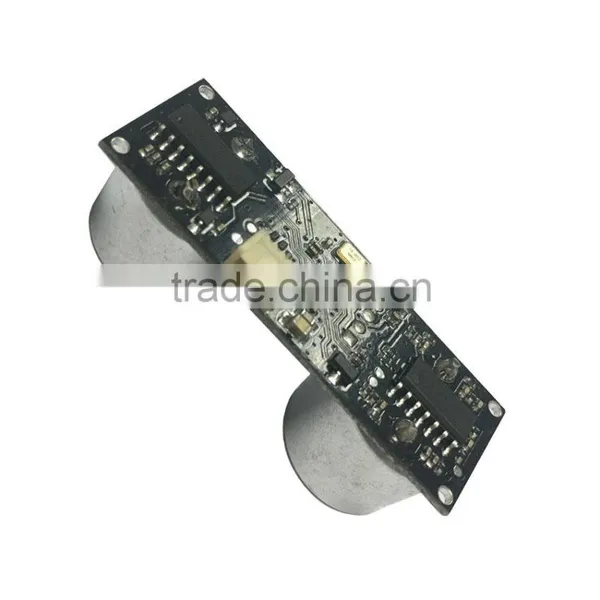

New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module

New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module thumbnail-3

New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module thumbnail-4

New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module photo-1

New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module photo-2

New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module photo-3

New Type and Small Blind Zone Ultrasonic Sensor ModuleObstacle Avoidance Module Ultrasonic Distance Measuring Sensor Module photo-4

US$ 7.15 - 11.15 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Brand Name:

DYP

Model Number:

DYP-ME007-16TR*

Usage:

Position Sensor

Contact Supplier Request Quote Chat Now

Shenzhen Dianyingpu Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name DYP

Model Number DYP-ME007-16TR*

Usage Position Sensor

Theory Ultrasonic Sensor

Output Digital Sensor

Features:

1) Blind zone: more than 3cm;

2) Operating voltage: 5V;

3) Current : less than 20mA;

4) Automatically measure;

5) UART auto-output;

6) Work cycle: 50ms-100ms;

7) Center frequency: 40KHz;

8) Temperature compensation;

9) Working temperature: -15 degree centigrade to +60 degree centigrade

10) Storage temperature: -25 degree centigrade to +80 degree centigrade ;

11) Measurement accuracy: +/- 1cm+(S*0.3%) (S is measured value);

12) Electrostatic protective design, the enclosure of sensor and the I/O pin are added the electrostatic protection device,

up to the standard of IEC61000-4-2;

Advantage:

1) Small blind zone;

2) Strong anti-interference;

3) Data output, stable and reliable;

4) Lower power dissipation;

5) Fast response time;

6) Automatic calibration;

7) Strong antistatic;

8) Wide working temperature;

9) High measurement accuracy;

10) Auto-output distance value, release the processor of user;

11) Control the trigger pin, could choose the real-time value or processing value output mode, the application is more flexible;

Application:

1) For the UAV fixed high;

2) Robot obstacle avoidance;

3) Liquid level measurement;

4) Detect the objects close to and the existence of external objects;

5) Parking management system;

Basic parameter:

Parameters item	16TRP	16TRH/16TRA	Unit	Remark
Input voltage	5	5	V	DC
Working current	less than or equal to 20	less than or equal to 20	mA
Blind zone distance	less than or equal to 3	less than or equal to 3	cm
Flat object range	2-500	2-500	cm	(1)
Work cycle	50-100	50-100	ms
Room temperature measurement precision	plus or minus 1+(S*0.3%)	plus or minus 1+(S*0.3%)	cm	(1)
The center frequency of sensor	40K plus or minus 1.0K	40K plus or minus 1.0K	Hz
ESD	plus or minus 4 or plus or minus 8	plus or minus 4 or plus or minus 8	KV	(2)
Detection of axial stability	plus or minus 2.5	plus or minus 2.5	degree	(3)
Net weight	5.6	6.4	g
Working temperature	15 to 60	15 to 60	degree centigrade
Storage temperature	25 to 80	25 to 80	degree centigrade
Working humidity	less than or equal to 80 percent	less than or equal to 80 percent	RH	(4)
Storage humidity	less than or equal to 90 percent	less than or equal to 90 percent	RH	(4)
