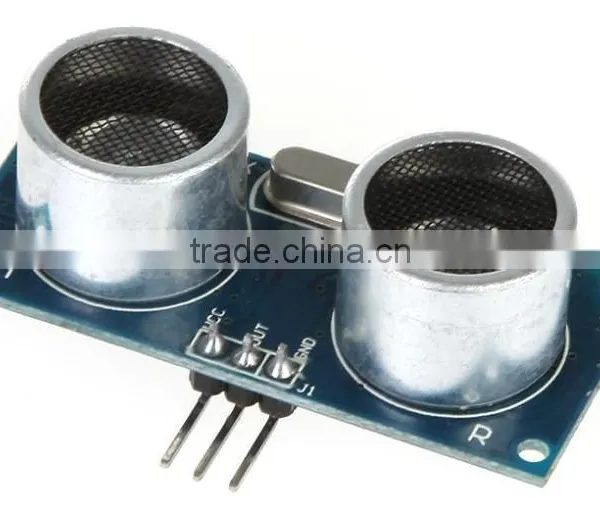

Help CenterUltrasonic Module Distance Measuring Transducer Sensor With Serial PortUltrasonic Distance SUltrasonic Distance Measuring Module
Related Products
-
Ultrasonic Sensor Theory and Serial Port Output Ultrasonic Rangding ModuleSensorsUltrasonic Distance Measuring Sensor ModuleUS$ 6.68 - 8.29MOQ: 100 Pieces -
High Performance and Cost-effective Ultrasonic Distance Measuring Sensor ModuleDistance SeBlue Ultrasonic Ranging Sensor ModuleUS$ 7.26 - 8.15MOQ: 300 Pieces
-
USB Interface Ultrasonic Distance Measurement ModuleUltrasonic Distance Measuring ModUltrasonic Sensor Distance Measuring ModuleUS$ 8.96 - 11.15MOQ: 10 Pieces
-
Ultrasonic Sensor Theory Ultrasonic Sensor Module for Distance MeasurementSensorsUltrasonic Sensor Module With USB InterfaceUS$ 7.26 - 8.96MOQ: 100 Pieces
-
Analog Sensor Output Ultrasonic Distance Measuring SensorHigh Precision Low Consumption Ultrasonic Distance Measurement SensorUS$ 8.99 - 13.27MOQ: 10 Pieces
Features:
1,Small size, easy to use;
2,Low voltage, low power consumption;
3,Wide measurement range;
4,High accuracy;
5,Small blind;
Applications:
1,Measuring the space between objects;
2,Programmable car obstacle avoidance;
3,Robot obstacle avoidance;
4,Teaching apparatus;
5,Security, industrial control;
Electrical parameters:
TYPE |
DYP-ME007TX |
Operating voltage |
DC 5V |
Operating current |
15mA |
Operating frequency |
40KHz |
Maximum range |
4m |
Minimum range |
2cm |
Rate of serial port baud |
9600,n,8,1 |
Cycle of response |
100ms |
Resolution |
1mm |
Angles of measuring |
30° |
Operating temperature |
-10-60℃ |
Storage temperature |
-20-80℃ |
Size |
45*20*15mm |
Instructions for using:
This module will occupy one IO port in microcontroller when it's in using. After connecting with the power, the module will have a ranging every 50s, and have a frame from the pin out(having four 8-bit data)
The format of frame is: 0XFF + H_DATA + L_DATA + SUM.
1. 0XFF: is a beginning data,used to determine a data;
2. H_DATA: the heigt of distance data is 8 digits;
3. L_DATA: the low of distance data is 8 digits;
4. SUM: sum of data, used for validation. 0XFF+ DATA_H +DATA_L =SUM(only lower than 8 digits);
Note: DATA_H and DATA_L combine into 16 digits,the distance value in millimeters;
