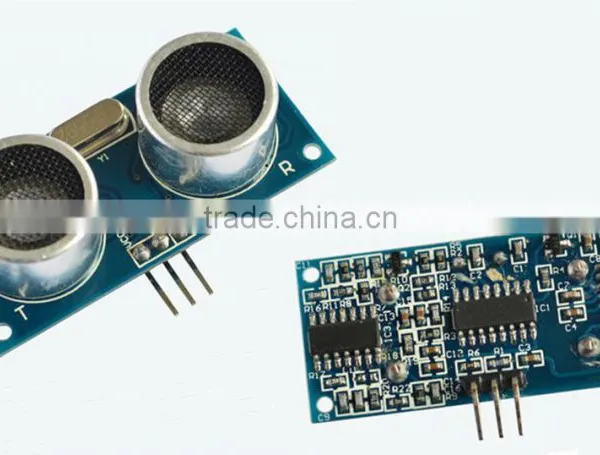

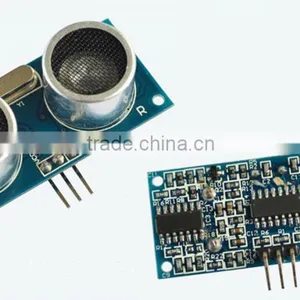

Ultrasonic ranging module with serial interface of DYP-ME007TX is a non-contact distance sensing module and having the feature of high performance and cost-effective. Measuring range is 0.02 ~ 4.00m, measurement accuracy is 1cm. When it works, it does not contact with the measured object directly, and it could show the results of measurement clearly.
Features:
1,Small size, easy to use;
2,Low voltage, low power consumption;
3,Wide measurement range;
4,High accuracy;
5,Small blind;
Applications:
1,Measuring the space between objects;
2,Programmable car obstacle avoidance;
3,Robot obstacle avoidance;
4,Teaching apparatus;
5,Security, industrial control;
Electrical parameters:
TYPE |
DYP-ME007TX |
Operating voltage |
DC 5V |
Operating current |
15mA |
Operating frequency |
40KHz |
Maximum range |
4m |
Minimum range |
2cm |
Rate of serial port baud |
9600,n,8,1 |
Cycle of response |
100ms |
Resolution |
1mm |
Angles of measuring |
30° |
Operating temperature |
-10-60℃ |
Storage temperature |
-20-80℃ |
Size |
45*20*15mm |
Instructions for using:
This module will occupy one IO port in microcontroller when it's in using. After connecting with the power, the module will have a ranging every 50s, and have a frame from the pin out(having four 8-bit data)
The format of frame is: 0XFF + H_DATA + L_DATA + SUM.
1. 0XFF: is a beginning data,used to determine a data;
2. H_DATA: the heigt of distance data is 8 digits;
3. L_DATA: the low of distance data is 8 digits;
4. SUM: sum of data, used for validation. 0XFF+ DATA_H +DATA_L =SUM(only lower than 8 digits);
Note: DATA_H and DATA_L combine into 16 digits,the distance value in millimeters;
