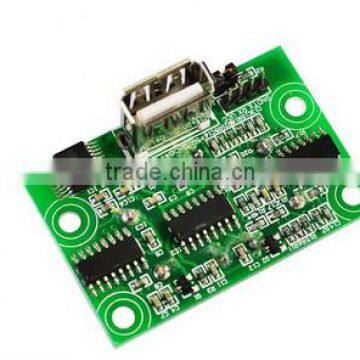

Help CenterUSB Interface Ultrasonic Distance Measurement ModuleUltrasonic Distance Measuring ModUltrasonic Sensor Distance Measuring Module
Related Products
-
Ultrasonic Sensor Theory Ultrasonic Sensor Module for Distance MeasurementSensorsUltrasonic Sensor Module With USB InterfaceUS$ 7.26 - 8.96MOQ: 100 Pieces -
Analog Sensor Output Ultrasonic Distance Measuring SensorHigh Precision Low Consumption Ultrasonic Distance Measurement SensorUS$ 8.99 - 13.27MOQ: 10 Pieces
-
High Precision Low Consumption Ultrasonic Distance Measurement SensorDigitalultrasonic Sensor Ranging Distance Measuring SensorUS$ 8.99 - 10.78MOQ: 100 Pieces
-
Ultrasonic Sensor Theory and Digital Output Waterproof Ultrasonic Sensor Module DYP-ME007YUltrasonic Distance Measuring SensorUS$ 10.03 - 15MOQ: 10 Pieces
-
Integrated Waterproof Ultrasonic Distance Measurement ModuleDYP-ME007Y Waterproof Ultrasonic Sensor Module Distance MeasuringUS$ 8.15 - 11.28MOQ: 100 Pieces
DYP-ME007 USB interface ultrasonic sensor provides non-contact distance measuring of 2cm to 4 meters range. This ultrasonic sensor module is applied for distance measuring like: programmable car obstacle avoidance, robot obstacle avoidance, teaching apparatus, security and industrial control and more.
Features:
1,Small size, easy to use;
2,Low voltage, low power consumption;
3,Wide measurement range;
4,High accuracy;
5,Small blind;
Applications:
1,Measuring the space between objects;
2,Programmable car obstacle avoidance;
3,Robot obstacle avoidance;
4,Teaching apparatus;
5,Security, industrial control;
Electrical parameters:
TYPE | DYP-ME007USB |
Operating voltage | DC 5V |
Operating current | 25mA |
Operating frequency | 40KHz |
Max distance | 4m |
Min distance | 2cm |
Rate of serial port baud | 9600,n,8,1 |
Response time | 500MS |
Resolution | 1mm |
Angle of measuring | 50° |
Operating temperature | -10-60℃ |
Storage temperature | -20-80℃ |
Size | 45*30*15mm |
Instructions for using:
The USB interface of module will connect with the USB interface of computer when in using. After installing the driver files of CH340T, the computer will identify a hardware interface, then open the assistant of serial debugging, right click the "my computer" then open the device manager. Looking out which interfaces is the serial port in computer,then choose the serial port from the debugging assistant. Setting the baud rate: 9600,N,8,1, then open the serial port. The module will receive four 8-digit and the format of frame is: 0XFF + H_DATA + L_DATA + SUM.
1. 0XFF: is a beginning data,used to determine a data;
2. H_DATA: the heigt of distance data is 8 digits;
3. L_DATA: the low of distance data is 8 digits;
4. SUM: sum of data, used for validation. 0XFF+ DATA_H +DATA_L =SUM(only lower than 8 digits);
Note: DATA_H and DATA_L combine into 16 digits,the distance value in millimeters;
