High Frequency Ultrasonic SensorUltrasonic Range Measurement Security Non-contactWaterproof Ultrasonic Sensor Distance Measuring

Specifications

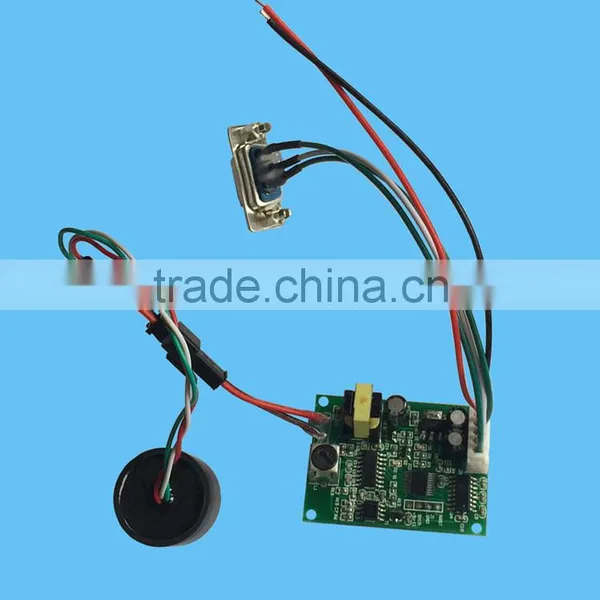

This ultrasonic sensor provides a non-contact distance measuring of a 140 mm to 2100 mm detection range and uses a high frequency ultrasonic probe. It is applied for distance measuring like: programmable car obstacle avoidance,robot obstacle avoidanceteaching apparatus and industrial control and more.

Features:

1/ Low voltage,low power consumption;
2/ High accuracy,wide measurement range;
3/ Small blind zone;
4/ Waterproof design,compact size easy to use;
4/ Application: Robot obstacle avoidance,security,industrial;

Specifications:

1/ Detecting range: 14cm-2.1m;
2/ Operating voltage: 6 - 12V DC;
3/ Operating current: <45mA;
4/ Ultrasonic frequency: 125KHz;
5/ Resolution: 1mm;
6/ Output signal: RS232,serial output;
7/ Communication format: 9600,n,8,1;
8/ Response time: 1s;
9/ Detection Angle: less than 10 degrees;
10/ Working Temperature: -10°C to +60°C
11/ PCB Size: Approx. 44 X 37mm;
