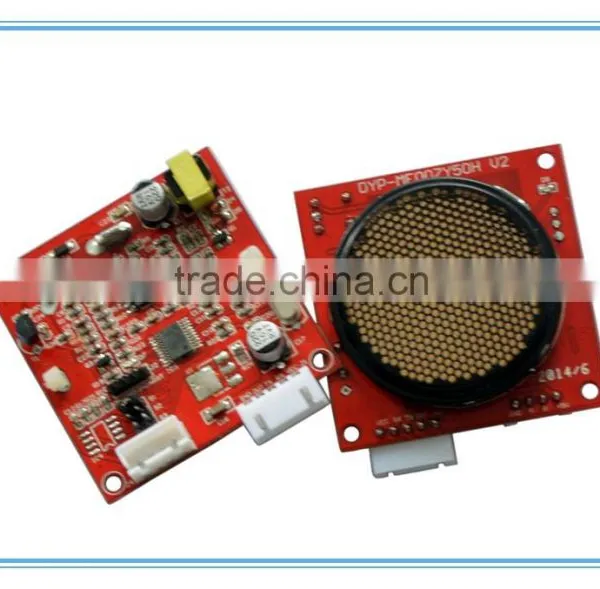

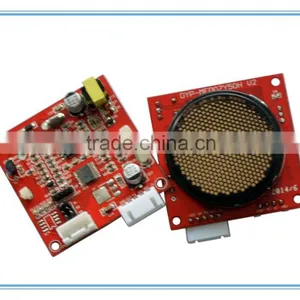

High Performance Ultrasonic Range Module Senscomp's 600 SerialLong Range (8m) Ultrasonic Sensor for Distance Measurement Module

Description:

This High Power Ultrasonic Range Finder is based on electrostatic senscomp's 600 ultrasound transducer design. It can measure a distances of up to 8m. The angle between the ultrasound probes is only 15 °, while the majority of the ultrasound is 60 °.

Applications:

1) robot navigation and obstacle avoidance

2) measuring distance devices

3) engineering measurement tools

4) industrial control system

Specifications:

1) Power Supply:DC5v (default), DC6-12V (optional);

2) Current: standby current is less than 10mA, when sending the instant the current is about 250mA;

3) Operating temperature range: -20°C ~ + 75°C;

4) Interface: PWM and UART serial (default),RS-485 (optional);

5) Operating frequency 50KHZ. Probe direction angle 15 ° (-6dB);

6) Ultrasonic Distance Measurement:  8 cm to 8 m;

7) Distance resolution:1mm (for UART serial output);

8) Operating modes: single-echo mode;

9) Size: 50mm X 50mm;
