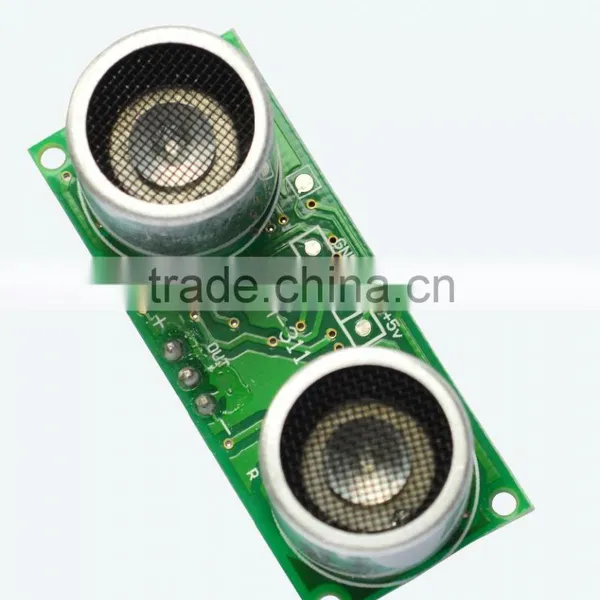

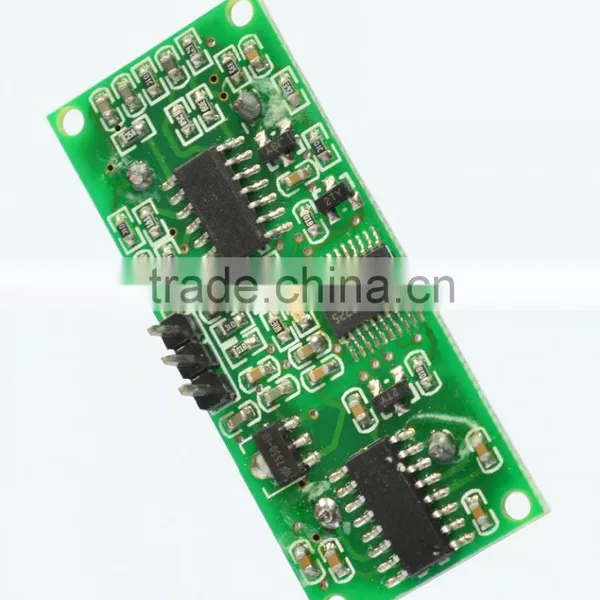

This ultrasonic sensor with a high accuracy(0.5cm) and a 0.02m to 4 m detecting range,is widely used in fields like industrial,auto,teaching and robots,etc.
Descriptions:
1 This ultrasonic sensor is a high performance,low cost and with non-contact distance measurement module;
2 Detecting range is 0.02m to 4m,and with high accuracy(0.5cm);
3 It does not contact with the measured object directly when detects,and could show the results of measurement clearly.
Specifications:
1 Detecting Range: 0.02 m - 4m;
2 Supply Voltage: DC 5V - 12V ;
3 Working Current: 3 mA;
4 Resolution: 1 mm;
5 Ultrasonic Frequency: 40kHZ;
6 Dretection Angle: 30 Degree;
7 Output: Switching Output;
8 Working Temperature: -10-60°C;
9 Storage Temperature: -20-80°C ;
6 Dimension: 46 X 19 X 15 mm;
