Specifications
This encoder with high quality and low price,was used in computer cross slitting machine,industrial automatic control and etc.Applications:
1,Computer injection molding machine;
2,Computer cross slitting machine;
3,Industrial automatic control;
Technical parameters:
Resolution ratio |
2-2500PR |
||||
Output circuit |
Open circuit |
Voltage |
Complementation |
Wide pressure-driven |
|
Supply voltage(VCC) |
DC5V,10-30V |
DC5V |
|||
Current consumption |
Maximum: 60mA |
Maximum: 150mA |
|||
Response frequency |
Maximum:100KHz |
||||
Rise/fall time |
Maximum: 1us |
Maximum: 100ns |
|||
Allow load channel |
Maximum: 30mA |
Maximum: 20mA |
|||
Signal high level |
Minimum: VCC * 70% |
||||
Signal low level |
Maximum: 0.5-1V |
Maximum: 0.5V |
|||
Mechanical and environmental parameters:
Maximum: rotary speed |
6000r/min |
|
Load |
radial |
20N |
axial |
10N |
|
Starting torque |
5 X 10-² N.m Max |
|
IP code |
IP60 |
|
Operating temperature |
-10~ + 70°C |
|
Storage temperature |
-20~ + 80°C |
|
Impact resistance force |
1000m/s -², 6ms |
|
Dynamic shock resistance |
1000m/s -², 10~200HZ |
|

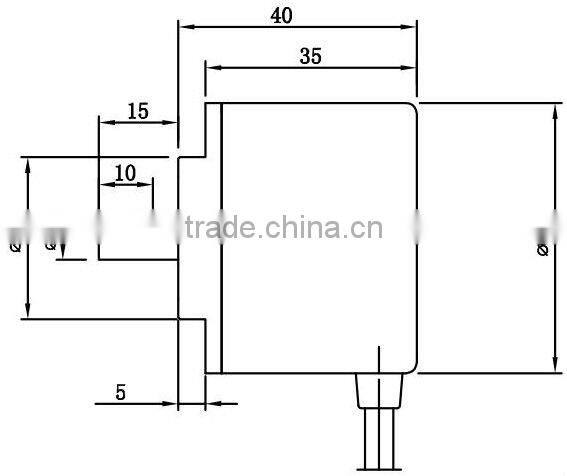

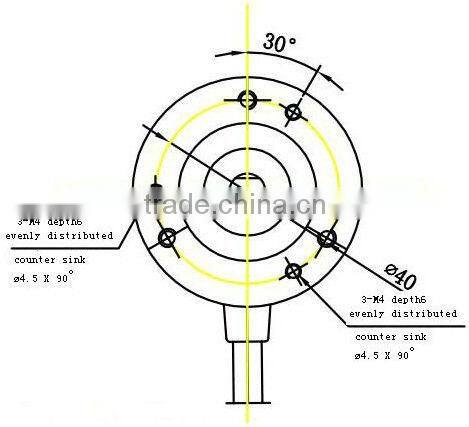

Contour dimension
