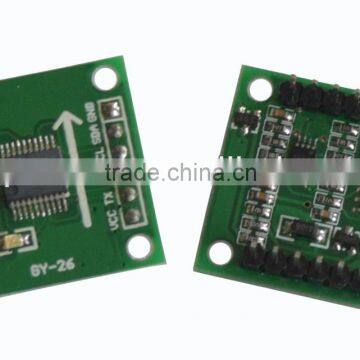

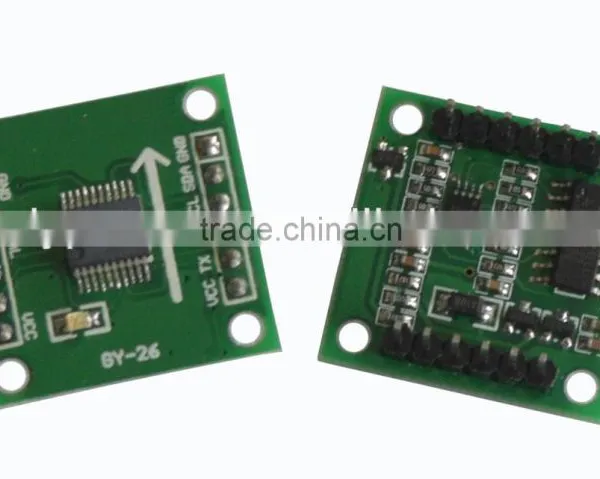

Help CenterDigital Compass Sensor Module(GY-26)
Related Products
-
3-Axis Compass Accelerometer Module GY-27Compass ModuleDigital Accerelometer SensorsTriaxial AccelerometerAccelerometer ModuleUS$ 12.44 - 16.58MOQ: 100 Pieces -
Digital Accelerometer Sensor Module(GY-29-ADXL345)Gravity Angle SensorAccelerometer SenGY-29 Digital Accelerometer Sensor ModuleUS$ 5.23 - 8.07MOQ: 100 Pieces
-
BH1750FVI Digital Light Intensity Sensor Module(GY-30)Digital Light Intensity Sensor ModuleDigital Light SensLight Sensor ModuleUS$ 3.15 - 6.53MOQ: 200 Pieces
-
Color Sensor ModuleColor Recognition ModuleGY-31 Color ModuleColor RecognitisensorsTCS3200 Color Sensor Color Recognition ModuleUS$ 5.82 - 11.41MOQ: 200 Pieces
-
3 Axis Hot Selling/Digital Gyroscope Sensor Module Angular Velocity/GY-50/Professional Sensor Developer and ManufacturerUS$ 5.87 - 9.78MOQ: 100 Pieces
Specifications
This is a low cost plane digital compass and with stable operation and high accuracy.Features:
1 This is a low cost plane digital compass;
2 The working principle is utilizing magnetoresistive sensor sensing the Earth's magnetic field component, so as to get an azimuth angle;
3 Light weight and high cost-effective;
4 With stable operation and high accuracy;
5 Very low operating voltage (3 - 5V DC);
6 DC single supply operation;
7 Advanced hard iron calibration;
8 Size (L x W): Approx. 1 x 1 inch / 2.5 x 2.5 cm;
Electrical Parameters:
1 Working Temperature: Between -20 degC and 85 degC;
2 Store Temperature: Between -40 degC and 125 degC;
3 Current Consumption: 5V 15mA, 3V 8mA;
4 Response Frequency: 25Hz;
5 Measuring Range: Between 0 degrees to 360 degrees;
6 Resolution: 0.1 degree;
7 Measuring Precision: 1 degree;
Applications:
1 Handheld electronic instrument;
2 Robot orientation and position;
3 Navigation system;
4 Telescope position;
5 Auto helm rudder;
6 Antenna position;
7 Automobile GPS navigation;
8 Aero model position;
