Specifications
It's an incremental optical rotary encoder, and was widely used in small CNC machinery,computer medical equipment and etc.Applications:
1,Small CNC machinery;
2,Computer wave soldering machine;
3,CNC woodworking machinery;
4,Computer medical equipment;
5,Industrial automatic control;
Technical parameters:
Resolution ratio |
100/500PR |
|
Output circuit |
NPN Open circuit |
Voltage |
Supply voltage(VCC) |
DC5V,10-30V |
|
Current consumption |
Maximum: 60mA |
|
Response frequency |
Maximum:100KHz |
|
Rise/fall time |
Maximum: 1us |
|
Allow load channel |
Maximum: 30mA |
|
Signal high level |
Minimum: VCC * 70% |
|
Signal low level |
Maximum: 0.5-1V |
|
Mechanical and environmental parameters:
Maximum: rotary speed |
3000r/min |
|
Load |
radial |
10N |
axial |
5N |
|
Starting torque |
2 X 10 -4 N.m Max |
|
IP code |
IP60 |
|
Operating temperature |
-10~ + 70°C |
|
Storage temperature |
-20~ + 80°C |
|
Impact resistance force |
1000m/s-² , 6ms |
|
Dynamic shock resistance |
1000m/s -² , 10~200HZ |
|

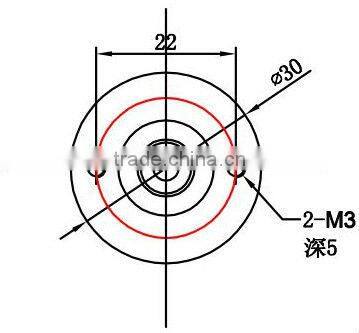

Contour dimension :
