Specifications

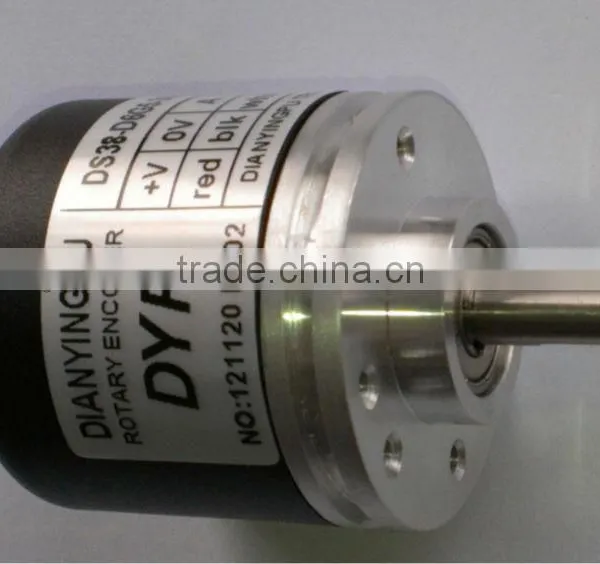

Thins is an cheap price and high quality rotary encoder,was widely used in computer cross slitting machine,elevator door-motor.Applications:
1,Elevator door-motor;
2,Computer cross slitting machine;
3,Industrial automatic control;
Technical parameters:
Resolution ratio |
2-2500PR |
|||||
Output circuit |
Open circuit |
Voltage |
Complementation |
Wide pressure-driven |
||
Supply voltage(VCC) |
DC5V,10-30V |
DC5V |
DC5-24V |
|||
Current consumption |
Maximum: 60mA |
Maximum: 150mA |
||||
Response frequency |
Maximum:100KHz |
|||||
Rise/fall time |
Maximum: 1us |
Maximum: 100ns |
||||
Allow load channel |
Maximum: 30mA |
Maximum: 20mA |
||||
Signal high level |
Minimum: VCC * 70% |
|||||
Signal low level |
Maximum: 0.5-1V |
Maximum: 0.5V |
||||
Mechanical and environmental parameters:
Maximum: rotary speed |
6000r/min |
|
Load |
radial |
20N |
axial |
10N |
|
Starting torque |
5 X 10-² N.m Max |
|
IP code |
IP60 |
|
Operating temperature |
-10~ + 70°C |
|
Storage temperature |
-20~ + 80°C |
|
Impact resistance force |
1000m/s-² , 6ms |
|
Dynamic shock resistance |
1000m/-² , 10~200HZ |
|
