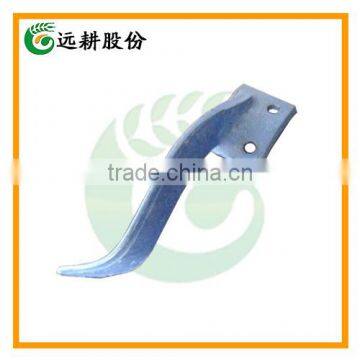

Yuangeng Rotary Machine 581 681 Agricultural Machinery Spare Parts

Name: Yuangeng Rotary Machine 581 681 Agricultural Machinery Spare Parts
Brand: yuangeng
Availability: InStock

FOB Price

USD $0.1 - $0.99 / Piece

10000 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Blades	Use	Cultivators
Place of Origin	Jiangxi, China	Brand Name	yuangeng
Model Number	YG-19

Product Description

Rotavator Blade

Yuangeng Rotary Machine 581 681 Agricultural Machinery Spare Parts

Product Description

Specificaiton Details:

1	Item Name	Cultivation Machine Parts Rotavator Blade
2	Material	65Mn, 60SI2MN, 28SiMnB
3	Technique	Hot Forging
4	Surface Treatment	Spray Paint,Power Painting,
5	Color	Black,Blue,Gray,Green,Yellow,Orange or according to your requirement
6	Heat Treatment	Normalized-hardened & Tempered
7	Hardness	40-50HRC
8	Working Hours	300-400
9	Feature/Characteristic	Long using life and the reasonable price,smooth surface
10	Advantages	Professional production team,excellent engineer,high quality productions
11	Place of origin	Jiangxi
12	Package	Carton and pallet. Otherwise we can supply the package according to your requirement if needed.

Chemical composition of steel:

Material	Chemical composition table
Material	C(%)	Si(%)	Mn(%)	Cr(%)	P(%)	S(%)	B
65Mn	0.62-0.70	0.17-0.37	0.9-1.20	≤0.25	≤0.015	≤0.035
60Si2Mn	0.56-0.64	1.50-2.00	0.69-0.90	≤0.35	≤0.035	≤0.035
55Si7	0.52-0.60	1.50-2.00	0.69-0.90	≤0.35	≤0.035	≤0.035
28SiMnB	0.24-0.32	0.60-1.00	1.20-1.60	0.014	0.015		0.0005-0.0035
30MnCrB5	0.26-0.34	≤0.4	1.10-1.40	0.3-0.6	≤0.025	≤0.035	0.0008-0.005
SuP9	0.52-0.60	0.15-0.35	0.65-0.95	0.65-0.95	≤0.030	≤0.030

Advantages

Our Products Advantage

*Long lasting quality

*These blades are available in hard faced conditions

*Available for all tiller

*The whole part has been adjusted to pass the balance test both in static and moving states

*The blade is high temperature salt holistic tempering medium temperature and hardness is HRC40 to 50

*The surface can be painted blacken

*Our heat treatment that ensures long life even in tough soil conditions

Packaging & Shipping

Sample , Payment Terms & Delivery

1) Sample : test the quality of our sample firstly before you purchase them in mass quantity.

2) Payment Terms : T/T, L/C, Western Union

3) Delivery Date: 20-25 working days after deposit paid

4) Shipping Way: By Sea or By express

Oversea Exhibition

Company Information

Jiangxi Yuangeng Agricultural Machinery Co.,Ltd, which is a member of Jiangxi Yuancheng Group. Jiangxi Yuancheng Group, founded in 2002, and after more than 10 years’ rapid and stable development, it has established 8 factories and formed 6 central warehouses in Jiangxi Nanchang, Gansu Lanzhou, Hubei Xiangfan, Jilin Changchun, Tianjin, Guizhou Guiyang, and it has standed the leading position in the whole industry. Our group owns the powerful research and development team, strong technical reserve forces, and adopts the leading domestic, international first-class manufacturing equipment. And we take ‘supply the most cost-effective products’ as our instruct principle for the product and our market, and provide the timely and highest quality service. Our product are widely used in the global, and are sold to European, North and South America, Asia and Africa.
