581 single hole power tiller blade
- shanghai
- T/T
You May Like
Product Details
| Type | Blades | Use | Tractors | |
| Place of Origin | Jiangxi, China | Brand Name | yuangeng | |
| Model Number | YG-11 |
Product Description

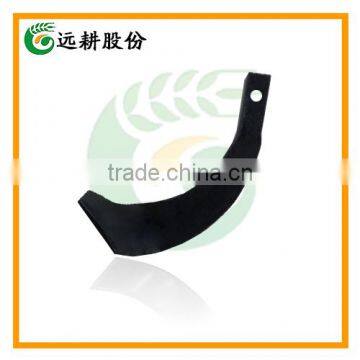

1. Products Photos:
2. Specificaiton Details:
1. Material: 65Mn or 60Si2Mn
2. Process: Forged;
3. Heat treatment: Normalized-hardened & tempered;
4. Hardness: 40-50HRC;
5. Working hours: 300-400;
6. Features: Professional production process with smooth surface;
3. Chemical composition of steel:
Material | Chemical composition table | ||||||
C(%) | Si(%) | Mn(%) | Cr(%) | P(%) | S(%) | B | |
65Mn | 0.62-0.70 | 0.17-0.37 | 0.9-1.20 | ≤0.25 | ≤0.015 | ≤0.035 |
|
60Si2Mn | 0.56-0.64 | 1.50-2.00 | 0.69-0.90 | ≤0.35 | ≤0.035 | ≤0.035 |
|
55Si7 | 0.52-0.60 | 1.50-2.00 | 0.69-0.90 | ≤0.35 | ≤0.035 | ≤0.035 |
|
28SiMnB | 0.24-0.32 | 0.60-1.00 | 1.20-1.60 | 0.014 | 0.015 |
| 0.0005-0.0035 |
30MnCrB5 | 0.26-0.34 | ≤0.4 | 1.10-1.40 | 0.3-0.6 | ≤0.025 | ≤0.035 | 0.0008-0.005 |
SuP9 | 0.52-0.60 | 0.15-0.35 | 0.65-0.95 | 0.65-0.95 | ≤0.030 | ≤0.030 |
|
4. Our Products Advantage
*Long lasting quality
*These blades are available in hard faced conditions
*Available for all tiller
*The whole part has been adjusted to pass the balance test both in static and moving states
*The blade is high temperature salt holistic tempering medium temperature and hardness is HRC40 to 50
*The surface can be painted blacken
*Our heat treatment that ensures long life even in tough soil conditions
5. Sample , Payment Terms & Delivery
1) Sample : test the quality of our sample firstly before you purchase them in mass quantity.
2) Payment Terms : T/T, L/C, Western Union
3) Delivery Date: 20-25 working days after deposit paid
4) Shipping Way: By Sea or By express
