fire fighting centrifugal pump Multistage Fire Pump

Name: fire fighting centrifugal pump Multistage Fire Pump
Brand: Minshan
Availability: InStock

FOB Price

US$ 100 - 100,000 / Unit

1 Unit(Min. Order)

Port Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Minshan
Model Number	XBD-W Horizontal Single-stage Fire-fighting Pump

Product Description

Banner

Product Description

Fire fighting centrifugal pump Multistage Fire Pump with ISO, CCC Certificates

Product Introduction:

XBD-GDL Vertical single-suction-fire multi-stage pipeline pumping systems is the Division of the original vertical multi-stage pipeline pump under fire pump on the basis of the latest standard requirements to develop a new generation of low pressure in the XBD pipeline-fire pumping systems products . For non-delivery of water and solid particles of similar physical and chemical properties of liquid water use. Applicable to the various occasions such as residential, hotels, office buildings, commercial buildings, factories, hospitals, etc. fire water supply.

Production of the Division Series XBD-GDL fire pump performance, technical requirements in line with the state promulgated the new GB6245-1998 "fire pump performance requirements and test methods," the requirements of the standard, products and equipment by the State Quality Supervision and fire detection centre tested, access Shanghai fire products recognized certificates.

Product characteristics:

1. Hydraulic model of advanced, high efficiency and performance of a wide range.
2. Vertical structure, small footprint.
3. Vibration of small, low noise, using hydraulic balance axial force, so that the smooth operation of pumps, safe and reliable.
4. Pump imports and exports at the same level axis, the same specifications and standards to facilitate pipe connection, working extremely convenient.

Type Designation:

XBD 4.2/15-80 GDL

XBD – Fire pump code

4.2 – Rated pressure (1/10MPa)

15 –Rated flow(L/S)

80 – Diameter of pump outlet and inlet (mm)

GDL – Vertical structures

Technology parameters:

Flow:0.5-45L/S;

Pressure:0.2-2.0Mpa;

Power:1.1-90KW;

Rotary speed:2900r/min;

Calibre:25-150mm;

Temperature range:≤80°C.

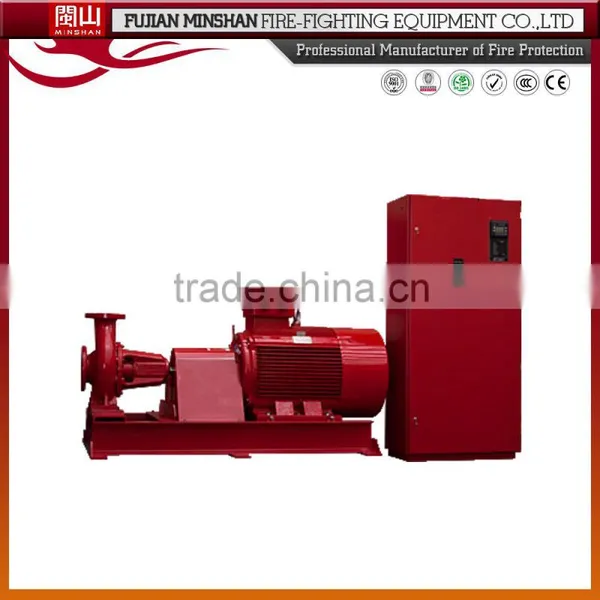

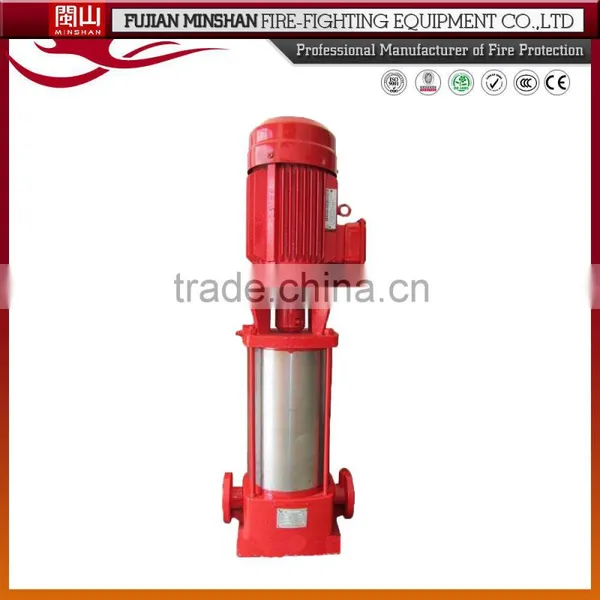

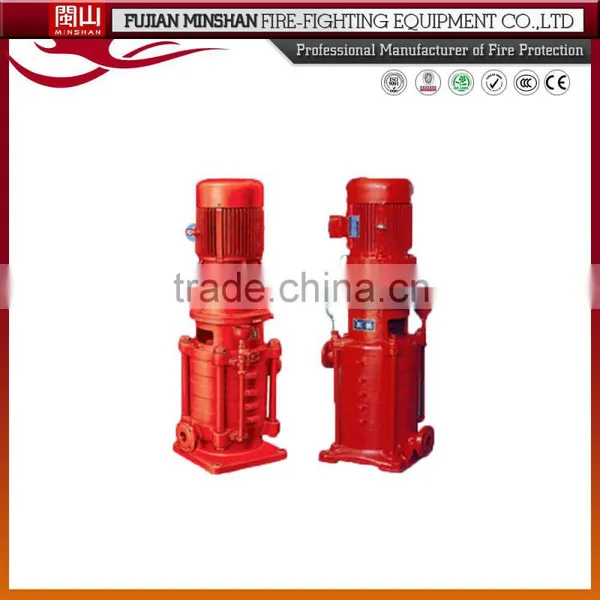

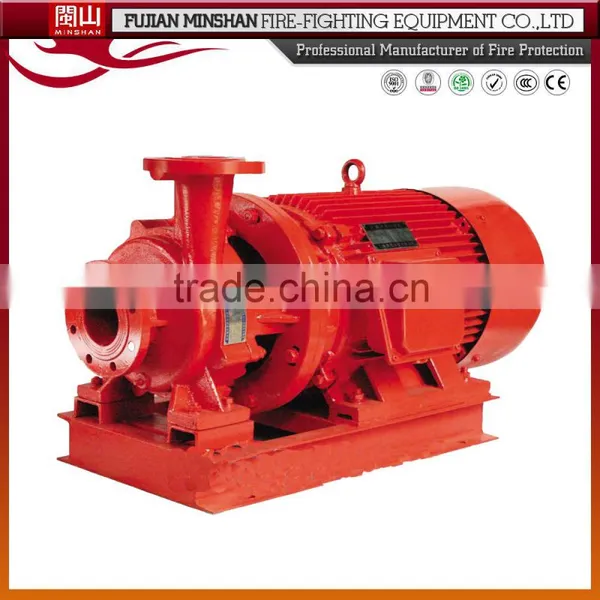

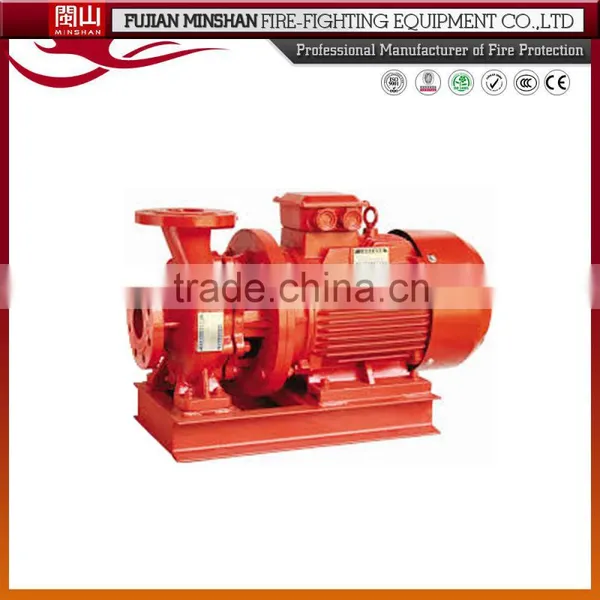

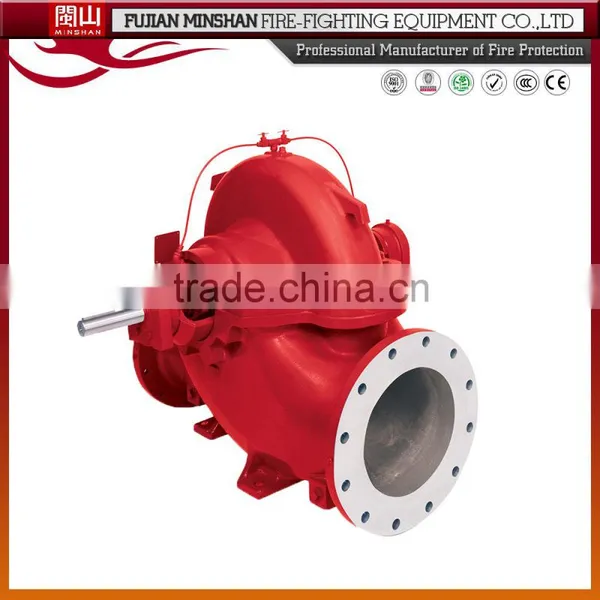

Product Image

Hot Selling Products

Factory View

Our Services

Primary Competitive Advantages:

1. Our company has several years's experience in producing all kind of forged brass ball valve and fittings , we have the self-operated importing and exporting rights .

2.Our products are approved by ACS ,CE ,ISO9001/14001 approved .

3.We can produce the fire fighting products according to our customer's requirement, and if the order is large , we don't charge any mould fee .

4. We insist to popularize our brand"Minshan" to our customers , and welcome to become our sales agency , We'll give our customer the special prices once the customer become our approved agency .

Outstanding Service:

Fast feedback: we promise to reply your inquiry within 24hours

Positive cooperation with your esteemed company

Good suggestions to your choice if necessary with our own rich experience

OEM accepted

Your visited to factory welcomed!

FAQ

Q: Are you a factory or trading company?

We are factory specialized on fire fighting equipment.

Q: Can I get a sample?

For certainly, please contact us for detail.

Q: What's the terms of the payment?

T/T, L/C, Western Union, MoneyGram, etc.
