ANSI Standard DN100 Stem Gate Valve

ANSI Standard DN100 Stem Gate Valve thumbnail-1
ANSI Standard DN100 Stem Gate Valve thumbnail-2
ANSI Standard DN100 Stem Gate Valve thumbnail-3
ANSI Standard DN100 Stem Gate Valve thumbnail-4
ANSI Standard DN100 Stem Gate Valve thumbnail-5
ANSI Standard DN100 Stem Gate Valve thumbnail-6

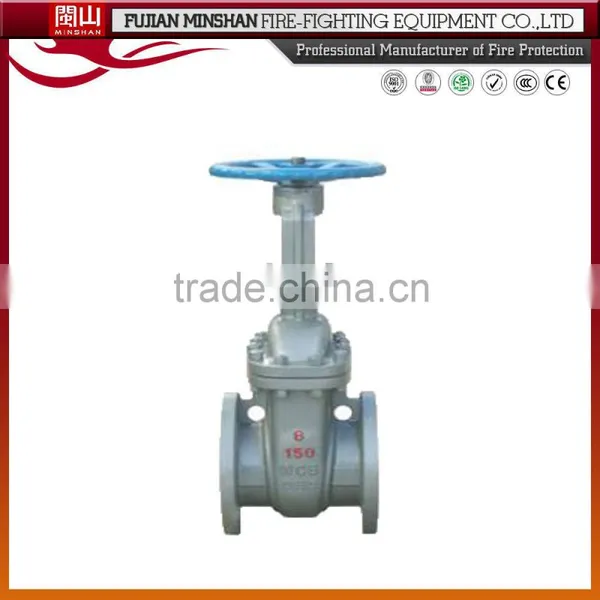

ANSI Standard DN100 Stem Gate Valve photo-1
ANSI Standard DN100 Stem Gate Valve photo-2
ANSI Standard DN100 Stem Gate Valve photo-3
ANSI Standard DN100 Stem Gate Valve photo-4
ANSI Standard DN100 Stem Gate Valve photo-5
ANSI Standard DN100 Stem Gate Valve photo-6
US$ 20 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Fujian Minshan Fire-Fighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Gate
Pressure High Pressure
Power Pneumatic
Material Other, Casting, CF8, CF8M, CF3, CF3M. 304 ,304L,316,316L. WCB, WCC
Temperature of Media Normal Temperature
Media Water
Port Size DN50 - DN600
Place of Origin Fujian, China
Model Number Steel iron rising stem gate valve
Brand Name Minshan
Application General



Banner

ANSI Standard DN100 Stem Gate Valve

Product Description

ANSI Standard DN100 Stem Gate Valve with ISO, CCC Certificates



Design and manufacture standard: GB12234,GB12232,AP1602

Structure length standard: GB12221,ANSIB16.10

Pressure test standard: GB13927,AP1598

Z41T-16

Z41T-16



1. Technical feature



working pressure: 1.6Mpa

ruggedness test: 2.4Mpa

seal test: 1.76Mpa

operating temperature: ≤100°C

Suitable medium: water, vapor, oils, nitric acid, acetic acid and etc.

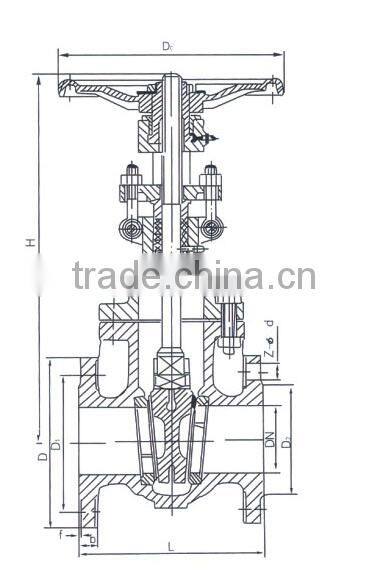

ANSI Standard DN100 Stem Gate Valve


DN L D D1 D2 DO H H1 Z-d
50 178 160 125 100 200 340 395 4-Φ18
65 190 180 145 120 200 370 440 4-Φ18
80 203 195 160 135 250 420 510 8-Φ18
100 229 215 180 155 250 480 590 8-Φ18
125 254 245 210 185 300 580 720 8-Φ18
150 267 280 240 210 300 620 780 8-Φ23
200 292 335 295 265 350 750 970 12-Φ23
250 330 405 355 320 400 880 1150 12-Φ25
300 356 460 410 375 400 1070 1390 12-Φ25
350 381 520 470 435 500 1170 1540 16-Φ25
400 406 580 525 485 500 1330 1750 16-Φ30

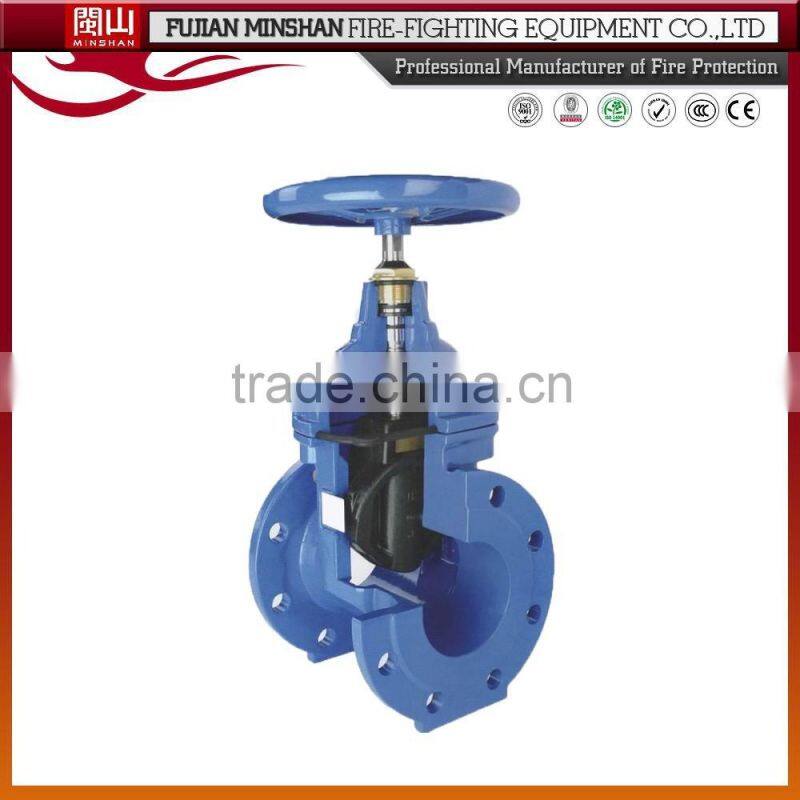

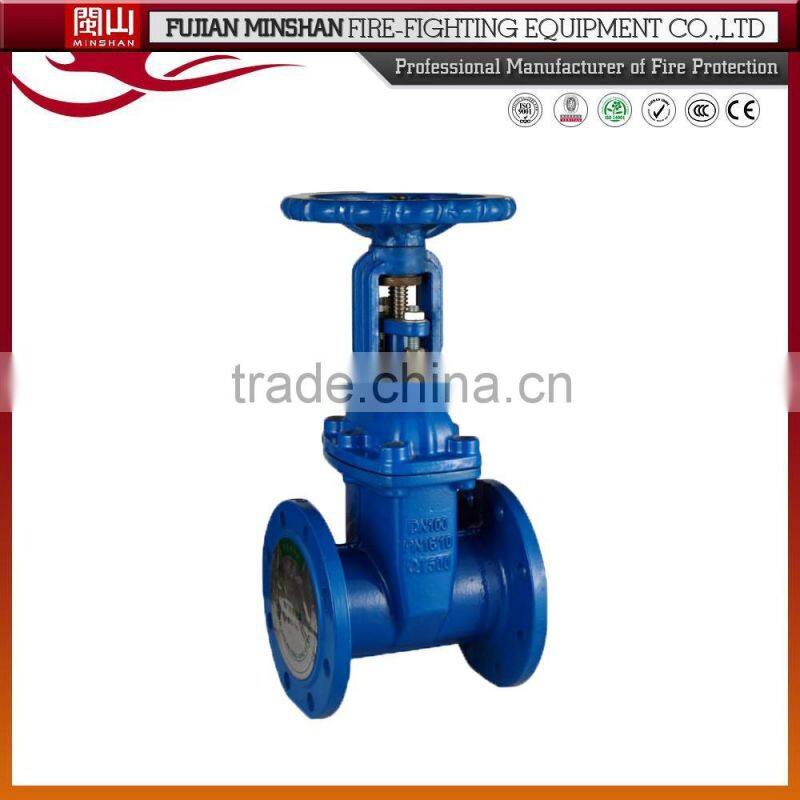

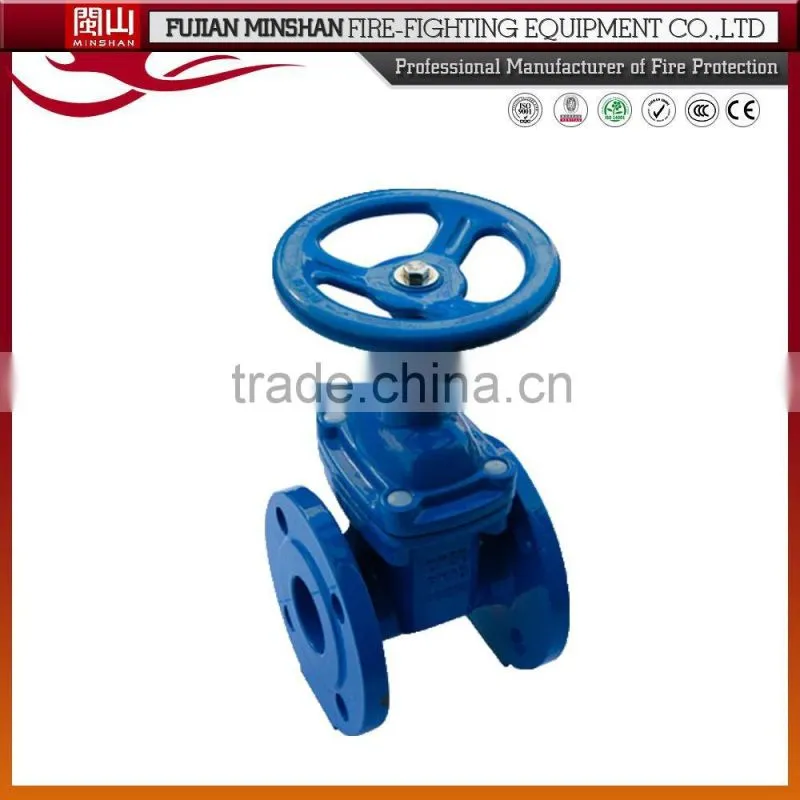

Product Image

 ANSI Standard DN100 Stem Gate ValveANSI Standard DN100 Stem Gate ValveANSI Standard DN100 Stem Gate Valve

Hot Selling Products
ANSI Standard DN100 Stem Gate Valve
ANSI Standard DN100 Stem Gate Valve
ANSI Standard DN100 Stem Gate Valve
ANSI Standard DN100 Stem Gate Valve
Factory View

ANSI Standard DN100 Stem Gate ValveANSI Standard DN100 Stem Gate Valve

Our Services
Primary Competitive Advantages:
1. Our company has several years's experience in producing all kind of forged brass ball valve and fittings , we have the self-operated importing and exporting rights .
2.Our products are approved by ACS ,CE ,ISO9001/14001 approved .
3.We can produce the fire fighting products according to our customer's requirement, and if the order is large , we don't charge any mould fee .
4. We insist to popularize our brand"Minshan" to our customers , and welcome to become our sales agency , We'll give our customer the special prices once the customer become our approved agency .


Outstanding Service:

 Fast feedback: we promise to reply your inquiry within 24hours

 Positive cooperation with your esteemed company

 Good suggestions to your choice if necessary with our own rich experience

 OEM accepted

 Your visited to factory welcomed!

FAQ

Q:  Are you a factory or trading company?

We are factory specialized on fire fighting equipment.

Q: Can I get a sample?

For certainly, please contact us for detail.

Q:  What's the terms of the payment?

T/T, L/C, Western Union, MoneyGram, etc.
