Ductile Iron Y Type Filter Strainer Flanged Strainer

Ductile Iron Y Type Filter Strainer Flanged Strainer thumbnail-1
Ductile Iron Y Type Filter Strainer Flanged Strainer thumbnail-2
Ductile Iron Y Type Filter Strainer Flanged Strainer thumbnail-3
Ductile Iron Y Type Filter Strainer Flanged Strainer thumbnail-4
Ductile Iron Y Type Filter Strainer Flanged Strainer thumbnail-5
Ductile Iron Y Type Filter Strainer Flanged Strainer thumbnail-6
Ductile Iron Y Type Filter Strainer Flanged Strainer photo-1
Ductile Iron Y Type Filter Strainer Flanged Strainer photo-2
Ductile Iron Y Type Filter Strainer Flanged Strainer photo-3
Ductile Iron Y Type Filter Strainer Flanged Strainer photo-4
Ductile Iron Y Type Filter Strainer Flanged Strainer photo-5
Ductile Iron Y Type Filter Strainer Flanged Strainer photo-6
US$ 20 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, filter / strainer, strainer
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Fujian Minshan Fire-Fighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Other, filter / strainer, strainer
Pressure Medium Pressure
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Other, Water, Water,neutral oil
Port Size DN50-DN200
Place of Origin Fujian, China
Model Number Ductile iron flanged Y type strainer
Brand Name Minshan
Application General



Banner

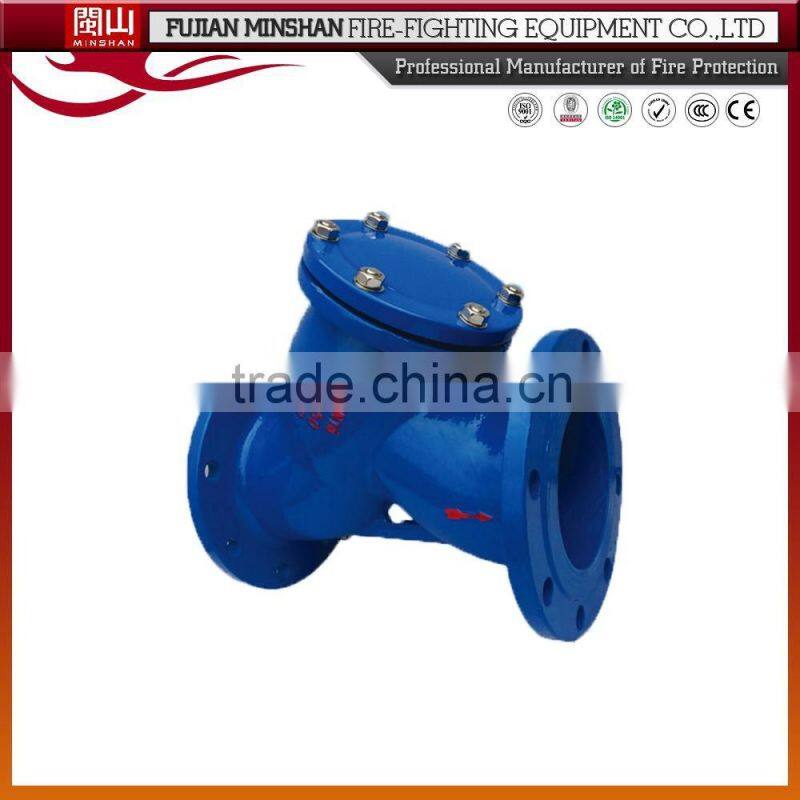

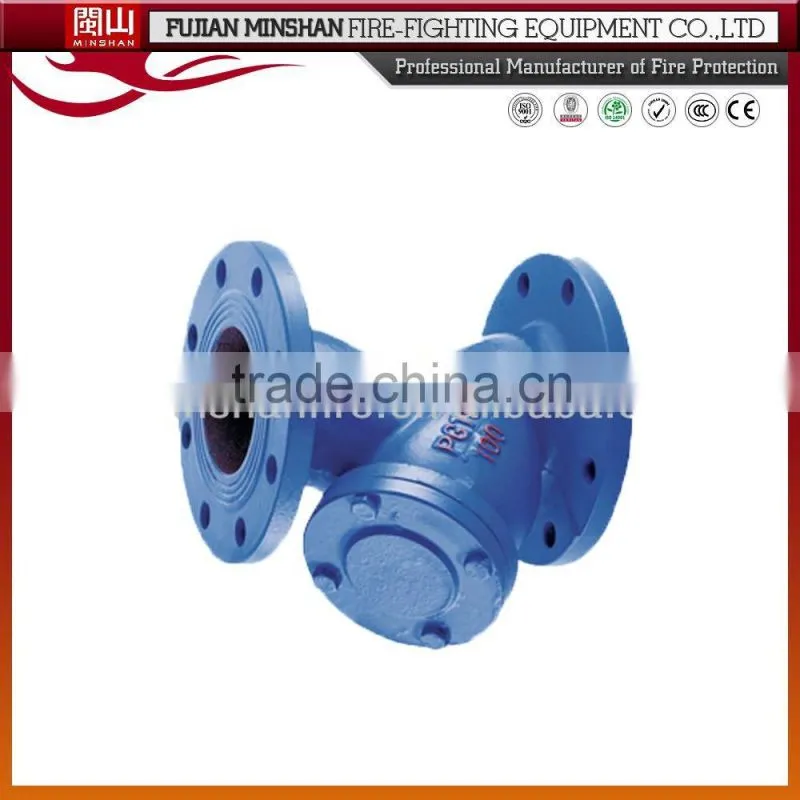

Ductile iron Y type filter strainer flanged strainer

Product Description

 Ductile iron Y type filter strainer flanged  strainer with ISO, CCC Certificates



Ductile iron Y type filter strainer flanged strainer



1. Use





Y type strainer is necessary equipment in piping system for medium delivery. Usually, it is installed at entrance point of reducing valve, pressure release valve, normal value and other devices to clear away impurities in medium in order to protect valves and devices. The strainer has the features of advanced structure, small resistance and convenient pollution discharge.



2. Technical index



water throughout net 18~30
nominal pressure 1.6Mpa
seal test 1.76Mpa
medium temperature ≤80°C
suitable medium water
strength test 2.4Mpa



GL41-16Q flanged strainer

Unit: mm



DN L D1 D2 D n-cd Notes
50 230 125 100 160 4~18 DN
65 280 145 120 180 4~18
80 310 160 135 195 4~18
100 350 180 155 215 4~18
125 381 210 185 245 4~18
150 450 240 210 280 8~23
200 550 295 265 335 12~23



Product Image

 Ductile iron Y type filter strainer flanged strainerDuctile iron Y type filter strainer flanged strainer

Hot Selling Products
Ductile iron Y type filter strainer flanged strainer
Ductile iron Y type filter strainer flanged strainer
Ductile iron Y type filter strainer flanged strainer
Ductile iron Y type filter strainer flanged strainer
Factory View

Ductile iron Y type filter strainer flanged strainerDuctile iron Y type filter strainer flanged strainer

Our Services
Primary Competitive Advantages:
1. Our company has several years's experience in producing all kind of forged brass ball valve and fittings , we have the self-operated importing and exporting rights .
2.Our products are approved by ACS ,CE ,ISO9001/14001 approved .
3.We can produce the fire fighting products according to our customer's requirement, and if the order is large , we don't charge any mould fee .
4. We insist to popularize our brand"Minshan" to our customers , and welcome to become our sales agency , We'll give our customer the special prices once the customer become our approved agency .


Outstanding Service:

 Fast feedback: we promise to reply your inquiry within 24hours

 Positive cooperation with your esteemed company

 Good suggestions to your choice if necessary with our own rich experience

 OEM accepted

 Your visited to factory welcomed!

FAQ

Q:  Are you a factory or trading company?

We are factory specialized on fire fighting equipment.

Q: Can I get a sample?

For certainly, please contact us for detail.

Q:  What's the terms of the payment?

T/T, L/C, Western Union, MoneyGram, etc.
