Help Centery Type Strainer Dimensions
US$ 20 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, filter / strainer, strainer
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Other, filter / strainer, strainer
Pressure
Medium Pressure
Power
Manual
Material
Casting
Temperature of Media
Normal Temperature
Media
Other, Water, Water,neutral oil
Port Size
DN50-DN200
Place of Origin
Fujian, China
Model Number
Ductile iron flanged Y type strainer
Brand Name
Minshan
Specifications
Ductile iron flanged Y type strainer1.Body material : Ductile iron GGG500-7 or Cast Iron GG20
2.Cover : Ductile iron GGG50
Ductile iron flanged Y type strainer
1. Use
Y type strainer is necessary equipment in piping system for medium delivery. Usually, it is installed at entrance point of reducing valve, pressure release valve, normal value and other devices to clear away impurities in medium in order to protect valves and devices. The strainer has the features of advanced structure, small resistance and convenient pollution discharge.
2. Technical index
| water throughout net | 18~30 |
| nominal pressure | 1.6Mpa |
| seal test | 1.76Mpa |
| medium temperature | ≤80°C |
| suitable medium | water |
| strength test | 2.4Mpa |

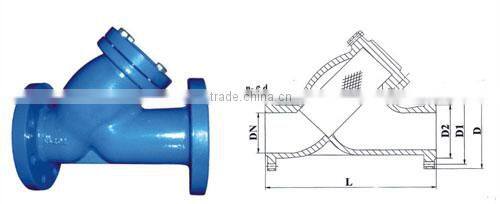

GL41-16Q flanged strainer
Unit: mm
| DN | L | D1 | D2 | D | n-cd | Notes |
| 50 | 230 | 125 | 100 | 160 | 4~18 | DN |
| 65 | 280 | 145 | 120 | 180 | 4~18 | |
| 80 | 310 | 160 | 135 | 195 | 4~18 | |
| 100 | 350 | 180 | 155 | 215 | 4~18 | |
| 125 | 381 | 210 | 185 | 245 | 4~18 | |
| 150 | 450 | 240 | 210 | 280 | 8~23 | |
| 200 | 550 | 295 | 265 | 335 | 12~23 |
