Home > Instruments & Meters > Meter for Electricity > Current Meter > ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter

Name: ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter
Brand: Morning
SKU: 129092433
Availability: InStock

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter thumbnail-1

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter thumbnail-2

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter thumbnail-3

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter thumbnail-4

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter thumbnail-5

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter thumbnail-6

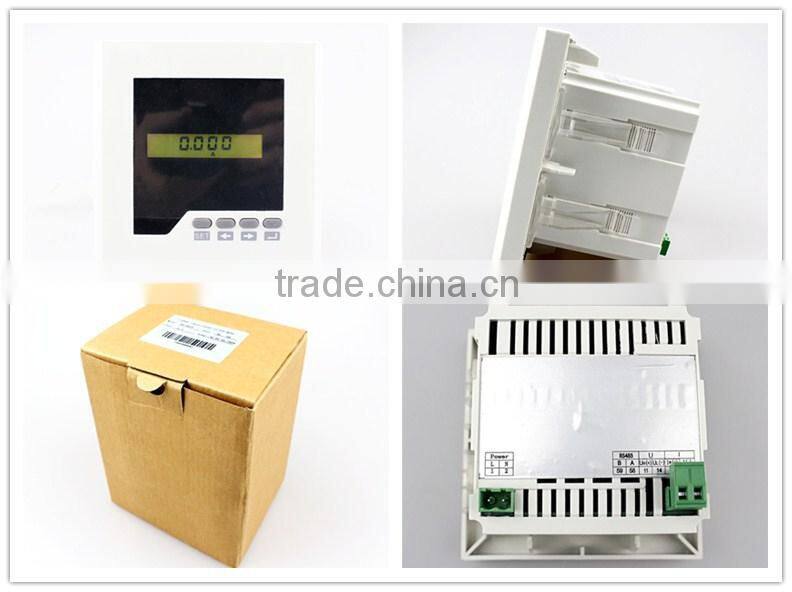

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter photo-1

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter photo-2

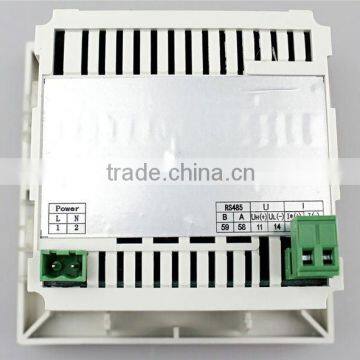

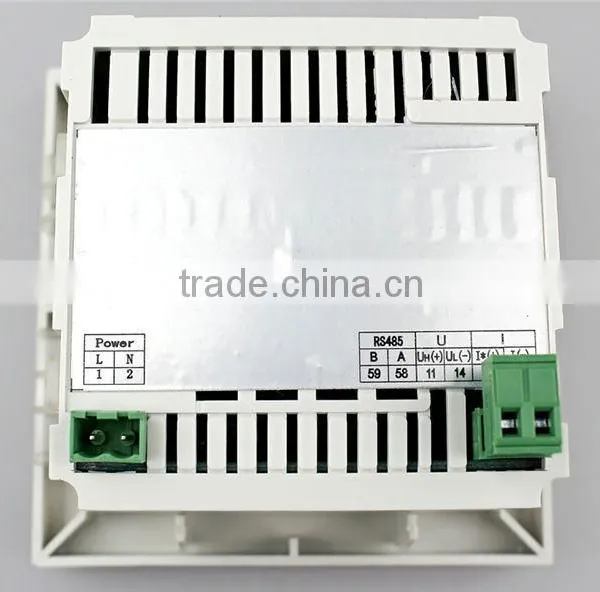

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter photo-3

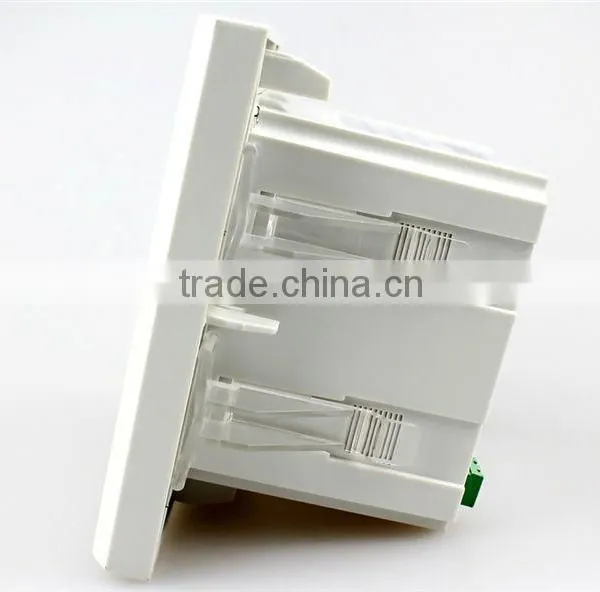

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter photo-4

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter photo-5

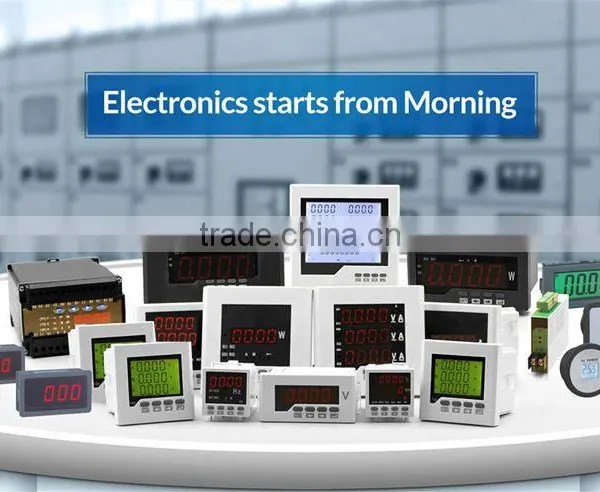

ME-AA2Y Panel Size 120*120mm Whole Price Single-phase LCD Display Ac Digital AMP Meter photo-6

US$ 15.04 - 22.1 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Morning

Model Number:

ME-AA2Y

Contact Supplier Request Quote Chat Now

Wenzhou Morning Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Morning

Model Number ME-AA2Y

Display Type Digital Only

Measuring Range 0-9999

Accuracy Class 0.5

Supply Voltage AC 80V~270V,AC 220V,AC 380V,AC 100V,

Operating Temperature -10℃~+55℃

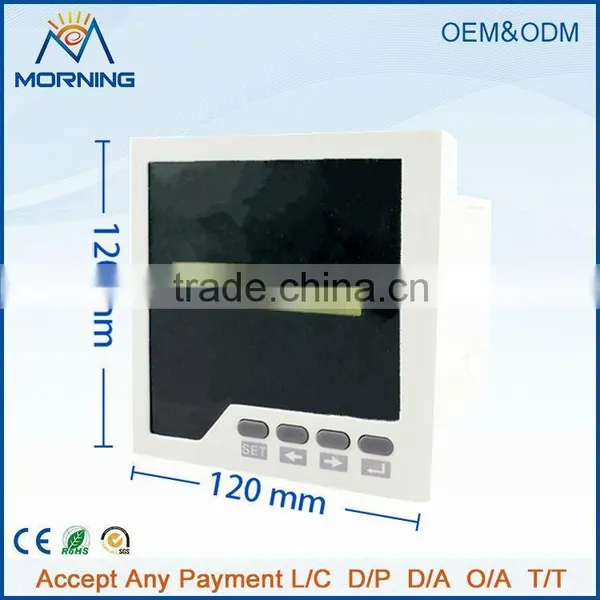

Dimensions 120*120

Product Description

Note

Feature
•Measure single-phase AC current with high-precision.
•Provide LCD display and local data query.
•Programmable current transformation ratio.
•Support RS-485 communications and Modbus-RTU protocol.
•Support switch input, switch output and analog output.
•Power supply: AC 80V~270V ,AC 220V,AC 380V,AC 100V
•There are various choices of dimensions to meet the requirements of different electrical circuit enclosure.
Technical Index
Accuracy Measurement
Current			class 0.5
Input Measurement
Wiring			single phase
Rated value			AC 1A,AC 5A,DC 20mA
Overload			Sustained:1.2times;Instantaneous:10times/5s
Power consumption			<0.4VA(per phase)
Impedance			<20 mΩ
Frequency			45~65Hz
Power supply
Working range			AC 80V~270V,AC 220V,AC 380V,AC 100V
Power consumption			<4VA
Functional Module
Communication interface			1 loop RS-485 Communication, MODBUS-RTU protocol
			Baud rate: 2400 ~ 19200bps, Default: 2400bps
Switching value input			2 loops switching value input, dry joint
Switching value output			2 loops relay output, capability: AC 250V/5A
Transmission output			1 loop analog output: 0/4~20 mA or 0~5/10 V
Environment
Operational environment			-10℃~+55℃
Storage environment			-25℃~+70℃
Relative humidity			≤93 %,in the place without corrosive gas
Height above sea level			≤2500m
Safety
Insulation resistance			> 100MΩ
AC withstand voltage			AC 2KV
Electro Magnetic Compatibility
Electro-Static discharge			class 4
Electrical Fast Transient pulse train			class 4
Electrical surge			class 4

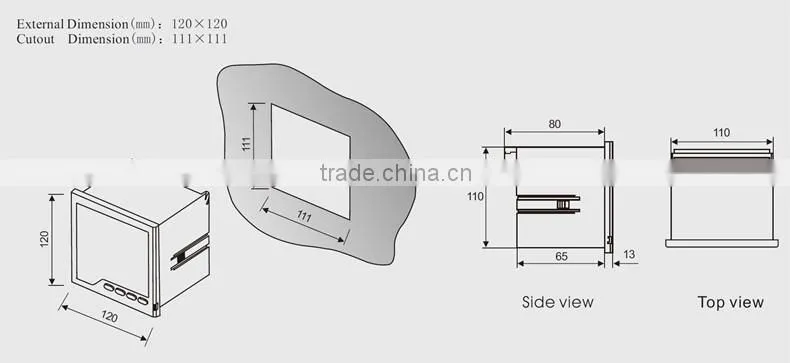

Outline Dimension
External Dimension( mm )			120×120;80×80;96×48;96×96;72×72;48×48;120x60;160x80
Cutout Dimension( mm )			111×111;76×76;92×45;92×92;68×68;45×45;114x56;152x76
Specification Matching
Model Function	Measurement			Extended Function(Optional)				Display		Cutout Dimension ( mm )	External Dimension ( mm )
	AC	DC		Switch input	Switch output	Transmission output	Communication interface	LED	LCD
ME-AA11	√	-		2	2	1	1	√	-	152X76	160x80
ME-DA11	-	√		2	2	1	1	√	-
ME-AA21	√	-		2	2	1	1	√	-	111X111	120×120
ME-DA21	-	√		2	2	1	1	√	-
ME-AA31	√	-		2	2	1	1	√	-	92X92	96×96
ME-DA31	-	√		2	2	1	1	√	-
ME-AA41	√	-		2	2	1	1	√	-	114X56	120x60
ME-DA41	-	√		2	2	1	1	√	-
ME-AA51	√	-		2	2	1	1	√	-	92X45	96×48
ME-DA51	-	√		2	2	1	1	√	-
ME-AA61	√	-		2	2	1	1	√	-	68X68	72×72
ME-DA61	-	√		2	2	1	1	√	-
ME-AA71	√	-		2	2	1	1	√	-	76X76	80×80
ME-DA71	-	√		2	2	1	1	√	-
ME-AA81	√	-		2	2	1	1	√	-	45X45	48×48
ME-DA81	-	√		2	2	1	1	√	-
Note: The number of optional extended functions would be the maximum number we can extend in normal conditions. If you have any special request, please contact with our technical department.
