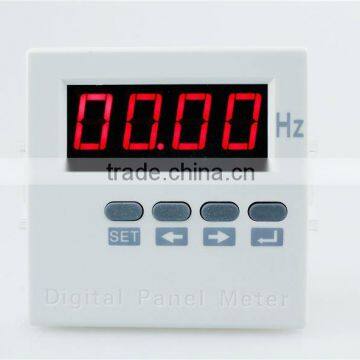

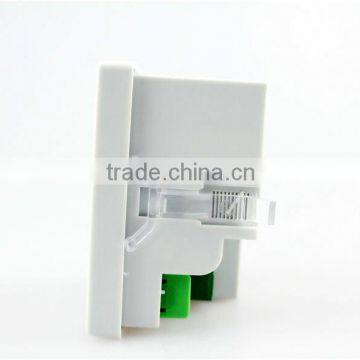

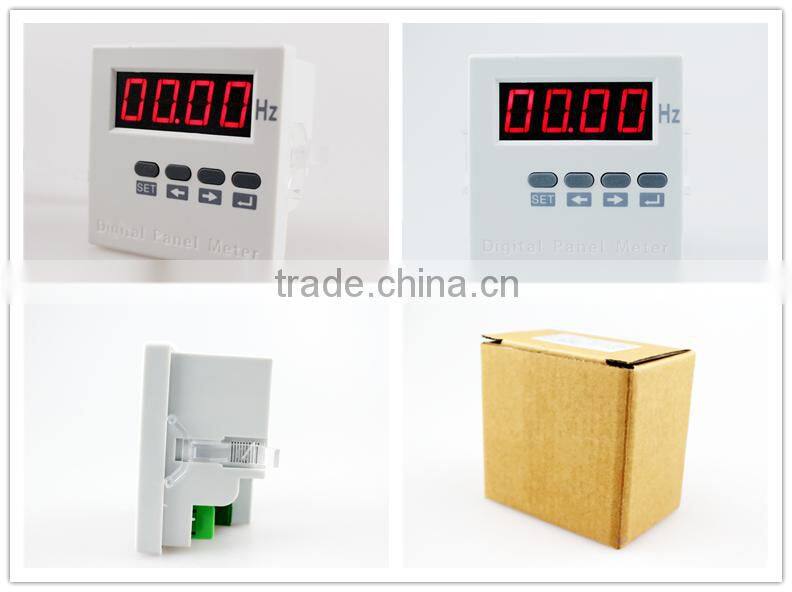

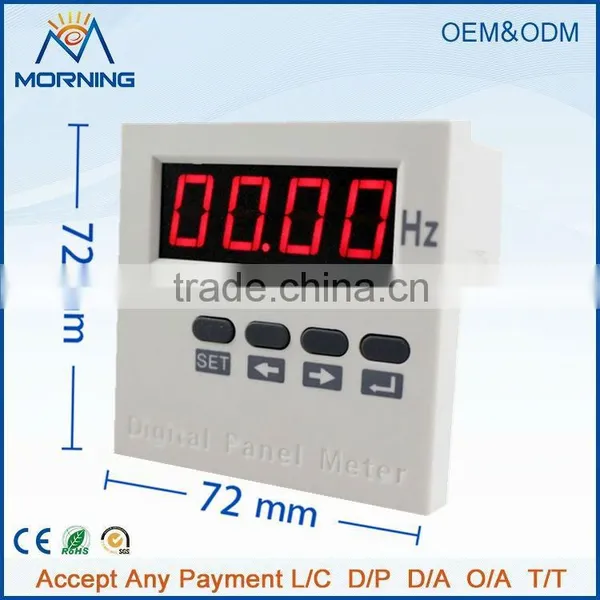

ME-F61J 72*72mm economy type LED display digital frequency meter

Feature

•Measure single-phase AC current or DC current,single-phase AC voltage or DC voltage,frequency with high-precision.

•Provide LED display and local data query.

•Programmable current transformation ratio.

•Power supply: AC/DC 85V~265V ,AC 220V,DC 48V,DC24V

  Technical Index

Accuracy Measurement

Accuracy Measurement

 class 0.5

Input Measurement

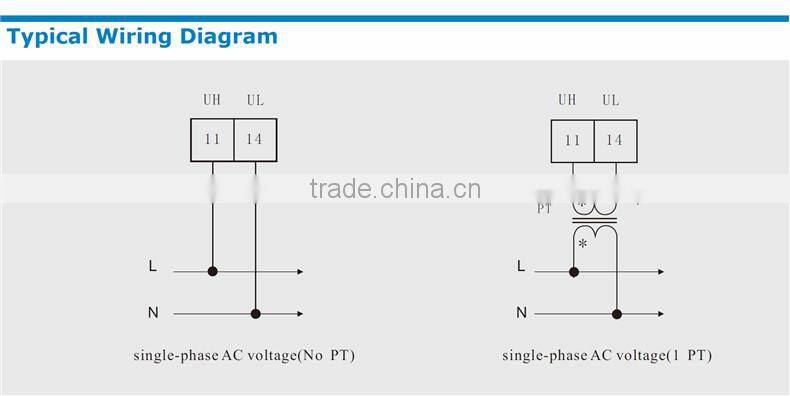

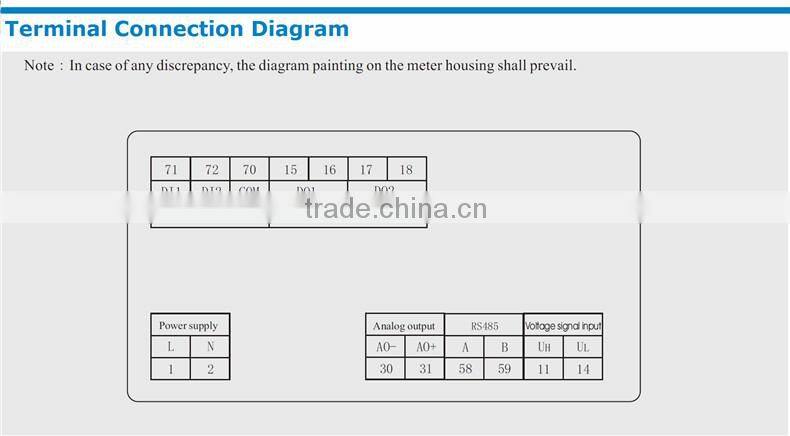

Wiring

single phase

Rated value

AC 1A,AC 5A,DC 20mA,DC 1A,DC 5A,DC 75mV

AC 57.7V,AC 100V,AC 220V,AC 380V,AC 600V

DC 2V,DC 20V,DC200V,DC 600V

Overload

Sustained:1.2times;Instantaneous:10times/5s

Power consumption

<0.4VA(per phase)

Impedance

<20 mΩ

Frequency

45~65Hz or DC

Power supply

Working range

AC/DC 85V~265V ,AC 220V,DC 48V,DC 24V

Power consumption

<4VA

Environment

Operational environment

-10℃~+55℃

Storage environment

-25℃~+70℃

Relative humidity

≤93 %,in the place without corrosive gas

Height above sea level

≤2500m

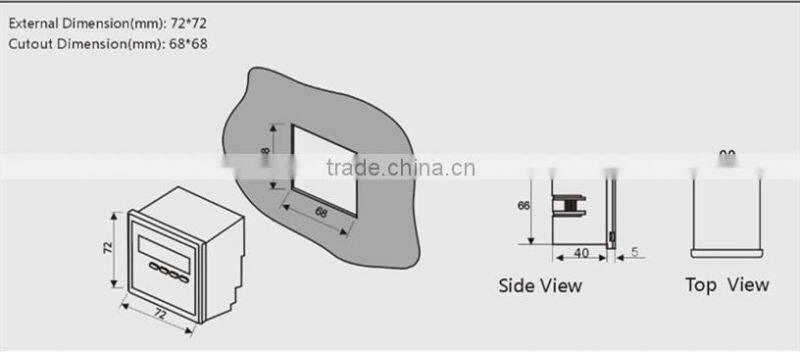

Outline Dimension

External Dimension( mm )

96×96;72×72

Cutout Dimension( mm )

92×92;68×68

Specification Matching

Name

  Model

Frame Size

(mm)

QTY

(Piece)

Packing Size(cm)

GW(kg)

NW(kg)

Auxiliary power supply

Single-phase AC voltmeter

ME-AV61J

72×72

80

41.0×35.0×27.0

13.6

12.4

AC

10.4

9.2

DC

ME-AV31J

96×96

80

54.0×34.8×33.8

15.6

14.4

AC

12.4

11.2

DC

Single-phase DC voltmeter

ME-DV61J

72×72

80

41.0×35.0×27.0

13.6

12.4

AC

10.4

9.2

DC

ME-DV31J

96×96

80

54.0×34.8×33.8

15.6

14.4

AC

12.4

11.2

DC

Single-phase AC ammeter

ME-AA61J

72×72

80

41.0×35.0×27.0

13.6

12.4

AC

10.4

9.2

DC

ME-AA31J

96×96

80

54.0×34.8×33.8

15.6

14.4

AC

12.4

11.2

DC

 Single-phase DC ammeter

ME-DA61J

72×72

80

41.0×35.0×27.0

13.6

12.4

AC

10.4

9.2

DC

ME-DA31J

96×96

80

54.0×34.8×33.8

15.6

14.4

AC

12.4

11.2

DC

Frequecy meter

ME-F61J

72×72

80

41.0×35.0×27.0

13.6

12.4

AC

10.4

9.2

DC

ME-F31J

96×96

80

54.0×34.8×33.8

15.6

14.4

AC

12.4

11.2

DC
