Place of Origin Zhejiang, China
Brand Name Morning
Model Number ME-DA81
Display Type Digital Only
Measuring Range 0~9999
Accuracy Class 0.5
Supply Voltage AC / DC 80V~270V ,AC 220V,AC 380V,AC 100V,DC 48V,DC24V
Operating Temperature -10℃~+55℃

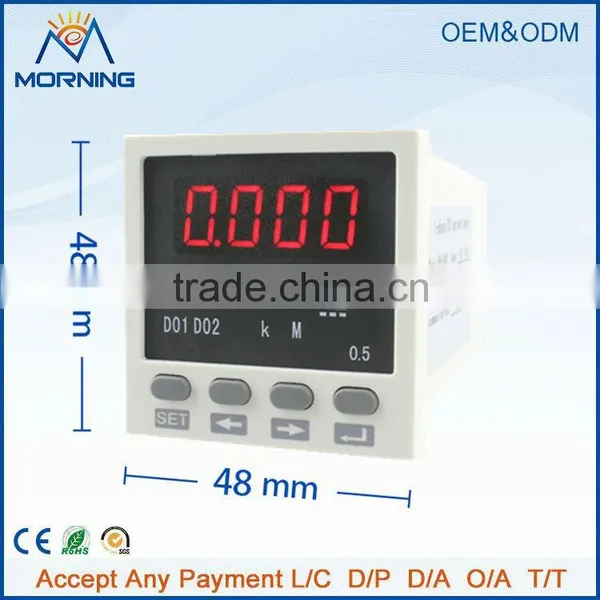

Dimensions 48*48mm

ME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precision

Product Description



ME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precisionME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precisionME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precisionME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precisionME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precision

Note

ME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precisionME-DA81 48*48mm hot sale LED price single phase dc digital current meter, Measure AC or DC current with high-precision

Feature

•Measure single-phase AC current or DC current with high-precision.

•Provide LED display and local data query.

•Programmable current transformation ratio.

•Support RS-485 communications and Modbus-RTU protocol.

•Support switch input, switch output and analog output.

•Power supply: AC / DC 80V~270V ,AC 220V,AC 380V,AC 100V,DC 48V,DC24V

•There are various choices of dimensions to meet the requirements of different electrical circuit enclosure.

Technical Index

Accuracy Measurement

Current

 class 0.5

Input Measurement

Wiring

single phase

Rated value

AC 1A,AC 5A,DC 20mA,DC 1A,DC 5A,DC 75mV

Overload

Sustained:1.2times;Instantaneous:10times/5s

Power consumption

<0.4VA(per phase)

Impedance

<20 mΩ

Frequency

45~65Hz or DC

Power supply

Working range

AC/DC 80V~270V,AC 220V,AC 380V,AC 100V,DC 48V,DC 24V

Power consumption

<4VA

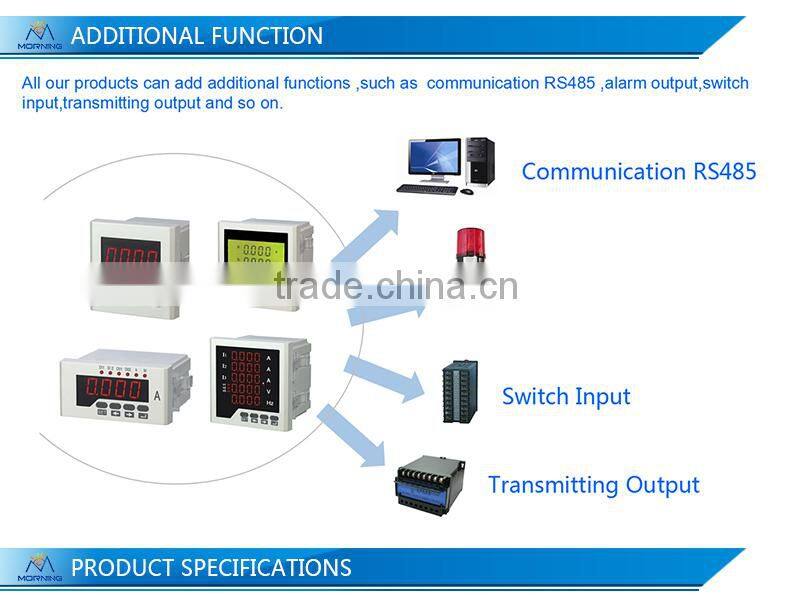

Functional Module

Communication interface



1 loop RS-485 Communication, MODBUS-RTU protocol

Baud rate: 2400 ~ 19200bps, Default: 2400bps

Switching value input

2 loops switching value input, dry joint

Switching value output

2 loops relay output, capability: AC 250V/5A,DC 30V/5A

Transmission output

1 loop analog output: 0/4~20 mA or 0~5/10 V

Environment

Operational environment

-10℃~+55℃

Storage environment

-25℃~+70℃

Relative humidity

≤93 %,in the place without corrosive gas

Height above sea level

≤2500m

Safety

Insulation resistance

> 100MΩ

AC withstand voltage

AC 2KV

Electro Magnetic Compatibility

Electro-Static discharge

class 4

Electrical Fast

Transient pulse train

class 4

Electrical surge

class 4

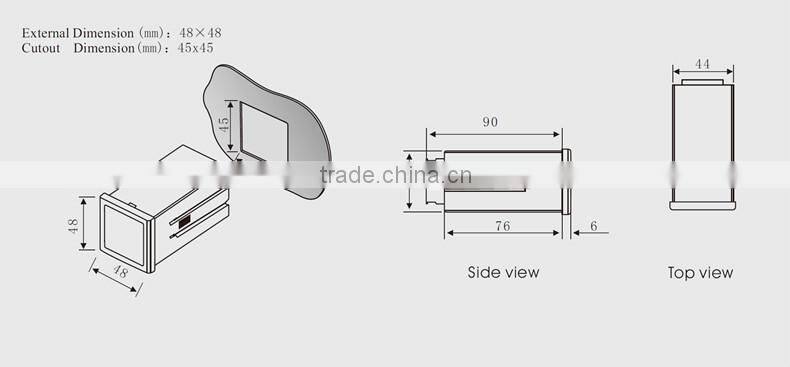

Outline Dimension

External Dimension( mm )

120×120;80×80;96×48;96×96;72×72;48×48;120x60;160x80

Cutout Dimension( mm )

111×111;76×76;92×45;92×92;68×68;45×45;114x56;152x76

Specification Matching





Model

Function

Measurement

Extended Function(Optional)

Display

Cutout

Dimension(mm)

External

Dimension(mm)



AC

DC

Switch

input

Switch

output

Transmission

output

Communication

interface

LED

 LCD





ME-AA11

√

-

2

2

1

1

√

-

152X76

160x80

ME-DA11

-

√

2

2

1

1

√

-





ME-AA21

√

-

2

2

1

1

√

-

111X111

120×120

ME-DA21

-

√

2

2

1

1

√

-





ME-AA31

√

-

2

2

1

1

√

-

92X92

96×96

ME-DA31

-

√

2

2

1

1

√

-





ME-AA41

√

-

2

2

1

1

√

-

114X56

120x60

ME-DA41

-

√

2

2

1

1

√

-





ME-AA51

√

-

2

2

1

1

√

-

92X45

96×48

ME-DA51

-

√

2

2

1

1

√

-





ME-AA61

√

-

2

2

1

1

√

-

68X68

72×72

ME-DA61

-

√

2

2

1

1

√

-





ME-AA71

√

-

2

2

1

1

√

-

76X76

80×80

ME-DA71

-

√

2

2

1

1

√

-





ME-AA81

√

-

2

2

1

1

√

-

45X45

48×48

ME-DA81

-

√

2

2

1

1

√

-





   Note: The number of optional extended functions would be the maximum number we can extend in normal conditions.

         If you have any special request, please contact with our technical department.
