Home > Instruments & Meters > Meter for Electricity > Current Meter > Digital Shunt Manufacturers ac Ammeter

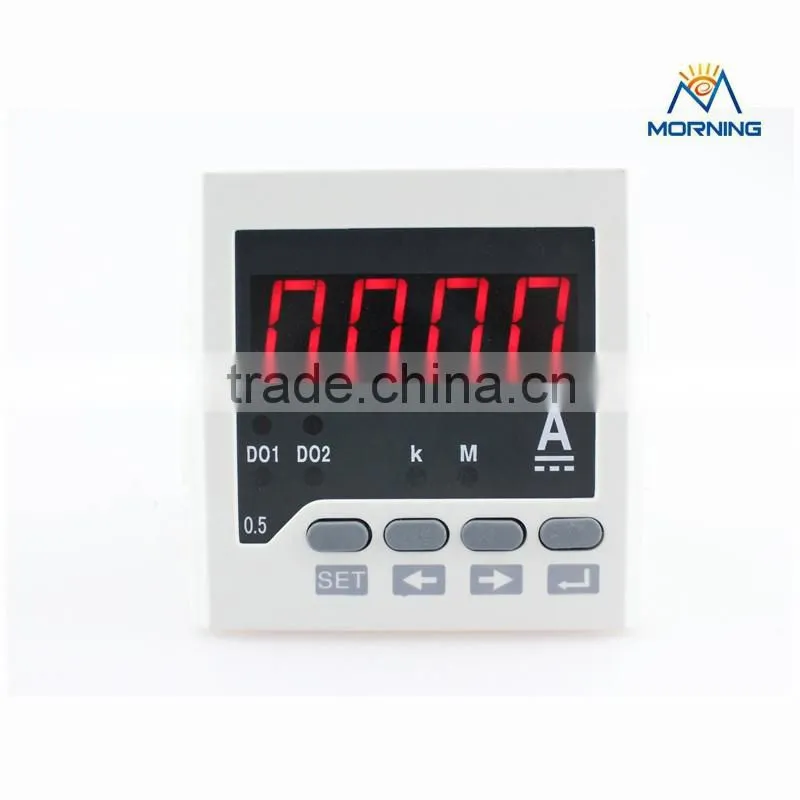

Digital Shunt Manufacturers ac Ammeter

Name: Digital Shunt Manufacturers ac Ammeter
Brand: Morning
SKU: 129092003
Availability: InStock

Digital Shunt Manufacturers ac Ammeter thumbnail-1

Digital Shunt Manufacturers ac Ammeter thumbnail-2

Digital Shunt Manufacturers ac Ammeter thumbnail-3

Digital Shunt Manufacturers ac Ammeter thumbnail-4

Digital Shunt Manufacturers ac Ammeter thumbnail-5

Digital Shunt Manufacturers ac Ammeter thumbnail-6

Digital Shunt Manufacturers ac Ammeter photo-1

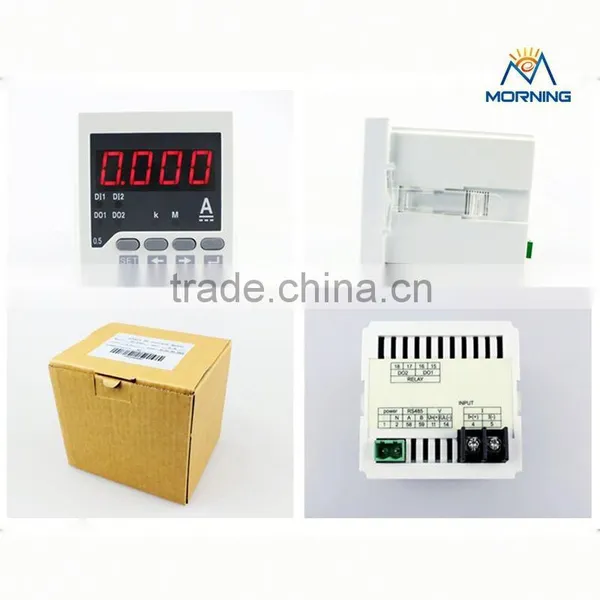

Digital Shunt Manufacturers ac Ammeter photo-2

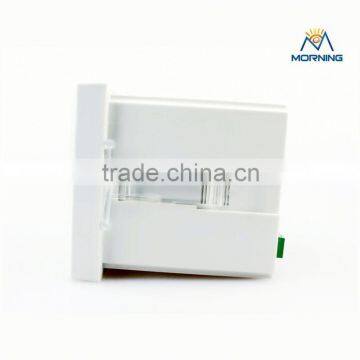

Digital Shunt Manufacturers ac Ammeter photo-3

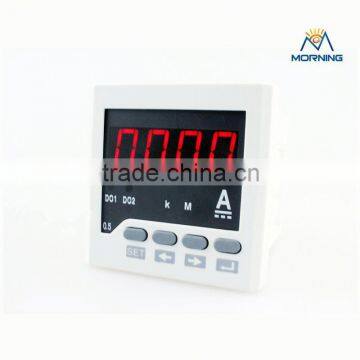

Digital Shunt Manufacturers ac Ammeter photo-4

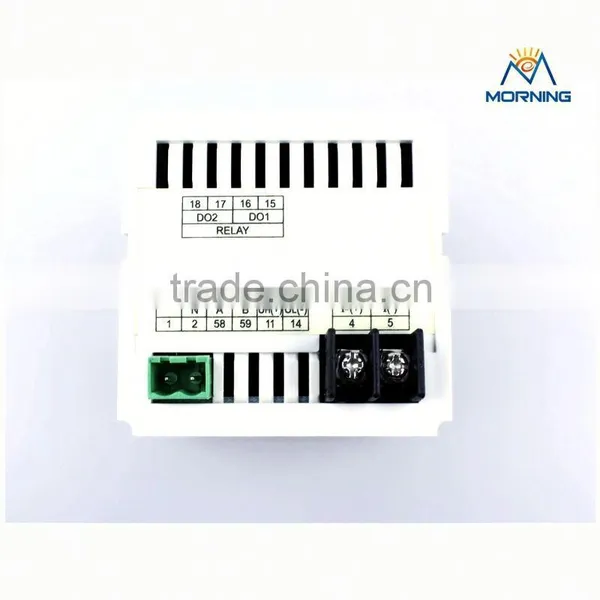

Digital Shunt Manufacturers ac Ammeter photo-5

Digital Shunt Manufacturers ac Ammeter photo-6

US$ 6 - 8.8 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Morning

Model Number:

ME-DA61

Contact Supplier Request Quote Chat Now

Wenzhou Morning Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Morning

Model Number ME-DA61

Display Type Digital Only

Measuring Range 0~9999

Accuracy Class 0.5

Supply Voltage AC/DC 80V~270V,AC 220V,AC 380V,AC 100V,DC 48V,DC 24V

Operating Temperature (-10℃~+55℃)

Dimensions 72*72

Technical Index
Accuracy Measurement
Current	class 0.5
Input Measurement
Wiring	single phase
Rated value	AC 1A,AC 5A,DC 20mA,DC 1A,DC 5A,DC 75mV
Overload	Sustained:1.2times;Instantaneous:10times/5s
Power consumption	<0.4VA(per phase)
Impedance	<20 mΩ
Frequency	5~65Hz or DC
Power supply
Working range	AC/DC 80V~270V,AC 220V,AC 380V,AC 100V,DC 48V,DC 24V
Power consumption	<4VA

Functional Module
Communication interface	1 loop RS-485 Communication, MODBUS-RTU protocol
Communication interface	Baud rate: 2400 ~ 19200bps, Default: 2400bps
Switching value input	2 loops switching value input, dry joint
Switching value output	2 loops relay output, capability: AC 250V/5A,DC 30V/5A
Transmission output	1 loop analog output: 0/4~20 mA or 0~5/10 V
Environment
Operational environment	-10℃~+55℃
Storage environment	-25℃~+70℃
Relative humidity	≤93 %,in the place without corrosive gas
Height above sea level	≤2500m
Safety
Insulation resistance	> 100MΩ
AC withstand voltage	AC 2KV
Electro Magnetic Compatibility
Electro-Static discharge	class 4
Electrical Fast Transient pulse train
Electrical surge
Outline Dimension
External Dimension( mm )	120×120;80×80;96×48;96×96;72×72;48×48;120x60;160x80
Cutout Dimension( mm )	111×111;76×76;92×45;92×92;68×68;45×45;114x56;152x76

Specification Matching
Model Function	Measurement		Extended Function(Optional)				Display		Cutout Dimension (mm)	External Dimension(mm)
	AC	DC	Switch input	Switch output	Transmission output	Communication interface	LED	LCD
ME-AA11	√	-	2	2	1	1	√	-	152X76	160x80
ME-DA11	-	√
ME-AA21	√	-							111X111	120×120
ME-DA21	-	√
ME-AA31	√	-							92X92	96×96
ME-DA31	-	√
ME-AA41	√	-							114X56	120x60
ME-DA41	-	√
ME-AA51	√	-							92X45	96×48
ME-DA51	-	√
ME-AA61	√	-							68X68	72×72
ME-DA61	-	√
ME-AA71	√	-							76X76	80×80
ME-DA71	-	√
ME-AA81	√	-							45X45	48×48
ME-DA81	-	√
Note: The number of optional extended functions would be the maximum number we can extend in normal conditions.If you have any special request, please contact with our technical department.

Digital panel meter
Munifunction meter:

D 3D 3HD 3FHD 3LD DD
Combination meter:

UIF 3UIF DUI

    Temperature and humidity controller:
    WSK301 WSK302 WSK303
    Voltage meter:

DV AV 3AV
Current meter:

DA AA 3AA
Frequency meter:

F
Power meter:

P 3P Q 3Q H 3H
Power transducer:

AI,DI,AV,DV,P,F,PF,3I,3V,3P,3Q,Z
Economical digital meter:

AV DV DA AA F

Shunt:
Current Transformer:

We are a professional manufacturer of Digital Panel Meter for many years. Our company has formed a perfect full-service system integrated by the R&D, manufacture and domestic trading and foreign sales.Based on the trading belief 'Focus on customers,' our company has been calmly handled the market oscillations. For our trading process, we are not just selling our product but also focusing on customers' satisfaction......
