JFgood price paint oven booth portable wide space painting baking ( CE certification 2 years warranty time)

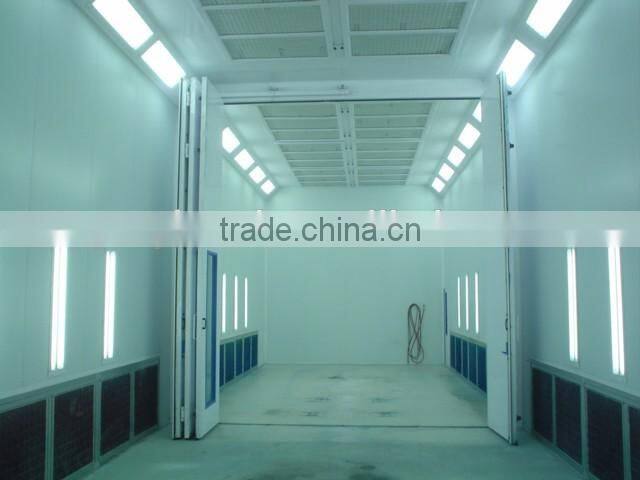

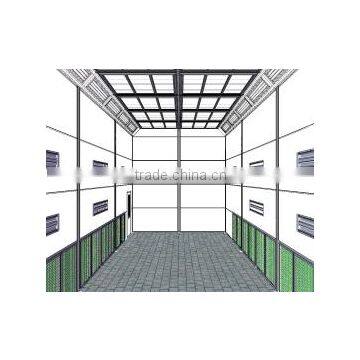

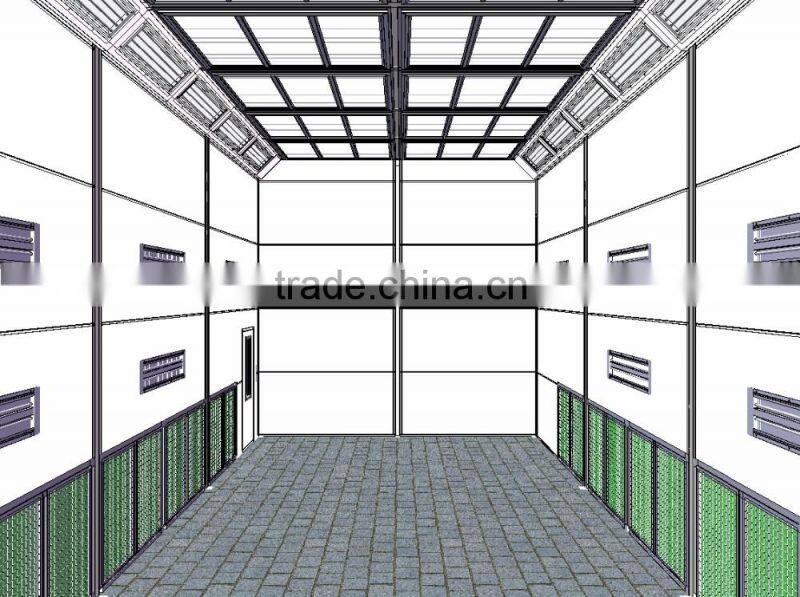

Product picture

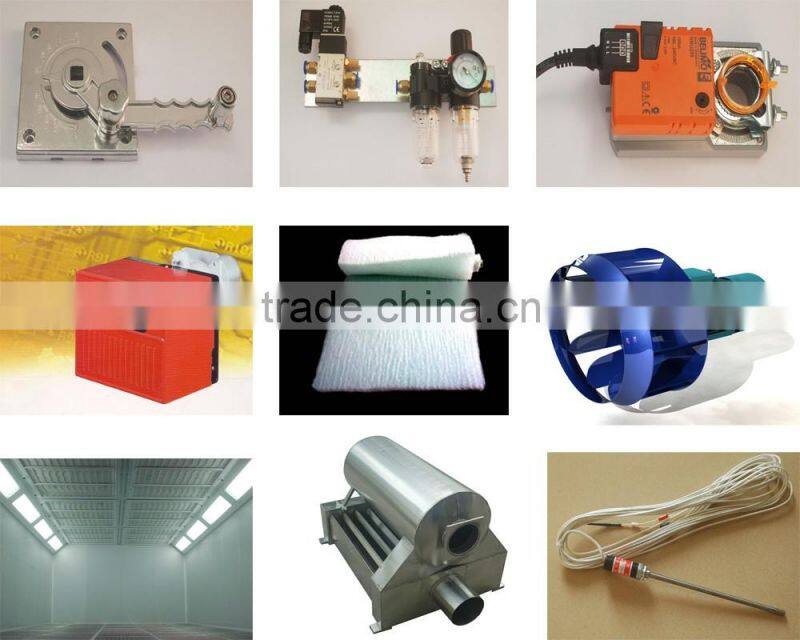

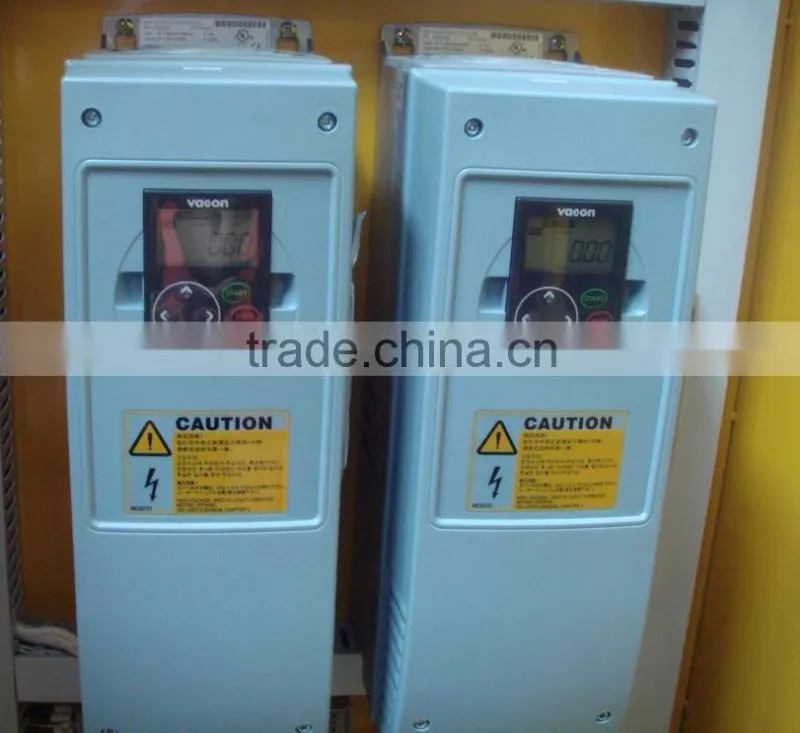

Product components
Specification
Model: JF 15A
Design Standard |
BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009 |
Cabin size |
|
inside size |
15000×5000×5000mm(L×W×H ) |
outside size |
15150×7020×5800mm(L×W×H ) |
Basement |
|
Foundation |
Without floor grid, with air collecting boxes in double side. |
Filter surface area |
27.8M2 |
cabin |
|
Cabin structure |
Wallboard horizontal plug |
Plenum height |
800mm |
Wallboard |
|
Wallboard |
60mm,wallboard fill with EPS |
Ceiling board |
50mm,wallboard fill with EPS |
Edge |
1.5mm Galvanized sheet bending forming |
Service Door |
|
Gate form |
Frame structure service door |
Gate size |
800×2000 mm (W×H) |
Arrangement and quantity |
2 sets |
Description |
With safe glass observation window |
Main Door |
|
Gate form |
Manual door, 2+2 Folio style |
Gate size |
4300×4900 mm(W×H) |
Arrangement and quantity |
1 sets for Workpiece |
Description |
Containing the skeleton,filled with EPS |
Side lighting |
|
Quantity and Power |
16units, each unit 2×36W, total 1152W |
Light arrangement |
on both sides |
Lighting description |
IP55 protection grade, CE certification, electronic rectifier, Osram tubes |
Ceiling lighting |
|
Quantity and Power |
20units, each unit 4×36W, total 2880W |
Light arrangement |
on both sides |
Lighting description |
IP55 protection grade, CE certification, electronic rectifier, Osram tubes |
Total Brightness |
>1200Lux |
Filtration System |
|
Pre-filters |
Grade G3 pocket type filter system |
Ceiling filter |
F5 grade filter , filter model : SP-600G |
Exhaust Fan Filter |
Resistance of cotton fiber glass mat,with Ventilate large,Small resistance and Flammability |
|
Ventilation system ( air supply system) |
|
Inlet fan form |
Direct turbo fan |
|
Inlet fan Power and motor description |
2X7.5kW,970 rpm, 380 V, 50 Hz |
|
Specification of Inlet fan |
650pa , 2X28000 m3/h |
|
Ventilation system ( exhaust system) |
|
Outlet fan form |
Direct turbo fan |
|
outlet fan Power and motor description |
2X7.5kW,970 rpm, 380 V, 50 Hz |
|
Specification of outlet fan |
650pa , 2X28000 m3/h |
Empty load air flow speed |
+/- 0.20m |
Heating system |
|
Heating Exchanger |
Adopt stainless steel 1Gr18Ni9Ti(SUS304) |
Heating Exchange Capacity |
2X186KW |
T warming up capacity |
20°C(from-10°C to 20°C under painting status) |
Max working temperature |
80°C |
Heating time |
8-16 mins (from20°C to 60°C under baking status) |
Burner Model |
Adopt Italy RIELLO diesel burner RG5S, (260.000kcal/H), quicker heating and much better effect, more rest assure for quality |
Noise |
<78 Decibel |
Pipeline configuration |
|
Straight pipe |
8 sections |
90°pipe |
2 section |
45°pipe |
2 section |
Changing pipe |
4 section |
Electric damper |
1 section |
Manual damper |
1 section |

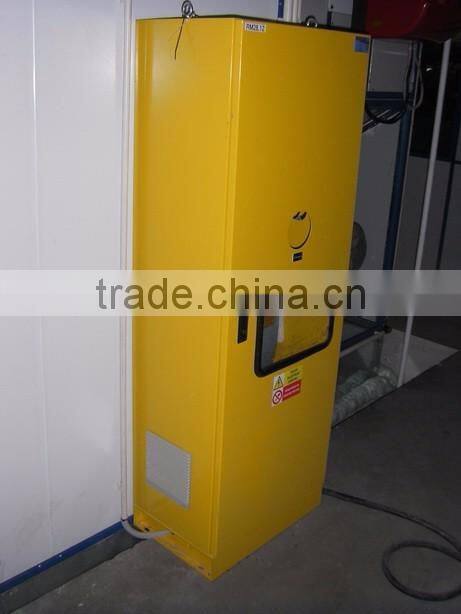

Control system |
|
Implementation of standards |
|
PLC (programmable logic controller) |
yes, lower PLC control, higher reliability, failure rate |
Distribution facilities |
CE standard connection cable, junction box, line pipe and accessories traces |
Pressure detection |
Pressure gauge indicates the pressure in room |
Function |
Painting, heating paint, baking, leveling, emergency stop switch, fault indication, over-temperature alarm indication, baking shutdown delay protection |

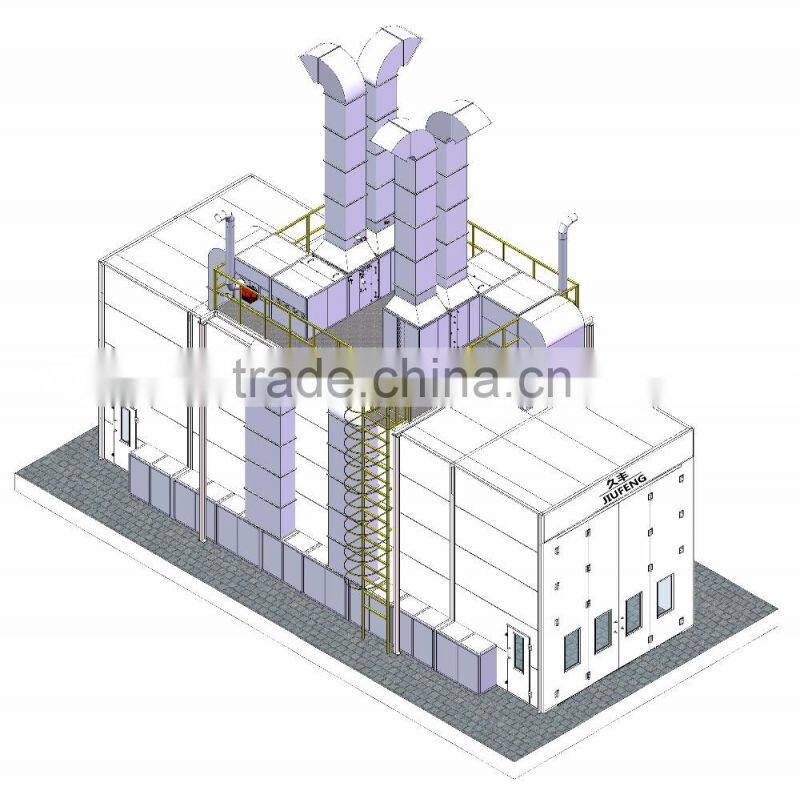

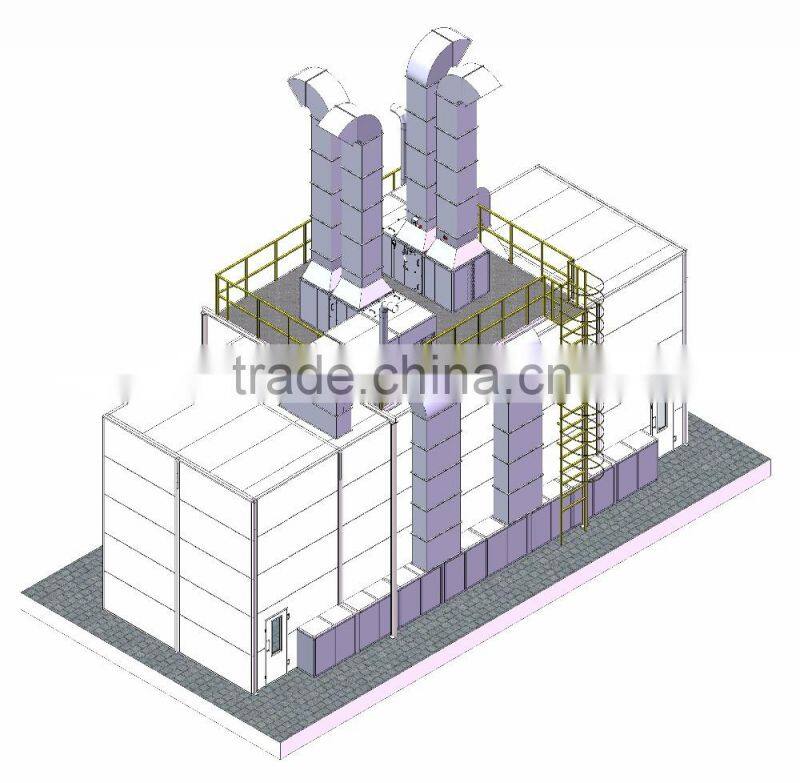

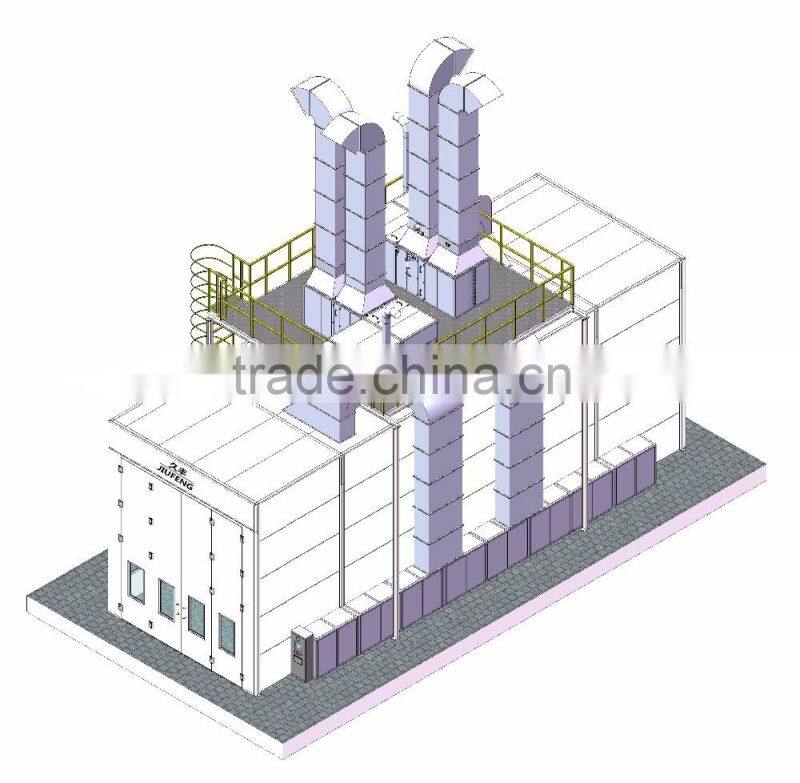

Special note project |
Overhead cabinets, steel platform carrying |
Steel platform |
(on the top of the booth) |
Steel platform forms |
250X250 beam, bolt connection |
steel platform height |
6570mm |
Protective railing and ladder |
|
Design form |
1.5mm of 50X50 square tube welded |
Height dimension |
Ladder high 6570mm, 1200mm high fence |
Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish.
