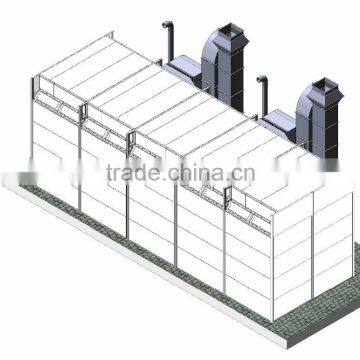

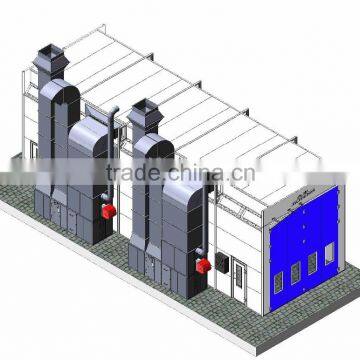

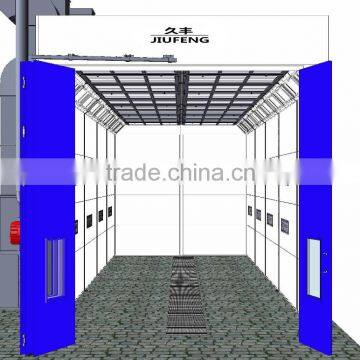

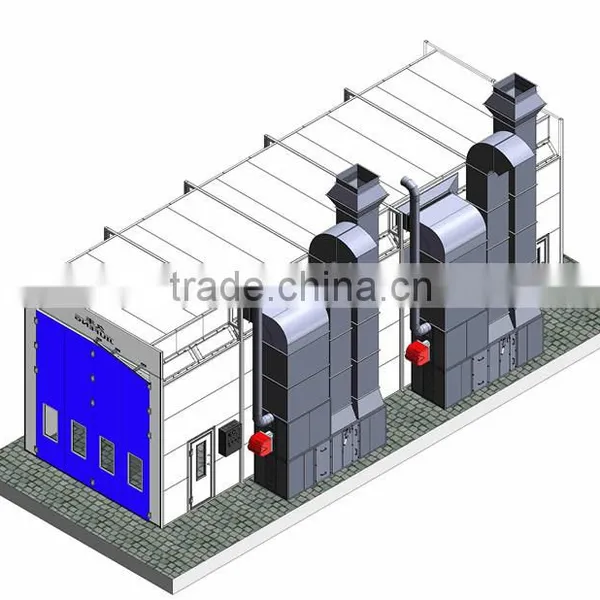

JF wide paint bake room car/bus/truck/furniture painting baking spray booth clean cabinet
Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .
Specification
Model: JF 15D
| Booth Dimensions | |
|---|---|
| - Internal Size(LxBxH) | 15000x5000x5000mm |
| - External Size(LxBxH) | 15150x7700x5900 mm |
| Foundation and Floor | |
| - Loading Capacity of Galvanized Grating | NO |
| - Surface Area | 33M² ( 2 rows air exhust plenum chamber) |
| - Metal Basement | NO |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Steel Wall and Roof Panel | Double Construction with Insulations EPS 50mm |
| - Thickness | Double Construction with Insulations EPS 50mm |
| - Folded Entrance Door With Safety Glass Window | 3200x2700 mm(BxH) |
| - Operator’s Door With Safety , Glass Window | 800x2000 mm(BxH) |
| Lighting | |
| - Ceiling Lightings | 8 Units, each 4x36 W, Total 1152W |
| - Side Lightings | 8 Units, each 2x36 W, Total 576W |
| - Brightness | >1000 Lux, IP54 Grade |
| Filtration | |
| - Prefilters | Fiberglass,Paint-Stop-Filters Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fiberglass, Paint-Stop-Filters |
| Ventilation System | |
| - Direct Drive Motor (Fresh Air) | 2x7.5KW,970RPM,380V,50HZ motor certification:CE |
| - Direct Drive Motor (Exhaust Air) | 2x7.5KW,970RPM,380V,50HZ Domestic motor certification:CE |
| - Fan Capacity | 50.000m³/h |
| - Air Flow Speed | +/- 0.20 m/sin an empty booth |
| Heating System | |
| - Heating Exchanger | Stainless Steel 1Gr18Ni9Ti |
| - Heating Exchange Capacity | 2x232KW(260.000kcal/H)RIELLO |
| - Max. Drying Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60°C) by Drying Phase |
| - Heating Type (on option) | Diesel / Gas Burner |
| Control Board | |
| - Control system | Stander control Delta Depressurization start system EN60204-1-2006 |
| - Function | Spraying ,baking, warming spray paint, emergency stop switch |
| - PLC | yes |
| - Inverter control | On option |
| - Import element | master device import element |
| - Overpressure Manometer | yes |
| - Alarm equipment | yes |
We are professional manufacturer for 12 years in China
Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
Service time: Life long maintenance
Q1: What's the sort of heating types?
JF reply: There are diesel, gas and electricity(infrared lamp) heating.
Q2: Does the JF spray booth with the European design ?
JF reply: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q3: What are range of the voltage and power for JF spray booth when operating?
JF reply: the standard voltage and power for our products is 220V 50HZ 1PH for lights (Residential voltage), 380V 50HZ 3PH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q4: For the customer-design spray booth for other workpieces, does JF could provide?
JF reply: Absolutely yes, JF has the professional team with 12 years of design experience. JF may design according to customers requirements of spray booth for car, bus, big iron workpieces, wooden furniture etc.
