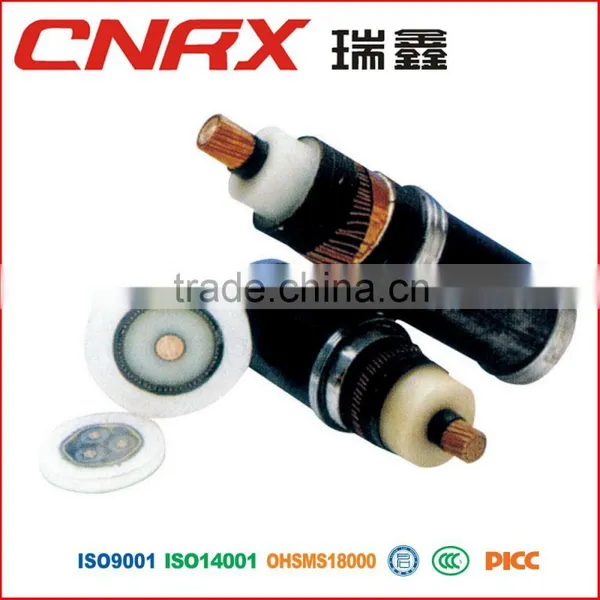

Made in China Yueqing Ruixin Group 0.6/1 kv Cu / AI Conductor XLPE Insulated PVC / PE Sheath Single Core Power Cable

Made in China Yueqing Ruixin Group 0.6/1 kv Cu / AI Conductor XLPE Insulated PVC / PE Sheath Single Core Power Cable thumbnail-1
Made in China Yueqing Ruixin Group 0.6/1 kv Cu / AI Conductor XLPE Insulated PVC / PE Sheath Single Core Power Cable photo-1
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CNRX
Model Number:
YJV,YJY,YJLV,YJLY
Contact Supplier Request Quote Chat Now
Ruixin Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI . etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CNRX
Model Number YJV,YJY,YJLV,YJLY
Insulation Material XLPE
Type Low Voltage
Application Construction
Conductor Material Other, Cu / AI
Jacket Other, PE / PVC, PVC / PE

Specifications

YJV type series high voltage cable
1.Certificate:ISO,CE,GB/T
2.Asia,South Americ,Russia
3.fast delievery&reliable quality
4.QC,QA system

Made in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cable

xlpe insulated armoured underground power cable



1.Specifications of power cable

XLPE Insulated, PVC/PE Sheath
IEC 60502, IEC 60228, IEC 60332

Single Core

2 Constructions of power cable



Conductor

Compact Stranded Copper Conductor, Class 2 as per IEC 60228

Circular solid Copper Conductor, Class 1 as per IEC 60228

Flexible Stranded Copper Conductor, Class 5 as per IEC 60228

Conductor Screen

Semi-conductor (MV only)

Insulation

XLPE(Cross-linked polyethylene)

Insulation Screen

Semi-conductor (MV only)

Separate Screen

Copper Tape (MV must, LV optional)

Filler

PP Yarn, or Paper

Wrapping Tape

PP

Inner Covering

Extruded PVC (MV only)

Armour

Steel Wire, or Steel Tape, or Aluminium Tape optional

Overall Sheath

PVC or PE





3 Applications of power cable

Used for power transmission and distribution line with voltage rated at 35kV and below.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of

excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosionresistant, but also simple structure, light weight,

no restriction by laying drop, and high

temperature allowance for long-term working.



4 Standards of power cable



International: IEC 60502-2, IEC 60228



China: GB/T 12706.2-2008



Other standards such as BS,DIN and ICEA upon request





5 Technical data of power cable



Nominal

Cross sectional area of conductor(mm2)

Nominal

thinckness of insulation(mm)

    Nominal

thinckness of sheath(mm)

  Approx.overall dinameter(mm)



Approx.weight

kg/km
Cu,XLPE,PVC AI,XLPE,PE Cu,XLPE,PVC AI,XLPE,PE
1*1.5 0.7 1.4 6 47 37 38 28
1*2.5 0.7 1.4 6 59 49 44

33
1*4 0.7 1.4 7 77 65 52 40
1*6 0.7 1.4 7 99 86 62 49
1*10 0.7 1.4 8 147

131

 84 68
1*16 0.7 1.4 9 209 191 109 91
1*25 0.9 1.4 11 304 283 149 127
1*35 0.9 1.4 12 400 377 184 160
1*50 1 1.4 13 524 798 232 205
1*70 1.1 1.4 15 732 701 310 279
1*95 1.1 1.5 17 991 953 404 367
1*120 1.2 1.5 18 1230 1189 490 449
1*150 1.4 1.6 20 1516 1467 603 554
1*185

1.6

 1.7 23 1890 1832 748 690
1*240 1.7 1.8 26 2454 2384 954 848
1*300 1.8 1.8 28 3040 2965 1157 1081
1*400 2.2 2 32 3888 3789 1478 1379
1*500 2.2 2.1 36 4959 4850 1874 1755
1*630 2.4 2.2 40 6384 6242 2382 2240



Made in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cable

Made in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cableMade in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cable

Made in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cableMade in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cableMade in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cable



1 Our loyal purport: Based on sincerity! Serve the first!, your trustworthy parter



2 Devoted in the power transmission and distribution since 1995, having lots of experienced



   engineer and workers



3 We are able to contract foreign project obtained the qualification certificateMade in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cable



1. Which payment terms do you accept?







a.The payment term varies with different price level and total rate of each contract.







    The following are most common terms:







b. 30% T/T down payment, the balance before you picking up the  goods.







c. 100% L/C at sight.







d. 30% T/T down payment, the balance against 100% L/C at sight.







2.  What is your MOQ?







    You are advised to please confirm it with us directly as it’s based on different cable type.







    Usually it’s 500 meters for Medium Voltage Cables.







3. What about the lead time for our cable product ?







    The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.







4. What about our product's package ?







    our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.







 Made in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cable

For more information on detailed cable characteristics please call 86 577 57185601



Or email us your request for design cable and wire.Made in China yueqing ruixin group 0.6/1 kv Cu / AI conductor XLPE Insulated PVC / PE Sheath Single Core Power cable
