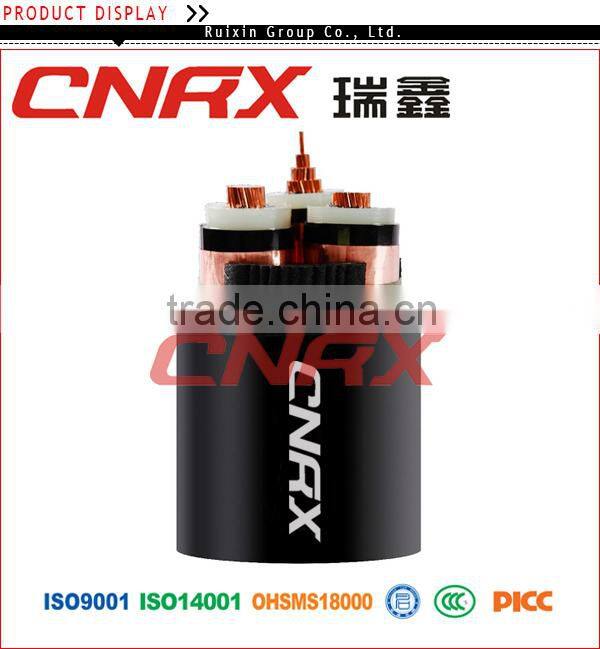

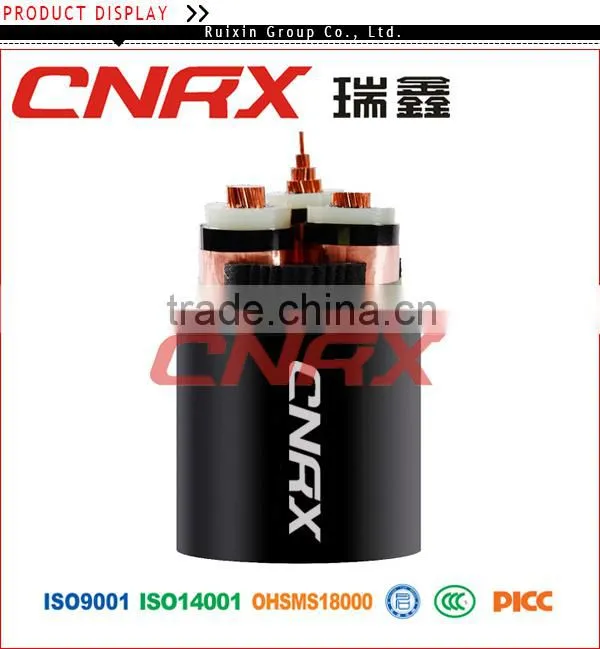

Help CenterMade in China Ruixin Group PVC Insulated PVC Sheathed Halogen-free Low-smoke Flame Retardant Power Cables
Related Products
-
Made in China Ruixin Group Twist Type Copper Conductor XLPE Insulated PVC Sheathed Branch CablesNegotiableMOQ: 100 Meters -
China Supplier Yueqing 0.6/1KV Copper Conductor XLPE Insulated PVC Sheathed YJV Fire Resistant Branch Electric Power CableNegotiableMOQ: 100 Meters
-
Made in China Ruixin Group Copper Conductor PVC Insulated PVC Sheathed Fire Resistant Stranded Prefabricated Branch CableNegotiableMOQ: 100 Meters
-
Made in China 0.6/1kv Copper Core Flexible Synthetic Mineral Insulation Stainless Steel Inner Protecting PO Sheathed Power CableNegotiableMOQ: 100 Meters
-
Made in China RuiXin 1 kv Core Copper Core Flexible Synthetic Mineral Insulation Fireproof Stainless Steel Sheath Power CableNegotiableMOQ: 100 Meters
Specifications
1.electric power cable
2.Professional supplier
3.Reliable quality,best price
4.Strong capacity,fast delivery
5.Copper wire
Sdandards Implemented
GB/T12706.2~3,GB/T19666 and Q/XYT3
Scope of Application
These cables are applicable for the power transmission and distribution lines of rated voltage 0.6/1kV in the areas where the rat damage and/or termite damage is severe. There cables will not be damaged and still can maintain the good power transmission performance even after the rat damage and/or termite damage happened. Meanwhile, they are environmentally friend cables which produce no poison and pollution.
Length of Delivered Cable
The length of each finished cable shall not be less than 100m. the error of length measurement shall not exceed ±0.5%. According to the agreement reached between two parties, it is allowed to deliver the cables of any length.

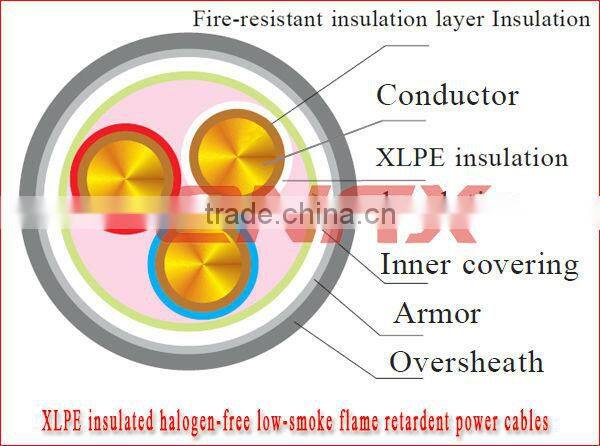

Type and Specifications
| Code | Product name |
| WDZA-YJY WDZA-YJLY WDZB-YJY WDZB-YJLY WDZC-YJY WDZC-YJLY |
Cu(Al) core XLPE insulator No halogen Low smoke A(B or C) class resistance burning power cable |
| WDZA-YJY23 WDZA-YJLY23 WDZB-YJY23 WDZB-YJLY23 WDZC-YJY23 WDZC-YJLY23 |
Cu(Al) core XLPE insulator Steel armored No halogen Low smoke A(B or C) class resistance burning power cable |
| WDZA-YJY33 WDZA-YJLY33 WDZB-YJY33 WDZB-YJLY33 WDZC-YJY33 WDZC-YJLY33 |
Cu(Al) core XLPE insulator thin steel wire armored no halogen low smoke A(B or C) class resistance burning power cable |
| WDZA-YJY63 WDZA-YJLY63 WDZB-YJY63 WDZB-YJLY63 WDZC-YJY63 WDZC-YJLY63 |
Cu(Al) core XLPE insulator stainless steel wire armored no halogen low smoke A(B or C) class resistance burning power cable |
Specification
| specification | |||||||
| Code | Core No. | Rated voltage kV | |||||
| 0.6/1 | 1.8/3 | 3.6/6 6/6 |
6/10 8.7/10 |
8.7/15 | 18/20~26/35 | ||
| Nominal section mm2 | |||||||
| WDZA-YJY WDZA-YJLY WDZB-YJY WDZB-YJLY WDZC-YJY WDZC-YJLY |
Single core | 2.5~1000 | 10~1000 | 25~1000 | 25~1000 | 35~1000 | 50~1000 |
| WDZA-YJY63 WDZA-YJLY63 WDZB-YJY63 WDZB-YJLY63 WDZC-YJY63 WDZC-YJLY63 |
10~1000 | 10~1000 | 25~1000 | 25~1000 | 35~1000 | 50~1000 | |
| WDZA-YJY WDZA-YJLY WDZB-YJY WDZB-YJLY WDZC-YJY WDZC-YJLY |
Multiple-core | 2.5~400 | 10~300 | 25~1000 | 25~1000 | 25~1000 | 25~1000 |
| WDZA-YJY23 WDZA-YJLY23 WDZB-YJY23 WDZB-YJLY23 WDZC-YJY23 WDZC-YJLY23 |
4~400 | 10~300 | 25~1000 | 25~1000 | 25~1000 | 25~1000 | |
| WDZA-YJY33 WDZA-YJLY33 WDZB-YJY33 WDZB-YJLY33 WDZC-YJY33 WDZC-YJLY33 |
4~400 | 10~300 | 25~1000 | 25~1000 | 25~1000 | 25~1000 | |
1 Our loyal purport: Based on sincerity! Serve the first!, your trustworthy parter
2 Devoted in the power transmission and distribution since 1995, having lots of experienced
engineer and workers
3 We are able to contract foreign project obtained the qualification certificate
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?
our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
For more information on detailed cable characteristics please call 86 577 57185601
Or email us your request for design cable and wire.
