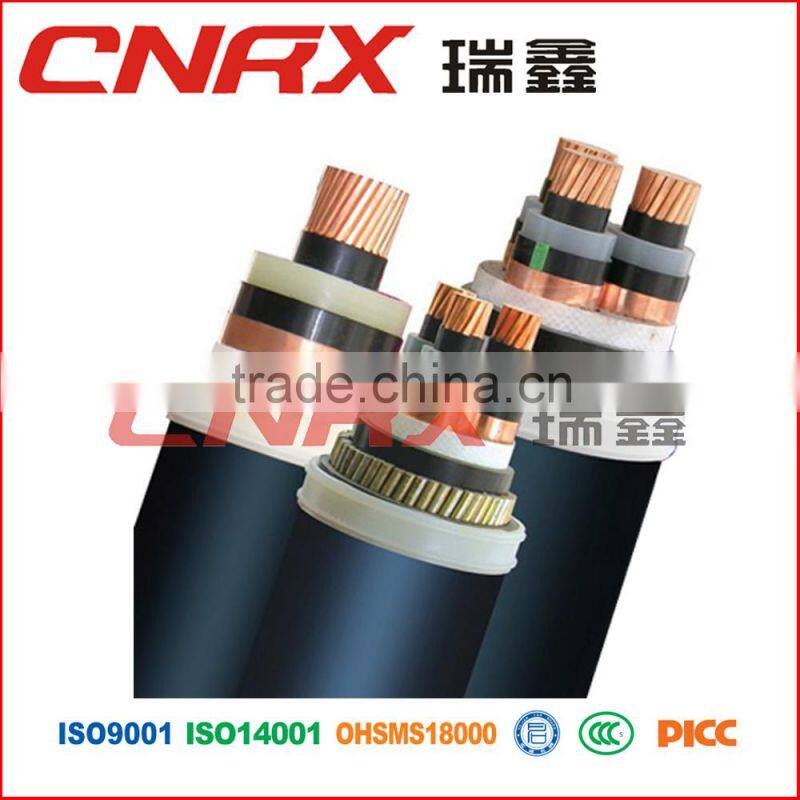

Help CenterMade in China Yueqing Ruixin Group 0.6/1 kv Cu / AI Conductor XLPE Insulated PVC / PE Sheath 3 Core Power Cable Electrical Cabel
Related Products
-
Made in China Yueqing Ruixin Group 0.6/1 kv Cu / AI Conductor XLPE Insulated PVC / PE Sheath 2 Core Power CableNegotiableMOQ: 100 Meters -
Made in China Yueqing Ruixin Group 0.6/1 kv Cu / AI Conductor XLPE Insulated PVC / PE Sheath Single Core Power CableNegotiableMOQ: 100 Meters
-
Made in China Ruixin Group General Purpose Single Core Hard Conductor Non Sheathed CableNegotiableMOQ: 100 Meters
-
Made in China Ruixin Group XLPE Insulated PVC Sheathed Halogen-free Low-smoke Flame Retardant Power CablesNegotiableMOQ: 100 Meters
-
Made in China Ruixin Group PVC Insulated PE Sheathed Halogen-free Low-smoke Flame Retardant Power CablesNegotiableMOQ: 100 Meters
Specifications
YJV type series high voltage cable
1.Certificate:ISO,CE,GB/T
2.Asia,South Americ,Russia
3.fast delievery&reliable quality
4.QC,QA system
xlpe insulated armoured underground power cable
1.Specifications of power cable
XLPE Insulated, PVC/PE Sheath
IEC 60502, IEC 60228, IEC 60332
Single Core

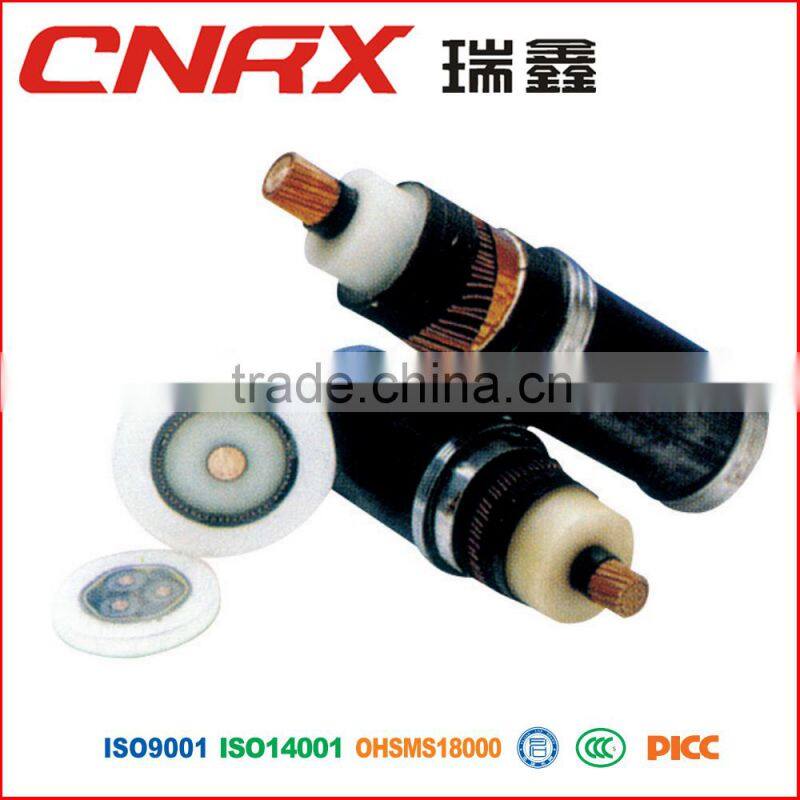

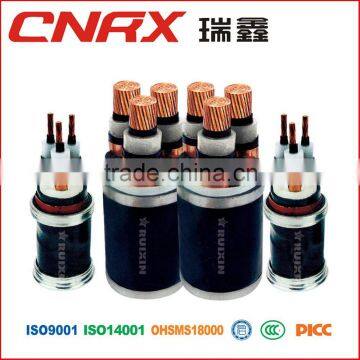

2 Constructions of power cable
Conductor |
Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
Circular solid Copper Conductor, Class 1 as per IEC 60228 | |
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228 | |
Conductor Screen |
Semi-conductor (MV only) |
Insulation |
XLPE(Cross-linked polyethylene) |
Insulation Screen |
Semi-conductor (MV only) |
Separate Screen |
Copper Tape (MV must, LV optional) |
Filler |
PP Yarn, or Paper |
Wrapping Tape |
PP |
Inner Covering |
Extruded PVC (MV only) |
Armour |
Steel Wire, or Steel Tape, or Aluminium Tape optional |
Overall Sheath |
PVC or PE |
3 Applications of power cable
Used for power transmission and distribution line with voltage rated at 35kV and below.
Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of
excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosionresistant, but also simple structure, light weight,
no restriction by laying drop, and high
temperature allowance for long-term working.
4 Standards of power cable
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
5 Technical data of power cable
|
Nominal Cross sectional area of conductor(mm2) |
Nominal thinckness of insulation(mm) |
Nominal thinckness of sheath(mm) |
Approx.overall dinameter(mm) |
kg/km |
|||
| Cu,XLPE,PVC | AI,XLPE,PE | Cu,XLPE,PVC | AI,XLPE,PE | ||||
| 1*1.5 | 0.7 | 1.8 | 10 | 127 | 105 | 99 | 77 |
| 1*2.5 | 0.7 | 1.8 | 11 | 167 | 143 | 120 | 96 |
| 1*4 | 0.7 | 1.8 | 12 | 221 | 194 | 145 | 118 |
| 1*6 | 0.7 | 1.8 | 13 | 293 | 263 | 179 | 149 |
| 1*10 | 0.7 | 1.8 | 16 | 445 | 408 |
253 | 215 |
| 1*16 | 0.7 | 1.8 | 18 | 647 | 604 | 342 | 299 |
| 1*25 | 0.9 | 1.8 | 22 | 959 | 908 | 482 | 431 |
| 1*35 | 0.9 | 1.8 | 24 | 1274 | 1217 | 613 | 556 |
| 1*50 | 1 | 1.8 | 24 | 1590 | 1530 | 695 | 634 |
| 1*70 | 1.1 | 1.9 | 28 | 2228 | 2154 | 935 | 861 |
| 1*95 | 1.1 | 2.0 | 31 | 3015 | 2927 | 1220 | 1132 |
| 1*120 | 1.2 | 2.1 | 34 | 3763 | 3661 | 1497 | 1396 |
| 1*150 | 1.4 | 2.3 | 38 | 4965 | 4533 | 1861 | 1738 |
| 1*185 | 1.6 |
2.4 | 42 | 5778 | 5636 | 2281 | 2138 |
| 1*240 | 1.7 | 2.6 | 47 | 7513 | 7339 | 2920 | 2746 |
| 1*300 | 1.8 | 2.8 | 52 | 9409 | 9202 | 3642 | 3535 |
1 Our loyal purport: Based on sincerity! Serve the first!, your trustworthy parter

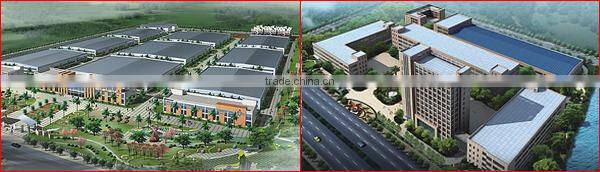

2 Devoted in the power transmission and distribution since 1995, having lots of experienced
engineer and workers
3 We are able to contract foreign project obtained the qualification certificate
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?

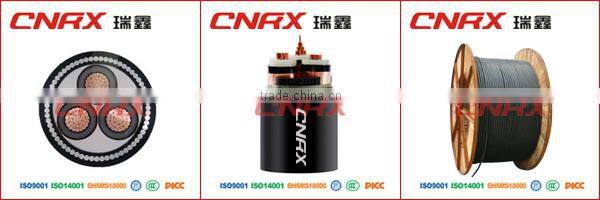

our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
For more information on detailed cable characteristics please call 86 577 57185601
Or email us your request for design cable and wire.
