Home > Products > preparation room > JF sand blasting room /spray booth /portable clean room for cars ( CE certification 2 years warranty time)
JF sand blasting room /spray booth /portable clean room for cars ( CE certification 2 years warranty time)
- 60 Set / Sets per Month
- Guangzhou
You May Like
-
JF prep station spray booth auto repair auto repair equipment ( CE certification 2 years warranty time)
-
JF auto body repair equipment car preparation room for car sanding
-
JF car preparation station for auto painting air clean room
-
JF larger preparation station truck preparation room clean room
-
JF Professional Manufacture Steel Grid foolr twisted bar Plain Galvanized steel grating
-
JF spray booth filter for painting car paint booth filters paint stop filter
Product Details
Power | 7.5KW | External Size | 7870x3570x3260mm | |
Internal Size | 6300x3500x2800mm | Voltage | 380v/3phase/50hz | |
Certification | CE | Disc Dia. | Electric Spray Paint Booth | |
No Load Speed | 0.25m/s | Place of Origin | Guangdong, China | |
Brand Name | JF | Model Number | JF 310 |
Product Description
JF sand blasting room /spray booth /portable clean room for cars ( CE certification 2 years warranty time)

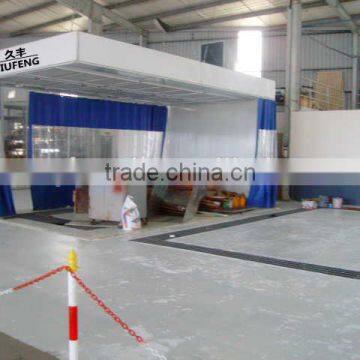

Product picture
Specification
Model: JF 310
Outside size: | 7870x3570x3260 mm (LxWxH) | Inside size: | 6300x3500x2800 mm (LxWxH) |
Foundation and floor | Foundation | Without metal foundation, dig pit type of subsidence, two rows of grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. | |
Surface area of foundation | 7 M² (area of bottom filter filtration) | ||
Wall and door | Wallboard and roof panel | Rear wall of cabin adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm, have function of fireproof and keeping warm. Roof panels adopt galvanized steel plate bending forming | |
PVC curtain | There are PVC soft curtains install on front and two sides of cabin | ||
Lighting | Ceiling lighting | 6Units, each4 x 36 W, total 864w, grade of lighting box’ s dustproof and waterproof reach IP54 grade. | |
Brightness | ≥ 700 LUX | ||
Filtration system | Ceiling Filters | EU5 grade high efficient filter | |
Bottom filter & exhaust filter | Fibreglass paint-stop filter | ||
Ventilation system | Outlet fan (Direct Drive Motor) | Adopt big impeller turbo fan 7.5KW, 380V, 50HZ | |
Fan gate adjustment | Use electric damper driven to adjust the return air of damper | ||
Fan Capacity | 25000m³ /h | ||
Control Board | Control system | Standard Y/Δ step-down start control system | |
Function | Fan start, electric damper adjust, emergency stop switch, failure indication |
Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish.
Factory
We are professional manufacturer for 12 years in China
Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
Service time: Life long maintenance
Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .
JF target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, JF enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives.
We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system. We stick to the philosophy of precise, accurate, harmonious and mutual-benefit are devoted to the development, design, manufacturing and sales of the products, and make the products more practical, beautiful, secure, accurate, environmental friendly and energy saving .
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project
...Please feel free to contact us...
Contact person: Yecole Ye
Phone:+ 86 15089362579
Trade manager: cn1518809459ufuq
Contact Us
- Shenzhen Jiufeng Electromechanical Equipment Factory
- AddressMazha Industrial Park, West Of Mazha Old School, Liushanan, Puning
