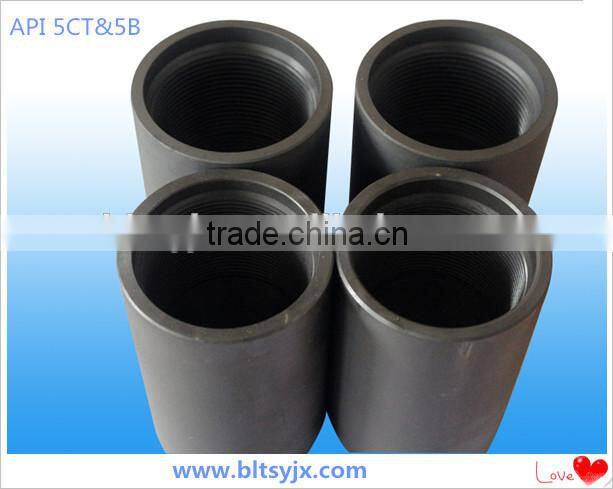

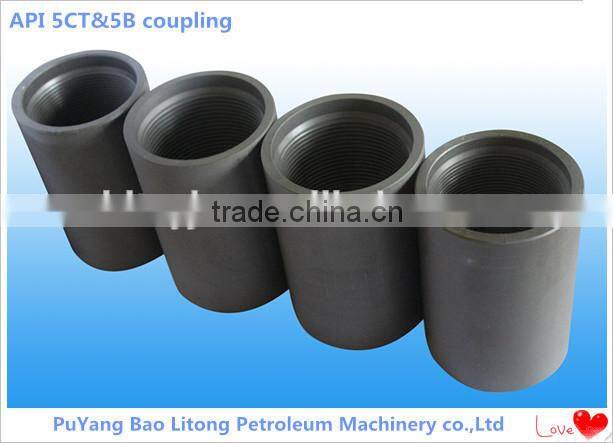

API Standard! API 5ct 2 7/8" J55 NUE Seamless Steel Pipe Coupling

Puyang Bao Litong Petroleum Machinery Co., Ltd.
API Standard! API 5ct 2 7/8" J55 NUE Seamless Steel Pipe Coupling thumbnail-1
API Standard! API 5ct 2 7/8" J55 NUE Seamless Steel Pipe Coupling photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, J55.K55,N80,L80,P110
Technics:
Other, hot rolled
Type:
Coupling
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, J55.K55,N80,L80,P110
Technics Other, hot rolled
Type Coupling
Place of Origin Henan, China
Model Number 2 7/8" J55(NUE)
Brand Name BLT
Connection Other, NUE,EUE
Shape Equal
Head Code Other, round

Specifications

API 5ct 2 7/8" J55 NUE seamless steel pipe coupling
1.Std:API 5CT&5B
2.Grade:J55/K55/N80/L80/P110
3. Non-upset and external

API standard!  API 5ct 2 7/8" J55 NUE seamless steel pipe coupling



Features

1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

2.Size:from 2-3/8" to 4-1/2"

3.Type:NUE EUE

4.Std ref:API 5CT&5B

5.Placement:female

6.Surface treatment: Whole phosphating, or inside phosphating and outside coating

7.Packing: By carton, wooden case, wooden pallet, or by requirements of customers



Technial Parameters



Name

Thread

Specifications

O.D*L(mm)

Weight(kg)

Load carring width(mm)

API 5ct 2 7/8" J55 NUE seamless steel pipe coupling



NU

2-3/8"TBG

73.02*107.95

1.28

4.76

2-7/8"TBG

88.90*130.18

2.34

4.76

3-1/2"TBG

107.95*142.88

3.71

4.76

4"TBG

120.65*146.05

4.35

4.76

4-1/2"TBG

132.08*155.58

4.89

4.76

EU

2-3/8"UPTBG

77.80*123.82

1.55

3.97

2-7/8"UPTBG

93.17*133.35

2.4

5.56

3-1/2"UPTBG

114.30*146.05

4.1

6.35

4"UPTBG

127.00*152.40

4.82

6.35

4-1/2"UPTBG

141.30*158.75

6.05

6.35

1.Advantage:good sealing

2.Size:from 2-3/8"to 4-1/2"

3.Standard reference:API 5CT & 5B

4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q

5.Surface treatment:whole phosphating,or inside phosphating and outside coating

6.Package:by carton, wooden case, wooden pallet or by customer request



 Package informations

SpecificaitonTubing Size OD (inches)Coupling Size OD   (inches)Length (inches)Weight per Coupling (kgs )Palletized Carton QuantityPalletized Carton Weight
(pieces)(Kgs)

  EUE tubing coupling



1.92.5003.8750.8423521976
2 3/83.0634.8751.5511521786
2 7/83.6685.2502.408001920
3 1/24.5005.7504.105121229
45.0006.0004.823921890
4 1/25.5636.2506.053922372





SpecificaitonTubing Size OD (inches)Coupling Size OD   (inches)Length (inches)Weight per Coupling (kgs )Palletized Carton QuantityPalletized Carton Weight
(pieces)(Kgs)

 NUE tubing couplig



1.92.2003.7500.5634681943
2 3/82.8754.2501.2816902164
2 7/83.5005.1252.348001872
3 1/24.2505.6253.715121900
44.7505.7504.353921706
4 1/25.2006.1254.893921917
