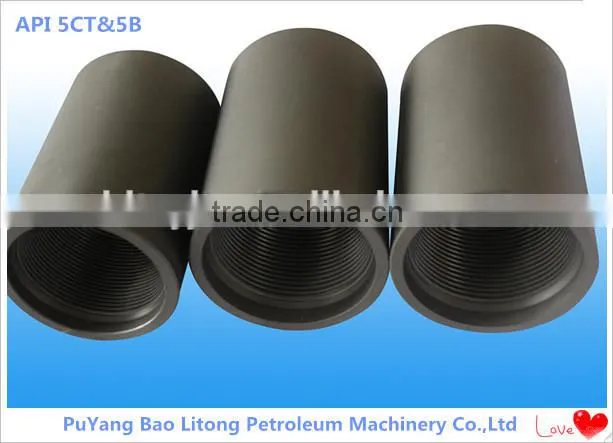

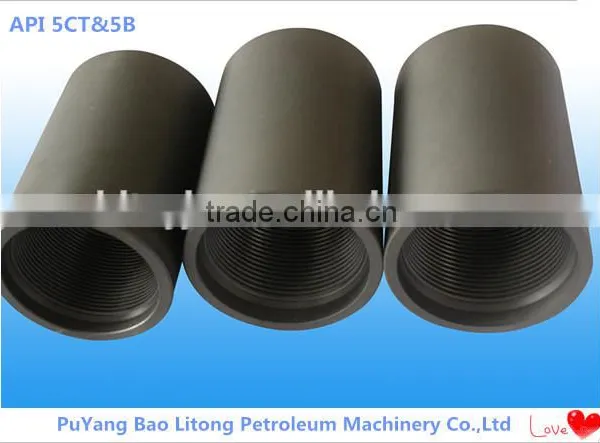

Good Quality! API 5ct 3-1/2" N80 Casing and Tubing Collars NUE/EUE

Good Quality! API 5ct 3-1/2" N80 Casing and Tubing Collars NUE/EUE thumbnail-1
Good Quality! API 5ct 3-1/2" N80 Casing and Tubing Collars NUE/EUE photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Structure:
Other, coupling
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Puyang Bao Litong Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai TianJin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Other, coupling
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Other, J55,K55,N80,L80,P110
Brand Name BLT
Place of Origin Henan, China
Model Number 3-1/2" N80(EUE)

Specifications

API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE
1.Std Ref: API 5CT &5B
2.Grade: J55/K55/N80/L80/P110
3.NUE/EUE threads

Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE



Specifications

1.Std ref:API 5ct &5b

2.Grade:J55,K55,N80,L80,P110

3.Size: 1.9" to 4-1/2"

4.Non-upset and external-upset



Features

1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

2.Size:from 1.9" to 4-1/2"

3.Type:NUE EUE

4.Std ref:API 5CT&5B

5.Placement:female

6.Surface treatment: Whole phosphating, or inside phosphating and outside coating

7.Packing: By carton, wooden case, wooden pallet, or by requirements of customers





Technial Parameters



Name

Thread

Specifications

O.D*L(mm)

Weight(kg)

Load carring width(mm)

API 5ct 2 7/8" J55 NUE seamless steel pipe coupling



NU

2-3/8"TBG

73.02*107.95

1.28

4.76

2-7/8"TBG

88.90*130.18

2.34

4.76

3-1/2"TBG

107.95*142.88

3.71

4.76

4"TBG

120.65*146.05

4.35

4.76

4-1/2"TBG

132.08*155.58

4.89

4.76

EU

2-3/8"UPTBG

77.80*123.82

1.55

3.97

2-7/8"UPTBG

93.17*133.35

2.4

5.56

3-1/2"UPTBG

114.30*146.05

4.1

6.35

4"UPTBG

127.00*152.40

4.82

6.35

4-1/2"UPTBG

141.30*158.75

6.05

6.35

1.Advantage:good sealing

2.Size:from 2-3/8"to 4-1/2"

3.Standard reference:API 5CT & 5B

4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q

5.Surface treatment:whole phosphating,or inside phosphating and outside coating

6.Package:by carton, wooden case, wooden pallet or by customer request



  Package informations

SpecificaitonTubing Size OD (inches)Coupling Size OD   (inches)Length (inches)Weight per Coupling (kgs )Palletized Carton QuantityPalletized Carton Weight
(pieces)(Kgs)

  EUE tubing coupling



1.92.5003.8750.8423521976
2 3/83.0634.8751.5511521786
2 7/83.6685.2502.408001920
3 1/24.5005.7504.105121229
45.0006.0004.823921890
4 1/25.5636.2506.053922372





SpecificaitonTubing Size OD (inches)Coupling Size OD   (inches)Length (inches)Weight per Coupling (kgs )Palletized Carton QuantityPalletized Carton Weight
(pieces)(Kgs)

NUE tubing couplig



1.92.2003.7500.5634681943
2 3/82.8754.2501.2816902164
2 7/83.5005.1252.348001872
3 1/24.2505.6253.715121900
44.7505.7504.353921706
4 1/25.2006.1254.893921917



Certifications

Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUEGood quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE

Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE



Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE



Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE

Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUEGood quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE

Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE



Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE

Good quality! API 5ct 3-1/2" N80 casing and tubing collars NUE/EUE



RFQ for your information





1. Q : are you a factory or a trade company?

A : Yes,we are a specilized petroleum machinery products factory for 12 years



2. Q:Where are your factory located in?how can i reach it?

A: our factory is located in PuYang City,HeNan province,you can take the High-speed

rail from Beijing or Shanghai , or by plane to Zhengzhou city.



3. Q: do you have API 5CT certification or other certification?

A: we have API 5CT &API 11b certification ,and ISO 9001 quality control certification



4.Q:for the quality control,how do your factroy control?

A: Firstly,all our seamless tubes,such as J55,K55,N80,L80,P110 are from china biggest

seamless factory,so Tensile Strength & Yield Strength can be assured



A: Secondly,each procedure strictly controlled,and the threads are conntrolled by lathe

and import molding cutter.
