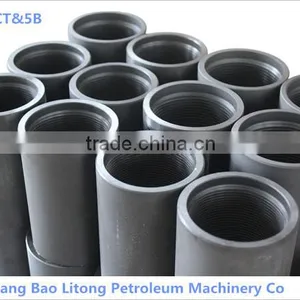

Help CenterHot Sale! API 5CT OCTG Female Shaft Coupling N80/L80
Related Products
-
Factory Price ! Api 5ct Nipple Coupling J55 K55 N80NegotiableMOQ: 1 Piece -
China Manufacturer ! Api 5ct Oilfield Coupling J55 K55 N80 L80 P110NegotiableMOQ: 1 Piece
-
Api Standard ! Api 5ct J55 K55 N80 Female Pipe Nipple EUENegotiableMOQ: 1 Piece
-
China Manufacturer! API 5ct External-upset Tubing Coupling K55NegotiableMOQ: 1 Piece
-
Hot Sale! 3-1/2" API 5CT EUE/NUE Tubing Coupling P110NegotiableMOQ: 1 Piece
Specifications
Hot Sale! API 5CT OCTG Female Shaft coupling N80/L801.Std Ref:API 5CT&5B
2.Grade:J55,k55,N80,L80,P110
3.EUE and NUE

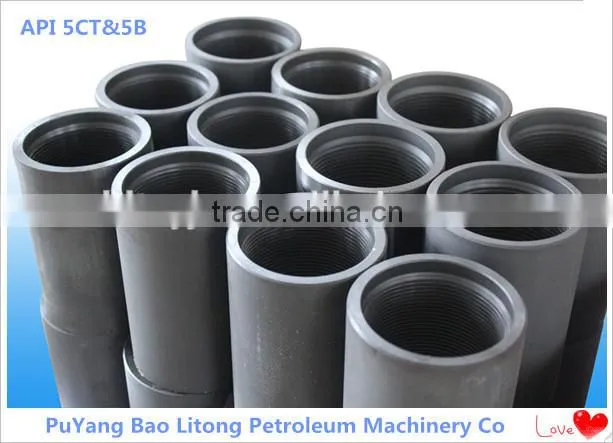

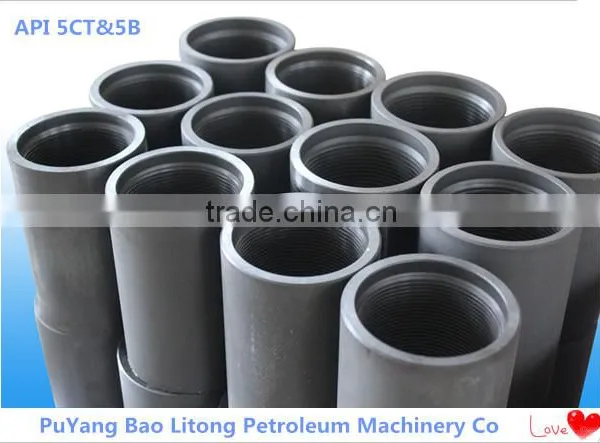

Hot Sale! API 5CT OCTG Female Shaft coupling N80/L80
1.Std :API 5CT &5B
2.Size : 1.9"to 4 1/2"
3.Non-upset and external-upset
Features
1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
2.Size:from 2-3/8" to 4-1/2"
3.Type:NUE EUE
4.Std ref:API 5CT&5B
5.Placement:female
6.Surface treatment: Whole phosphating, or inside phosphating and outside coating
7.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Technial Parameters
Name |
Thread |
Specifications |
O.D*L(mm) |
Weight(kg) |
Load carring width(mm) |
|
API 5CT OCTG Female Shaft coupling N80/L80
|
NU |
2-3/8"TBG |
73.02*107.95 |
1.28 |
4.76 |
2-7/8"TBG |
88.90*130.18 |
2.34 |
4.76 |
||
3-1/2"TBG |
107.95*142.88 |
3.71 |
4.76 |
||
4"TBG |
120.65*146.05 |
4.35 |
4.76 |
||
4-1/2"TBG |
132.08*155.58 |
4.89 |
4.76 |
||
EU |
2-3/8"UPTBG |
77.80*123.82 |
1.55 |
3.97 |
|
2-7/8"UPTBG |
93.17*133.35 |
2.4 |
5.56 |
||
3-1/2"UPTBG |
114.30*146.05 |
4.1 |
6.35 |
||
4"UPTBG |
127.00*152.40 |
4.82 |
6.35 |
||
4-1/2"UPTBG |
141.30*158.75 |
6.05 |
6.35 |
||
1.Advantage:good sealing | |||||
2.Size:from 2-3/8"to 4-1/2" | |||||
3.Standard reference:API 5CT & 5B | |||||
4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q | |||||
5.Surface treatment:whole phosphating,or inside phosphating and outside coating | |||||
6.Package:by carton, wooden case, wooden pallet or by customer request | |||||
Package informations
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
|
EUE tubing coupling
|
1.9 | 2.500 | 3.875 | 0.84 | 2352 | 1976 |
| 2 3/8 | 3.063 | 4.875 | 1.55 | 1152 | 1786 | |
| 2 7/8 | 3.668 | 5.250 | 2.40 | 800 | 1920 | |
| 3 1/2 | 4.500 | 5.750 | 4.10 | 512 | 1229 | |
| 4 | 5.000 | 6.000 | 4.82 | 392 | 1890 | |
| 4 1/2 | 5.563 | 6.250 | 6.05 | 392 | 2372 |
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
|
NUE tubing couplig
|
1.9 | 2.200 | 3.750 | 0.56 | 3468 | 1943 |
| 2 3/8 | 2.875 | 4.250 | 1.28 | 1690 | 2164 | |
| 2 7/8 | 3.500 | 5.125 | 2.34 | 800 | 1872 | |
| 3 1/2 | 4.250 | 5.625 | 3.71 | 512 | 1900 | |
| 4 | 4.750 | 5.750 | 4.35 | 392 | 1706 | |
| 4 1/2 | 5.200 | 6.125 | 4.89 | 392 | 1917 |
Certifications
