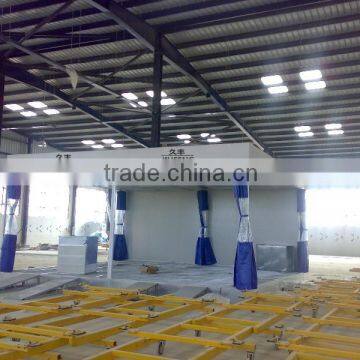

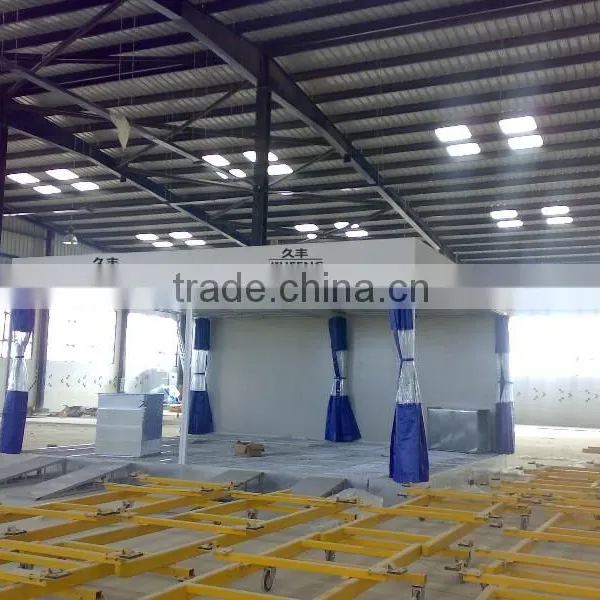

JF car sand booth auto polishing room offer clean space automotive machine
Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .
Specification
Model: JF 300
| Outside size(mm) |
7870x 3570x3610 mm (L x W x H) |
Inside size(mm) |
6300 x 3500 x 2800 mm (L x W x H) |
| Foundation and floor | Foundation | Full metal foundation, full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. | |
| Surface area of foundation | 20 M²(full galvanized grids) | ||
| Metal basement | 350mm height, the ventilation effect is better than traditional spray booth | ||
| Drive-in ramps | 2 units drive-in ramps, each size: 2000X500mm, diamond plate structure | ||
| Wall and door | Wallboard and roof panel | Rear wall of cabin adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm, have function of fireproof and keeping warm. Roof panels adopt galvanized steel plate bending forming. | |
| PVC curtain | There are PVC soft curtains install on front and two sides of cabin | ||
| Lighting | Ceiling lighting | 6Units, each4 x 36 W, total 864w, grade of lighting box’s dustproof and waterproof reach IP54 grade. | |
| Brightness | ≥700 LUX | ||
| Filtration system | Ceiling Filters | EU5 grade high efficient filter | |
| Bottom filter & exhaust filter | Fibreglass paint-stop filter | ||
| Ventilation system |
Outlet fan (Direct Drive Motor) |
Adopt big impeller turbo fan 7.5KW, 380V, 50HZ | |
| Fan gate adjustment | Use electric damper driven to adjust the return air of damper | ||
| Fan Capacity | 25.000m³/h | ||
| Control Board | Control system | Standard Y/Δ step-down start control system | |
| Function | Fan start, electric damper adjust, emergency stop switch, failure indication | ||
We are professional manufacturer for 12 years in China
Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
Service time: Life long maintenance
Q1: What's the sort of heating types?
JF reply: There are diesel, gas and electricity(infrared lamp) heating.
Q2: Does the JF spray booth with the European design ?
JF reply: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q3: What are range of the voltage and power for JF spray booth when operating?
JF reply: the standard voltage and power for our products is 220V 50HZ 1PH for lights (Residential voltage), 380V 50HZ 3PH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q4: For the customer-design spray booth for other workpieces, does JF could provide?
JF reply: Absolutely yes, JF has the professional team with 12 years of design experience. JF may design according to customers requirements of spray booth for car, bus, big iron workpieces, wooden furniture etc.
