Product Details
Power: | 7.5KW | External Size: | 7870 x 3570 x 3610 mm | Internal Size: | 6300 x 3500 x 2800 mm |
Voltage: | 380v/3phase/50hz | Certification: | CE | Disc Dia.: | Electric Spray Paint Booth |
No Load Speed: | 0.23m/s | Place of Origin: | Guangdong, China | Brand Name: | JF |
Model Number: | JF 300 |
Product Description
JF polish paint pre cabin spray booth preparation room for car furniture simply sanding polishing painting cabinet

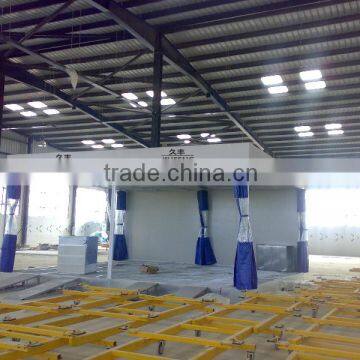

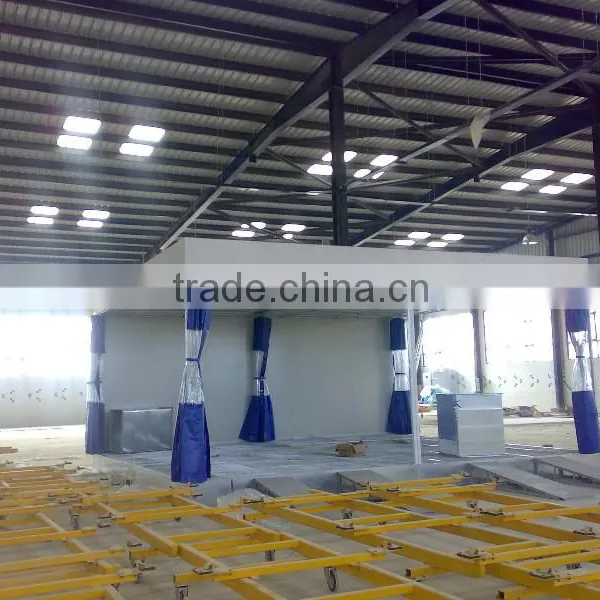

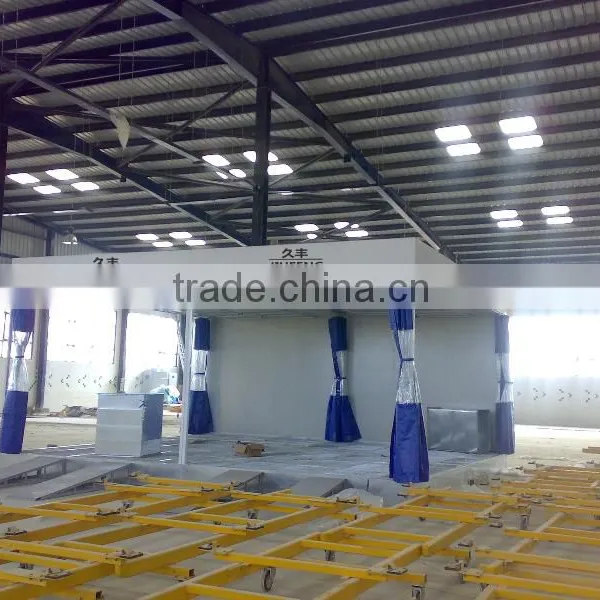

Product picture
Specification
Model: JF 300
Outside size(mm) | 7870x 3570x3610 mm (L x W x H) | Inside size(mm) | 6300 x 3500 x 2800 mm (L x W x H) |
Foundation and floor | Foundation | Full metal foundation, full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. | |
Surface area of foundation | 20 M²(full galvanized grids) | ||
Metal basement | 350mm height, the ventilation effect is better than traditional spray booth | ||
Drive-in ramps | 2 units drive-in ramps, each size: 2000X500mm, diamond plate structure | ||
Wall and door | Wallboard and roof panel | Rear wall of cabin adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm, have function of fireproof and keeping warm. Roof panels adopt galvanized steel plate bending forming. | |
PVC curtain | There are PVC soft curtains install on front and two sides of cabin | ||
Lighting | Ceiling lighting | 6Units, each4 x 36 W, total 864w, grade of lighting box’s dustproof and waterproof reach IP54 grade. | |
Brightness | ≥700 LUX | ||
Filtration system | Ceiling Filters | EU5 grade high efficient filter | |
Bottom filter & exhaust filter | Fibreglass paint-stop filter | ||
Ventilation system | Outlet fan (Direct Drive Motor) | Adopt big impeller turbo fan 7.5KW, 380V, 50HZ | |
Fan gate adjustment | Use electric damper driven to adjust the return air of damper | ||
Fan Capacity | 25.000m³/h | ||
Control Board | Control system | Standard Y/Δ step-down start control system | |
Function | Fan start, electric damper adjust, emergency stop switch, failure indication |
Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish.
Factory
We are professional manufacturer for 12 years in China
Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
Service time: Life long maintenance
Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .
JF target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, JF enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives.
We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system. We stick to the philosophy of precise, accurate, harmonious and mutual-benefit are devoted to the development, design, manufacturing and sales of the products, and make the products more practical, beautiful, secure, accurate, environmental friendly and energy saving .
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project
...Please feel free to contact us...
