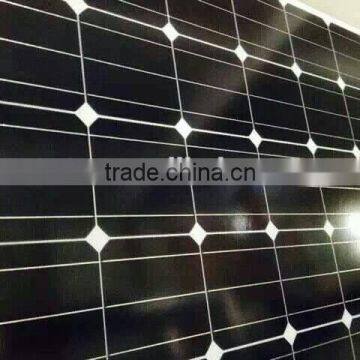

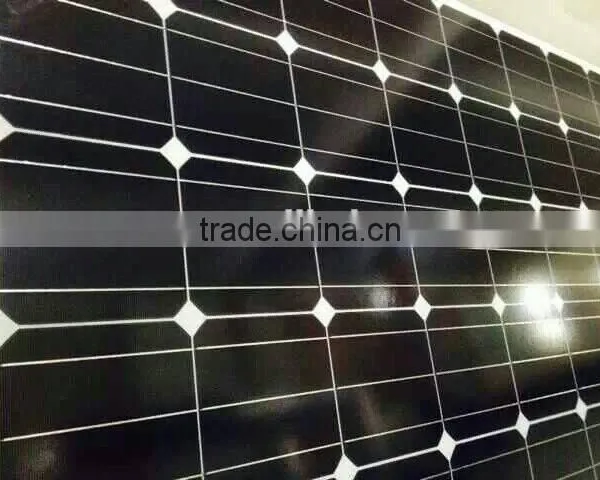

solar panel

FOB Price

USD $0.58 - $0.62 / Set

100 Sets(Min.Order)

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	RX250M-60	Specification:	Normal
Application:	Home	Load Power (W):	250	Solar Power (W):	250W

Overview

High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.
Rigorous quality control to meet the highest international standards.
High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
Unique frame design with high mechanical strength for easy installation.
Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
Outstanding electrical performance under high temperature and low irradiance conditions.
60 Back-Contact monocrystalline Si solar cells (approx. 18.4%).

Applications

Warranty

10 year limited product warranty on materials and workmanship.
25 year limited power warranty on power output.
≥90% power output assurance for 10 years and ≥80% power output assurance for 25 years.
Refer to warranty document for detailed warranty information.

Certifications

Electrical Characteristics

All specified Parameters are at STC 25℃Ambient, 1000W/ m irradiance and AM 1.5

Type	RX235M-60	RX240M-60	RX245M-60	RX250M-60	RX255M-60
Max-Power Pm(W)	235	240	245	250	255
Module-Power Range(W)	240>Pm≥235	245>Pm≥240	250>Pm≥245	255>Pm≥250	Pm≥255
Power Tolerance(W)	+0~+5	+0~+5	+0~+5	+0~+5	+0~+5
Max-Power Voltage(V)	30.8	31.1	31.4	31.85	32.3
Max-Power Current lm(A)	7.64	7.73	7.81	7.85	7.9
Short-Ciruit Current lsc(A)	8.55	8.65	8.75	8.85	8.9
Open-Circuit Voltage Voc(V)	36.6	37	37.3	37.65	38.2
Max-System Voltage(VDC)	600V(UL)/1000V(IEC)
Cell Efficiency(%)	16.4	16.7	17.1	17.4	17.8
Module Efficiency(%)	14.3	14.6	14.9	15.2	15.5
Max.Series Fuse(A)	15
Pm Temperature Coefficients(W/℃)	-1.1041
Lsc Temperature Coefficients(A/℃)	0.00418
Voc Lsc Temperature Coefficients(V/℃)	-0.1261
NPCT Nominal Operating Cell Temperature	47±2℃

Mechanical Characteristics

Cable type,Diameter and Length	4mm ,TUV certified,900mm
Type of Connector	Compatible Type IV
Number,type and arrangement of cells	60 pcs,Mono-Crystalline Silicon(6×10)
Cell Size(mm)	156×156(D200)
Dimension(mm)	1650×990×40
Weight(kg)	22.5
No.of Draining Holes in Frame	10
Glass,Type and Thickness	High Transmission,Low lron,Tempered Glass 3.2mm

Packaging Configuration

Absolute Ratings

Dielectric Insulation Voltage	3000V
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
