JF Truck Spray Booth for Sale Outdoor Spray Booth Spray Tan Booth

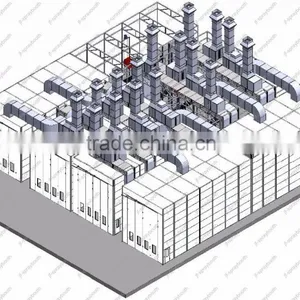

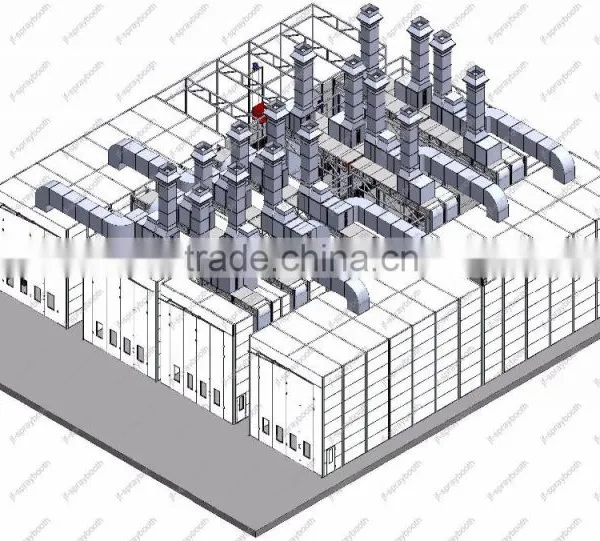

JF Truck Spray Booth for Sale Outdoor Spray Booth Spray Tan Booth photo-1

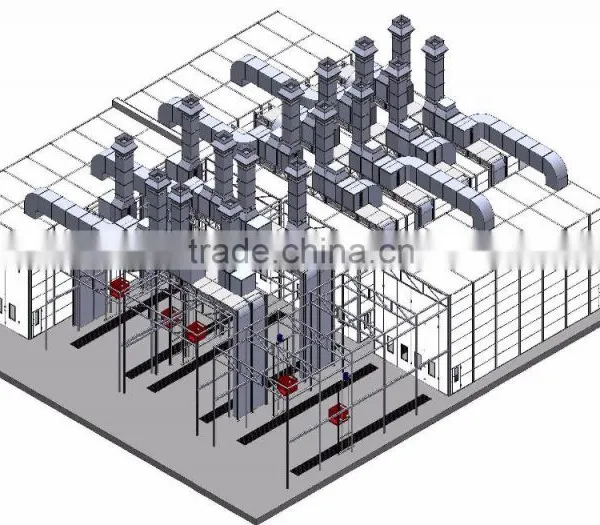

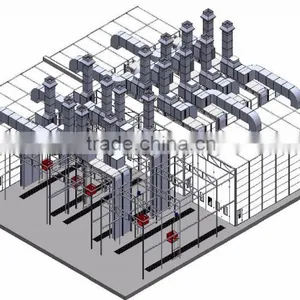

JF Truck Spray Booth for Sale Outdoor Spray Booth Spray Tan Booth photo-2

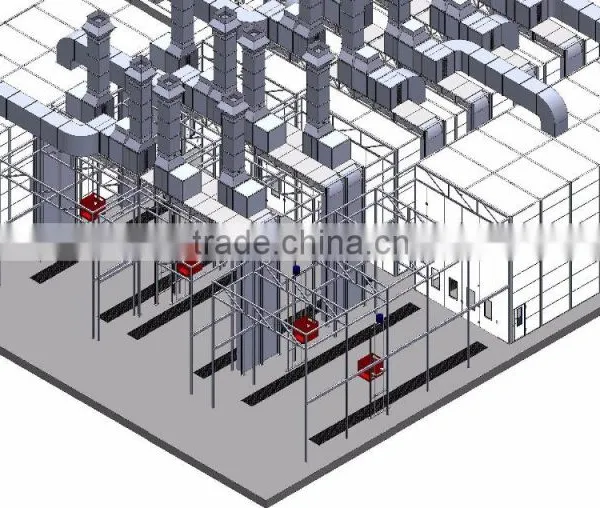

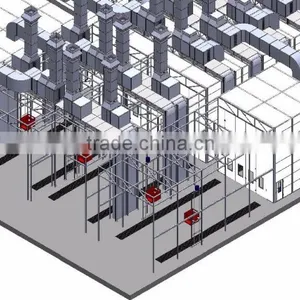

JF Truck Spray Booth for Sale Outdoor Spray Booth Spray Tan Booth photo-3

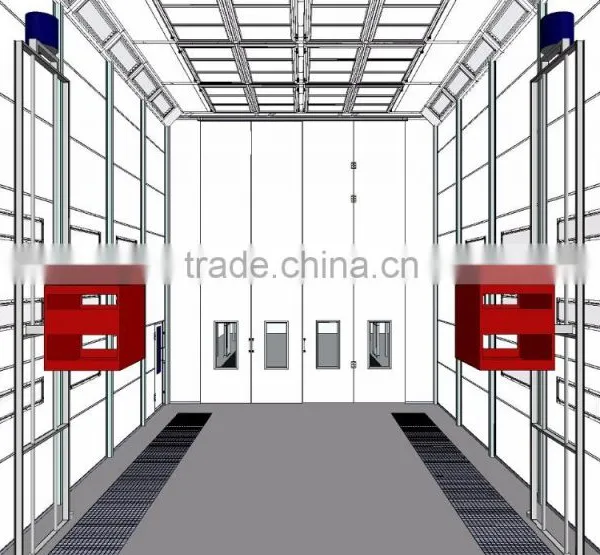

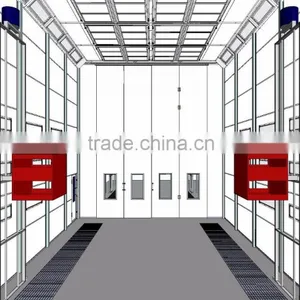

JF Truck Spray Booth for Sale Outdoor Spray Booth Spray Tan Booth photo-4

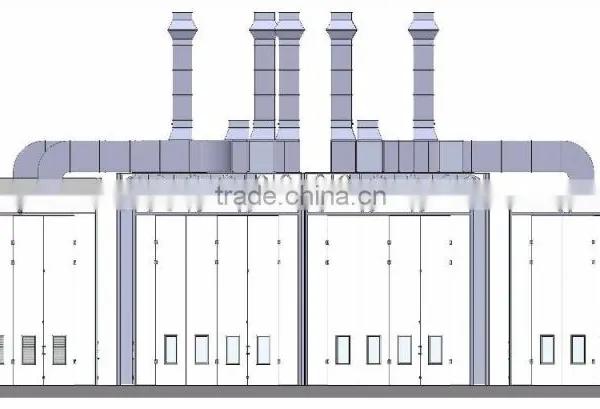

JF Truck Spray Booth for Sale Outdoor Spray Booth Spray Tan Booth photo-5

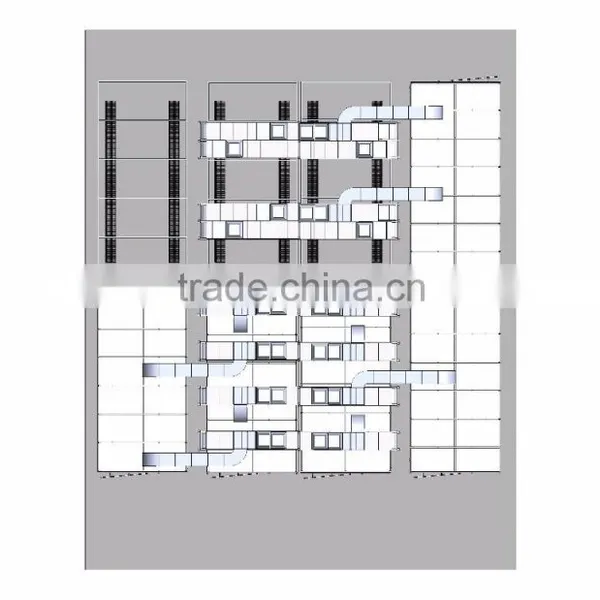

JF Truck Spray Booth for Sale Outdoor Spray Booth Spray Tan Booth photo-6
US$ 4,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Voltage:
380v/3phase/50hz
Certification:
CE
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Voltage 380v/3phase/50hz
Certification CE
Place of Origin Guangdong, China
Brand Name JF
Model Number JF

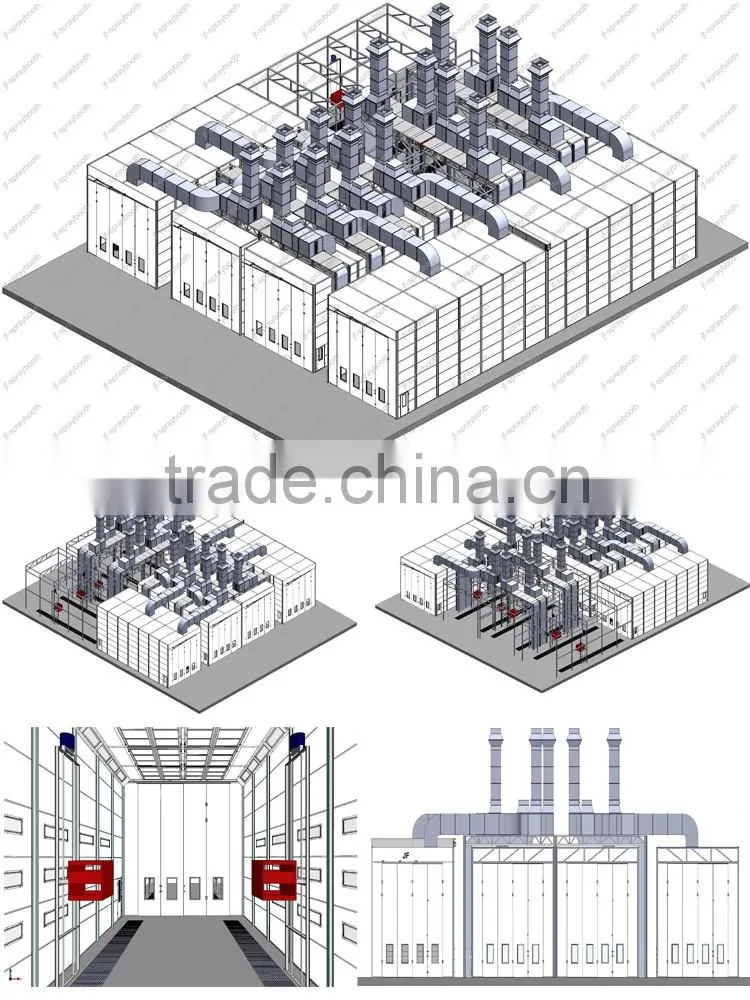

JF truck spray booth for sale outdoor spray booth spray tan booth



Company Information

Shenzhen Jiufeng Electromechanical Equipment Co., Ltd.  is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .

JF truck spray booth for sale outdoor spray booth spray tan boothJF truck spray booth for sale outdoor spray booth spray tan booth

JF truck spray booth for sale outdoor spray booth spray tan booth

Product Description

JF truck spray booth for sale outdoor spray booth spray tan booth

  • Provide a relevant basis, the workpiece parameters, the overall layout, process, water and electricity supply, building codes, technical specifications and other written request.
  • Equipment installation space: according to the building plan and process flow diagram.
  • Job type:

                                                                                 Job type

Parts

QTY(each 10 hours)

External size(Max)

Weight(Kg)

Pre-treatment method

Painting

Truck

6

16470X2700X4300

unconfirmed

Polish

Painting



  • Production: workpiece enters through its own power or other ways into Spray Booth, inlet air and exhaust air of the spray booth will be able to take the oil spray mist produced by painting away effectively, have a good working environment inside spray booth; Adopt dry mist filtering, while easy to clean, the spray booth needs to be convenient for cleaning and maintenance; paint drying time should be shortened by baking.
  • Working method:clean, putty, polish, painting.
  • Airflow organization:

           Spray booth:roof inlet air, bottom exhaust air, with 100% fresh air working function

           Preparation station: bottom exhaust air

  • Painting operation area air speed when empty loaded:≥0.23m/s
  • Interior illumination: ≥1000Lux
  • Indoor cleanliness:air filtration efficiency >98%,99.9% filter above 10um ,conform to EN-799 EU5 filter grade requirements.
  • Paint mist treatment way:spray booth adopts dry type collecting paint mist. Direct emissions.
  • Noise:when the equipments are all working, the noise outside the factory should conform to EN-13355 regulation≤80dB
  • Pressure control way:valve control
  • Paint booth:valve adjust slight positive pressure,within -0Pa - 80Pa range
  • Preparation station:valve adjust slight positive pressure,within -0Pa - 50Pa range
  • Safe device

           Over-pressure alarm

           Low pressure alarm

          Safe temperature stop machine and keep ventilation

          Motor over current and over load

          Safe circuit separation








  Packaging & Shipping

JF truck spray booth for sale outdoor spray booth spray tan booth

Our Services



We are professional manufacturer for 12 years in China



Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.

Service time: Life long maintenance



FAQ



Q1: What's the sort of heating types?
JF reply: There are diesel, gas and electricity(infrared lamp) heating.

Q2: Does the JF spray booth with the European design ?
JF reply: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.

Q3: What are range of the voltage and power for JF spray booth when operating?
JF reply: the standard voltage and power for our products is 220V 50HZ 1PH for lights (Residential voltage), 380V 50HZ 3PH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.

Q4: For the customer-design spray booth for other workpieces, does JF could provide?
JF reply: Absolutely yes, JF has the professional team with 12 years of design experience. JF may design according to customers requirements of spray booth for car, bus, big iron workpieces, wooden furniture etc.
