Specifications
XQ140/12YA hydraulic tubing tongs1.Std ref:API 7K
2. Drill floor handing tools for oil field
3. For 2 7/8" ~4 1/2" tubing

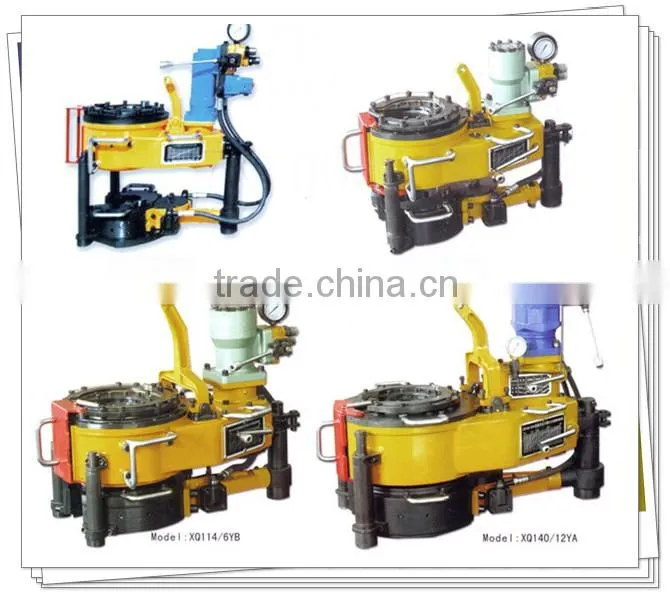

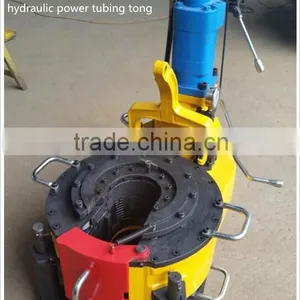

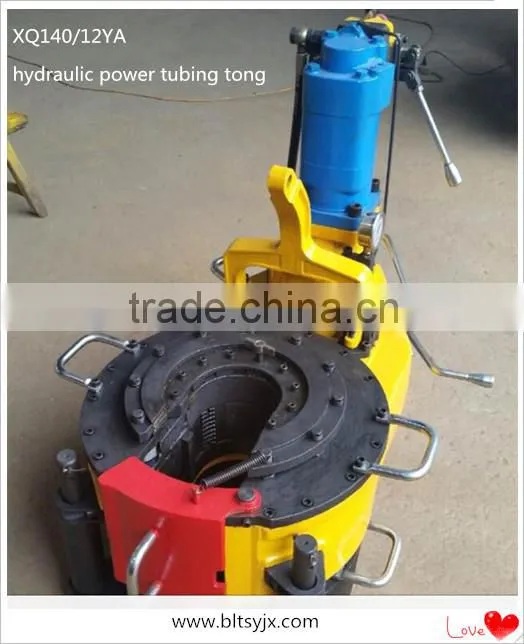

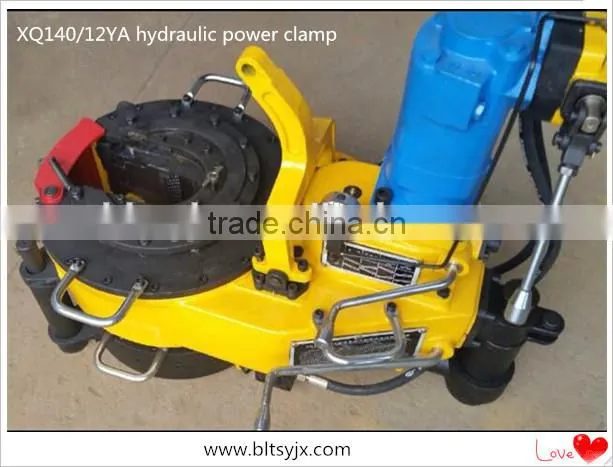

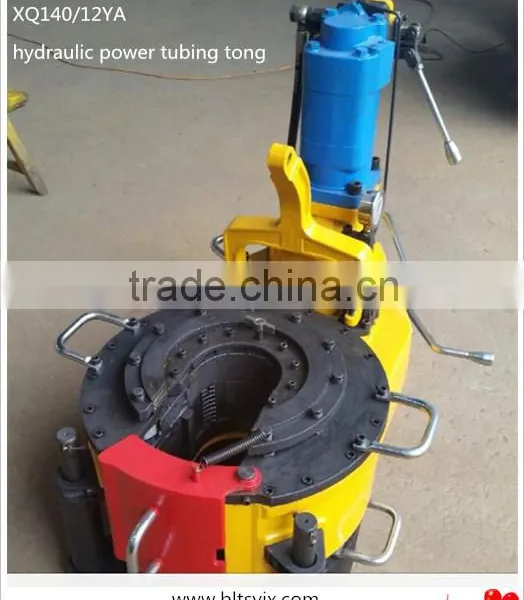

XQ140/12YA hydraulic tubing tongs
Detail informations
12YA hydraulic clamp force in the oil field workover operations on dumping 23/8" ,-3½"drill pipe, and 2 7/8"- 4½" tubing and 4½"-5½" casing of a dynamic open-clamp .
Features
1, the clamp from the torque hydraulic motor driven back by clamp rack plunger drive, drive concise, compact structure.
2, Lord, forceps are used in the dorsal surface of clamping rollers climbing, cards tight, reliable and timely release.
3, the first with the upper and lower clamp Fuzheng outside agencies, rotating stable, long service life.
4, Lord, matching clamp back, reversing valve can be manually manipulated simultaneous release clamping or string.
5, friction braking institutions in the clamp heads of the adjustment, maintenance more convenient.
6, and reset manually reversing valve knob with, for the flexible and convenient.
7, equipped with a retractable security doors installed, the protective effect from security
Technical Parameters
| Model | XQ140/12YA |
| Pipe size range of master tong | Φ73-140 |
| 27/8”-51/2” | |
| Pipe size range of backup tong | Φ89-156 |
| 31/2”-61/8” | |
| High gear rated torque | 2600 N.m |
| 1918ft-lbs | |
| Low gear rated torque | 12000 N.m |
| 8851 ft-lbs | |
| Hige gear rated speed | 72 r/min |
| Low gear rated speed | 14 r/min |
| Rated operation pressure | 12Mpa |
| 1740psi | |
| Max. Flow | 120L/min |
| 32gpm | |
| Dimension:L×W×H | 1024×582×539 |
| 40.3” ×22.9” ×21.2” | |
| Weight(including backup tong) | 480kg |
| 1057 lbs |
