Good Price ! XQ Series Hydraulic Tubing and Casing Tong XQ114/6YB

Specifications

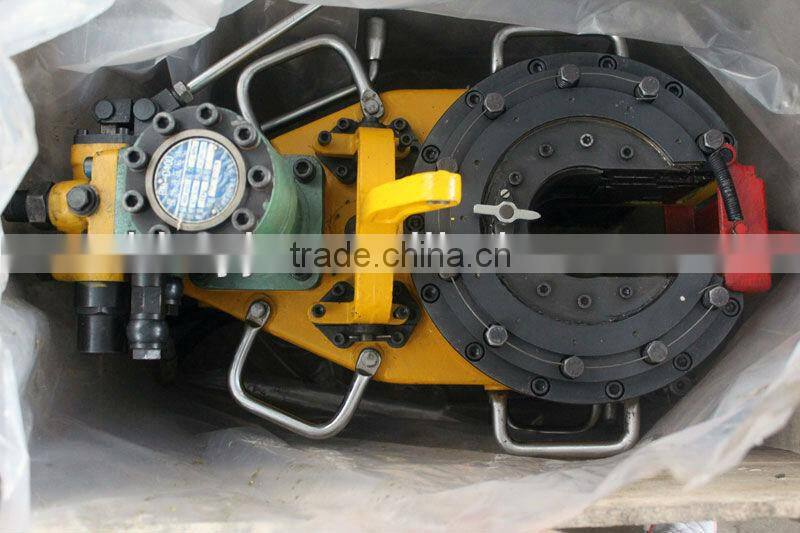

Good price ! XQ series hydraulic tubing and casing tong  XQ114/6YB

Specifications

1.Hydraulic power tong

 2.API 7K standard

3.Applied in making-up, breaking out for well drilling, repairing

 4.pipe range:23/8-51/2

Product Description

This series power tong is used for quick make-up/break-out in well

The tongs is equipped with hydraulic backup tong and use inner curved cam clamp

The tongs have the following features:

Clamp the tubing use corresponding dies, jaw set or die seat;

Torque control valve may be equipped according to customers' request;

Choose and buy lengthening guide pole assembly,

the backup tong can clamp the tubing body;

Torque control system may be equipped according to customers' request

Technical specification:

Pipe size range of master tong: 2 3/8 to 5 1/2 inches

Pipe size range of the backup tong: 2 3/8 to 6 1/8 inches

High gear rated torque: 2,600nm (1,918-foot/lbs)

Low gear rated torque: 12,000nm (8,851-foot/lbs)

High gear rated speed: 72r/minute

Low gear rated speed: 14r/minute

Rated operation pressure: 12mPa(1740Psi)

Maximum flow: 120L/minute (32gpm)

Dimensions: 1,024 x 582 x 539mm (40.3 x 22.9 x 21.2)
