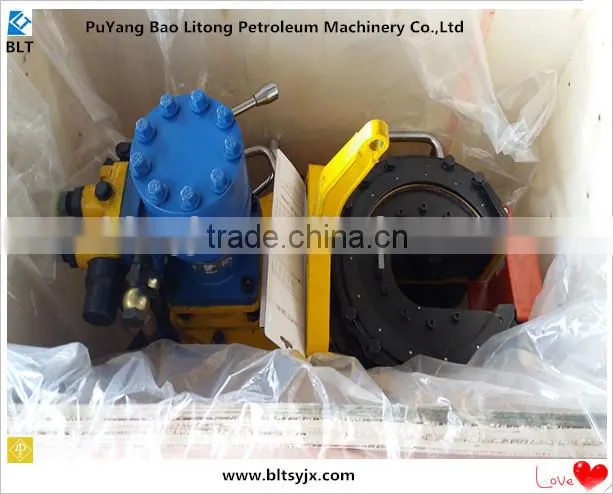

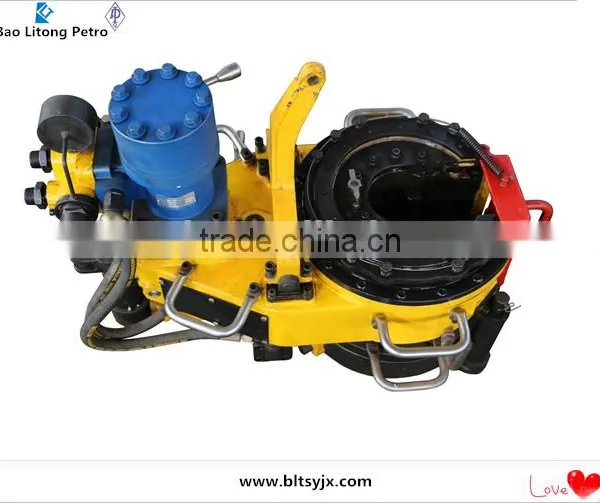

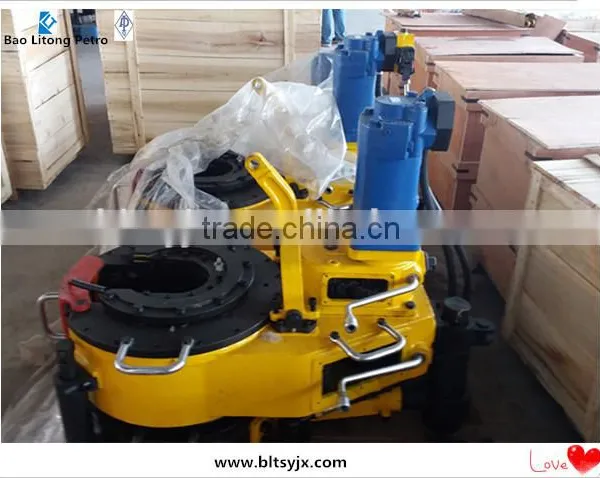

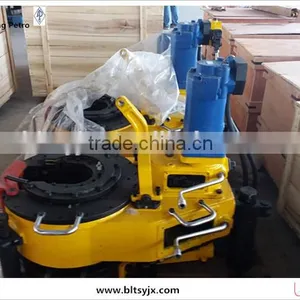

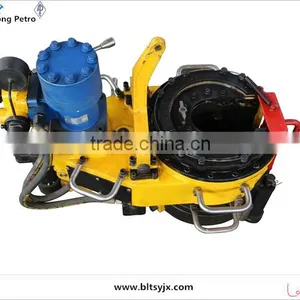

China manufacturer! XQ114/6YB hydraulic tubing and casing power tong with high quality
Specifications
1.Hydraulic power tong
2.API 7K standard
3.Applied in making-up, breaking out for well drilling,repairing
4.pipe range:2-3/8"to 5-1/2"
Product Description
This series power tong is used for quick make-up/break-out in well
The tongs is equipped with hydraulic backup tong and use inner curved cam clamp
The tongs have the following features:
Clamp the tubing use corresponding dies, jaw set or die seat;
Torque control valve may be equipped according to customers' request;
Choose and buy lengthening guide pole assembly,
the backup tong can clamp the tubing body;
Torque control system may be equipped according to customers' request
Technical specification:
Pipe size range of master tong: 2 3/8 to 5 1/2 inches
Pipe size range of the backup tong: 2 3/8 to 6 1/8 inches
High gear rated torque: 2,600nm (1,918-foot/lbs)
Low gear rated torque: 12,000nm (8,851-foot/lbs)
High gear rated speed: 72r/minute
Low gear rated speed: 14r/minute
Rated operation pressure: 12mPa(1740Psi)
Maximum flow: 120L/minute (32gpm)
Dimensions: 1,024 x 582 x 539mm (40.3 x 22.9 x 21.2)
Technical Parameters
Model |

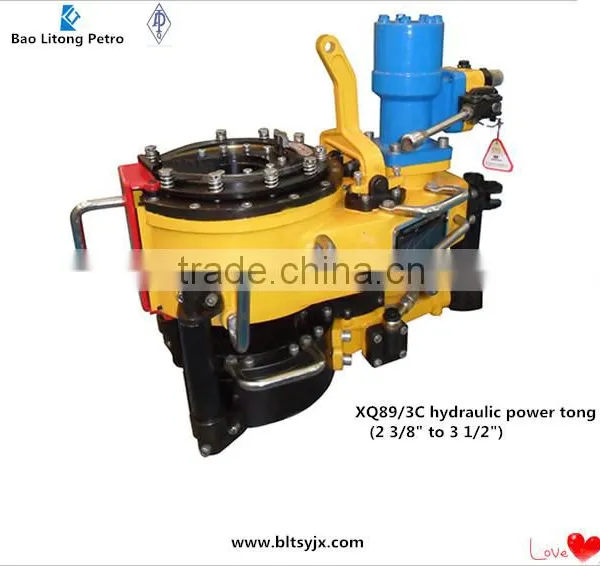

XQ89/3C |
XQ114/6YB |
XQ140/12YA |
XQ140/20Y |
Pipe size range of master tong |
φ60-89 23/8”-31/2” |
φ60-114 23/8”-41/2” |
φ73-140 27/8”-51/2” |
φ60-140 23/8”-51/2” |
Pipe size range of backup tong |
φ60-114 23/8”-41/2” |
φ60-114.5 27/8”-41/2” |
φ73-156 27/8”-31/2” |
φ60-156 23/8”-61/8” |
High gear rated torque |
1270N.m 937ft-lbs |
1650N.m 1217ft-lbs |
2600N.m 1918ft-lbs |
2300N.m 1696ft-lbs |
Low gear rated torque |
3300N.m 2434ft-lbs |
6070N.m 4477ft-lbs |
12000N.m 8851ft-lbs |
20000N.m 14751ft-lbs |
features | ||||
1.Name:Type planetary claws clamp | ||||
2.Type:XQ140/20Y,XQ140/12X,XQ114/6YB,XQ89/3C | ||||
3.adopt the braking belt, reliable braking | ||||
4.without changing any part within the application range | ||||
5.choose and buy lenghthening guide pole assembly,the backup tong can clamp the tubing body | ||||
6.torque control system may be equipped according to customer’s request | ||||
