Specifications
API 7K TQ Series Hydraulic Casing Tong1)Structure is simple and operation is safe
2) Std Rfc:SY/T5074, API 7K

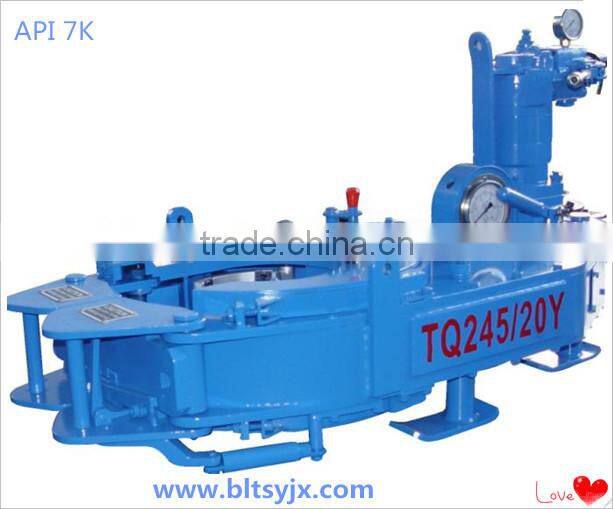

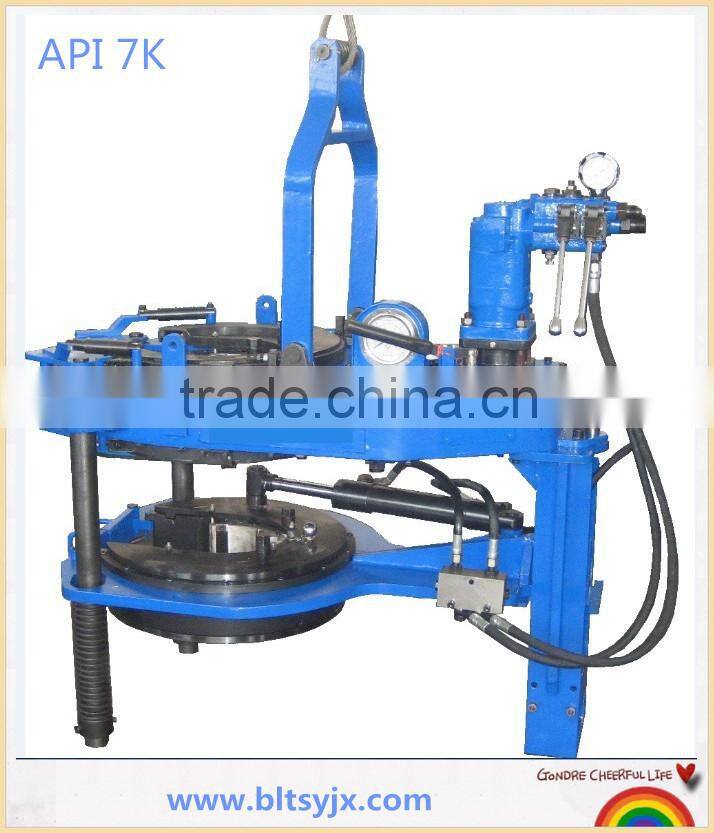

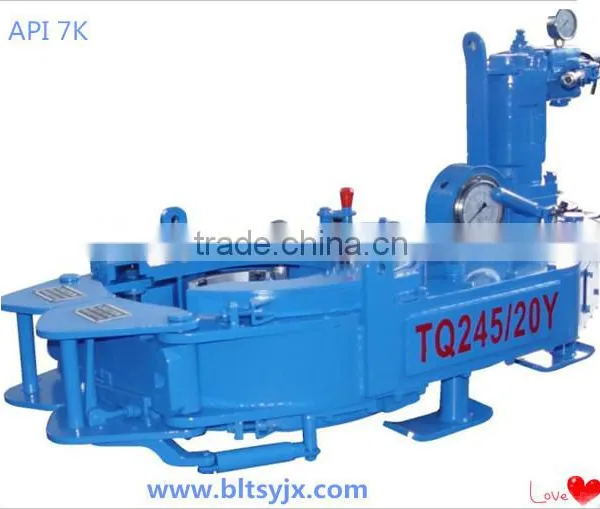

AP 7K TQ series casing tongs
TQ series of casing tongs are widely used for making-up or breaking-out pipes or casing in diameters of 4”~20” .
Tong head is designed as open and can freely clamp and escape from the casing. TQ Casing Tongs are safe ,reliable, and easy to handle with high mobility.
This series of casing tongs can be connected with computer controlling units as ideal well mechanical tools for surface operations in oil fields.
National Invention Patent of the tongs has been got.
The tongs are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment” .
Technical Parameters
Model |
TQ245/20 |
Pipe Size Range |
41/2″,5″,51/2″,7″,85/8″,95/8 casing |
High Gear Rated Torque |
2600N.m/1924ft-lbs. |
Low Gear Rated Torque |
20000N.m/14800ft-lbs. |
High Gear Rated Speed |
67r/min |
Low Gear Rated Speed |
9r/min |
Max. Flow |
120LPM@ 13.8 Mpa/31.7 GPM@ 2000 psi |
Dimension:L×W×H (mm) |
1499×711×1501mm (59"×28×59.1") |
Removed Quality(including Backup tong) |
820kg/1808lbs |
