Home > Products > API hydraulic power tong > TQ340-35Y hydraulic casing tong

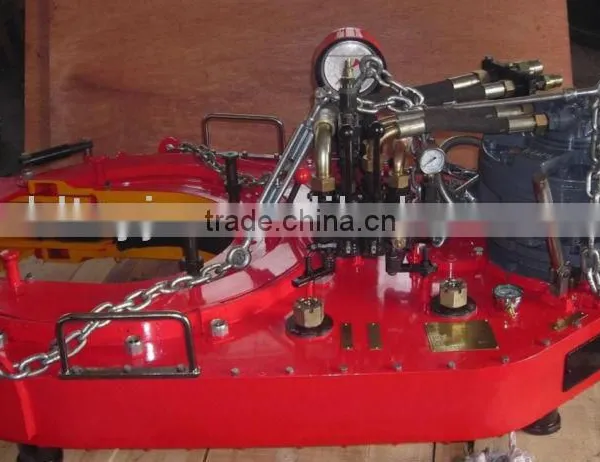

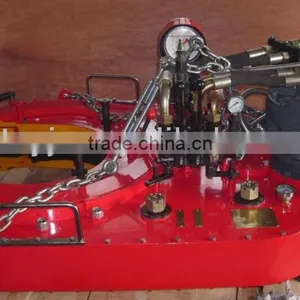

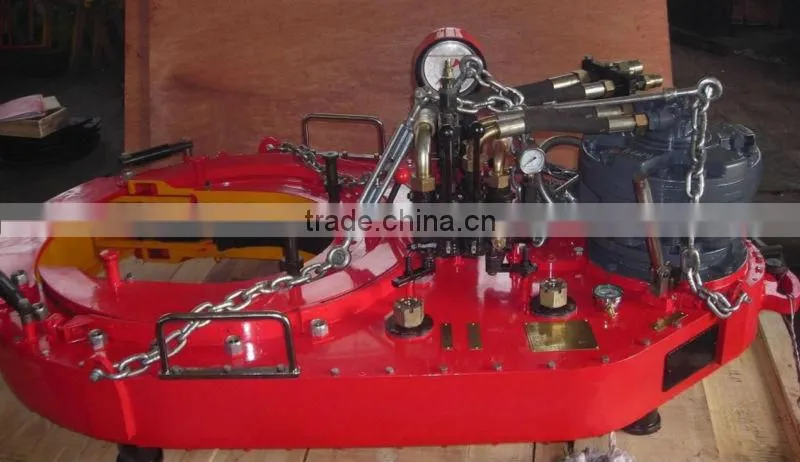

TQ340-35Y hydraulic casing tong
- 150 Set / Sets per Month
- QingDao or TianJin port
- T/T Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | BLT | Model Number: | TQ340-35Y |
Type: | Hydraulic Support | Machine Type: | Drilling Equipment | Certification: | API |
Material: | Carbon Steel | Processing Type: | Casting | Use: | Well Drilling |
Product Description
Specifications
1.Name:TQ series of hydraulic casing tongs2.Feature:Structure is simple and operation is safe
3.Std Rfc:SY/T5074, API 7K
TQ series of hydraulic casing tongs
TQ series of hydraulic casing tongs are widely used for making-up or breaking-out of casings or pipes. The series of casing tongs are wholly hydraulic driven. The tongs are configured with a large-torque motor and perform mechanical gearchange. Structure is simple and operation is safe. The casing tongs can be supplied with torque device to perform computer monitoring and managing on pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K “Specification for Drilling Equipment
Technical Parameters
Model | TQ178-16Y | TQ340-35Y | TQ508-70Y | TQ178-16 | TQ340-35 | TQ356-55 | ||
Size Range | mm | 101.6~178 | 114.3~340 | 244.5~508 | 101.6~178 | 114.3~340 | 114.3~356 | |
in | 4~7 | 4~13 | 9~20 | 4~7 | 4~13 | 4~14 | ||
Hydraulic System Max.Pressure | MPa | 18 | 21 | 20 | 18 | 18 | 16.6 | |
psi | 2610 | 3045 | 2900 | 2610 | 2610 | 2400 | ||
Hydraulic System Working Pressure | L/min | 110~160 | 110~170 | 110~170 | 110~160 | 110~160 | 110~160 | |
gpm | 29.3~42.7 | 29.3~45.4 | 29.3~45.4 | 29.3~42.7 | 29.3~42.7 | 29.3~42.7 | ||
Overall Size | mm | 1500×760×780 | 1580×900×860 | 2080×1280×760 | 1450×760×740 | 1580×900×880 | 1590×950×900 | |
in | 59×30×30.7 | 62.2×35.4×33.9 | 82×50.4×30 | 57×30×29.1 | 62.2×35.4×34.6 | 62.6×37.4×35.4 | ||
Weight | kg | 560 | 760 | 1550 | 580 | 780 | 850 | |
lb | 1230 | 1670 | 3410 | 1280 | 1720 | 1870 | ||
Max.Torque | High | kN.m | 2.4~3 | 4.0~5.6 | 8.4~10.7 | 2.4-3 | 2.5-3 | 3.4-4.5 |
Gear | ft.lbf | 1770~2210 | 2950~4130 | 6190~7890 | 1770~2210 | 1844-2210 | 2506-3319 | |
Low | kN.m | 15~18 | 26~35.2 | 48.9~70.5 | 14.5-17.5 | 32-40 | 45-57.4 | |
Gear | ft.lbf | 11060~13270 | 19175~25960 | 37244~52000 | 10694-12900 | 23600~29500 | 33190-42400 | |
Speed | High | rpm | 54~79 | 57—95 | 26~43.6 | 54—79 | 60~86 | 52—76 |
Gear | ||||||||
Low | rpm | 9~13 | 9~15 | 46.6 | 9~13.1 | 3.6~5.3 | 3.9~5.6 |
